Fenix LightingFenix LightingFenix Lighting
Best EDC

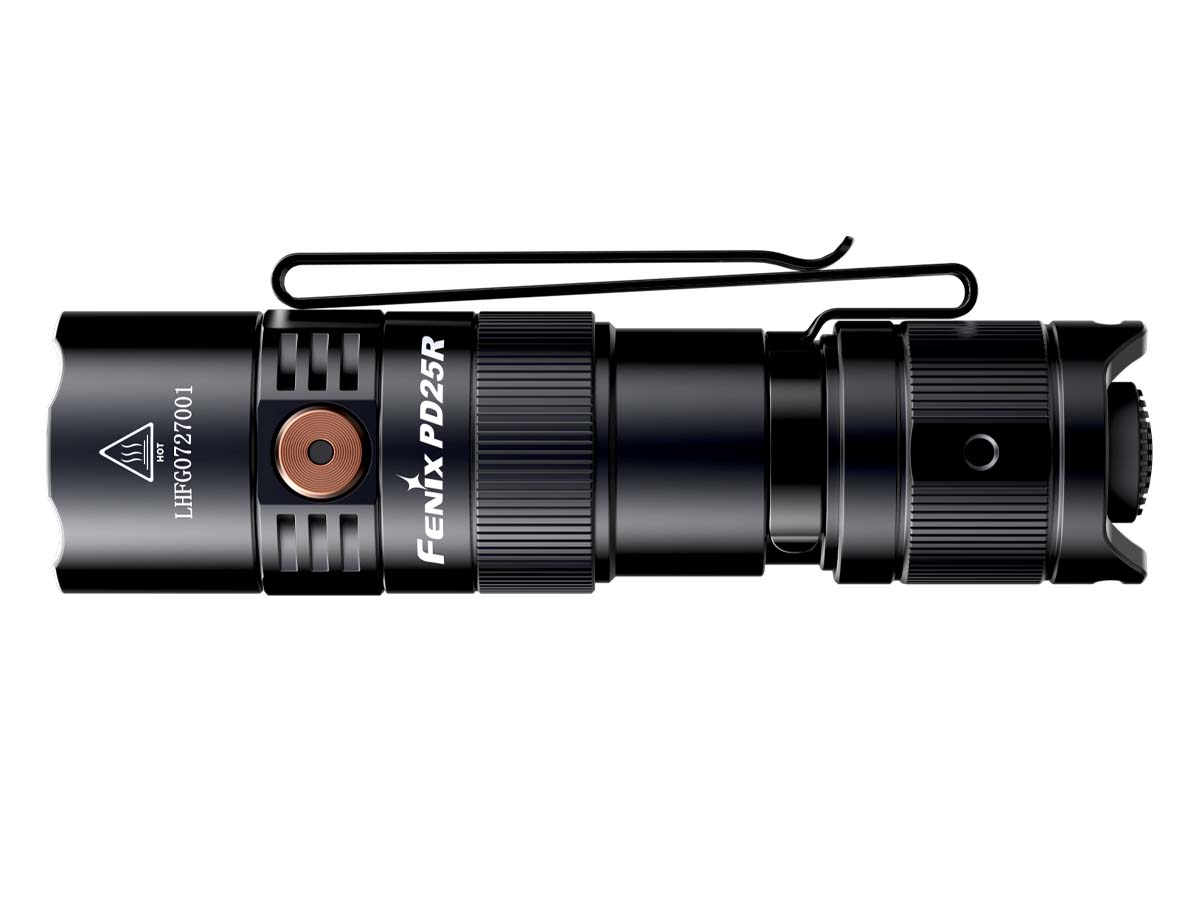

Fenix PD25R Rechargeable EDC Flashlight

$80.00 $59.95

Shipping calculated at checkout.
Out of stock

Max Lumens:
800

Modes:
6

Battery:
16340 or CR123A
View Details

For commercial orders and large purchases, contact us at (888) 775-9996 x6 or GET A QUOTE

WARNING. Be aware of counterfeit Fenix merchandise in the U.S. marketplace. READ MORE >>

SKU: PD25RSTBKN/ABarcode: 6942870309040N/A

Product Overview

The Fenix PD25R rechargeable EDC flashlight is the long-awaited upgrade the fans of the PD25 have long been waiting for. This flashlight produces a maximum 800 lumens at 820ft (250m) of distance from an included 16340 rechargeable Li-ion battery or one CR123A. Use the tail cap switch for on/off and the momentary-on function while the side switch on the head is for mode selection. The two-position body clip hold this light securely to pocket or pack in a body that is only 3.6” long—perfect for everyday carry. IP68 rating makes it dust and water proof. The Fenix PD25R rechargeable flashlight is perfect for on the job, outdoor adventures, or your daily EDC needs.

Specifications

Max Lumens: 800
Max Beam Distance: 820 feet (250 meters)
Max Runtime: 70 hours
Lighting Modes: Five brightness levels plus strobe
Bulb Type: Luminus SST20 LED
Size: Length: 3.62” (92mm) Diameter: 0.94” (24mm)
Weight: 2.75 oz. (78g) including battery
Battery: One included 16340 rechargeable li-ion battery or one CR123A lithium battery
Included: Fenix ARB-L16-700P rechargeable li-ion battery, USB Type-C charging cable, lanyard, 2 x spare O-rings, two-position body clip
Warranty: Limited Lifetime Guarantee from Fenix Lighting USA

More Information

  • Luminus SST20 LED with a lifespan of 50,000 hours.
  • Toughened ultra-clear glass lens with an anti-reflective coating.
  • USB Type-C charging.
  • Battery level indication and low voltage warning.
  • Instant power activation with momentary tactical tail switch; simple output selection with side switch.
  • Anti-roll and anti-slip body design; included two-position body clip.
  • Reverse polarity protection, to protect from improper battery insertion.
  • Made of durable A6061-T6 aluminum.
  • Premium type HAIII hard-anodized anti-abrasive finish.
Fenix PD25R Rechargeable EDC Flashlight specs chart

Runtime

Fenix PD25R Rechargeable EDC Flashlight runtime chart

PD25R Operating Instructions

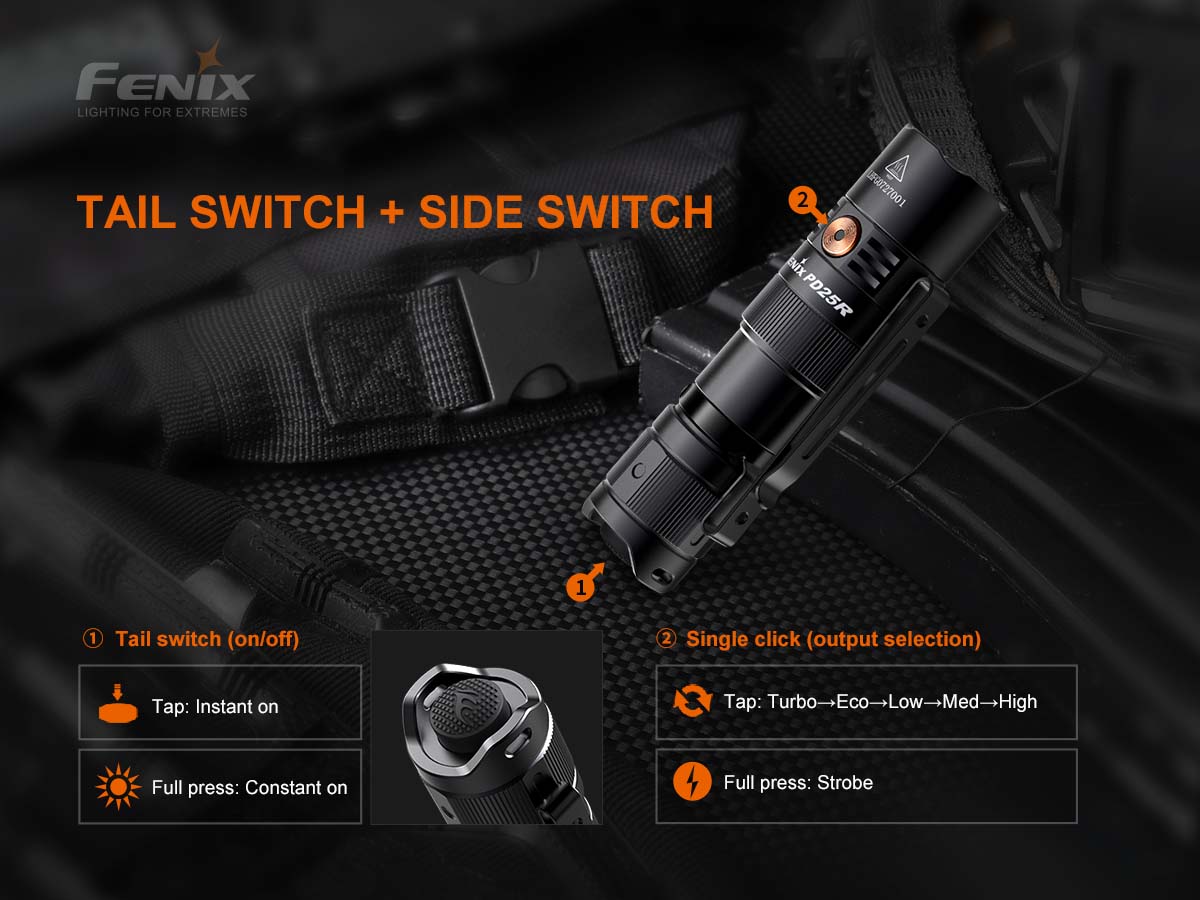

On/off

The tail switch is the tactical switch and the side switch is the functional switch. Tap the tactical switch to momentarily turn on the PD25R, release the light will go out.


Fully press the tactical switch to constantly turn on the light, press again to turn off the light.



Mode Switching

When the light is switched on, press and hold the functional switch for 0.5 seconds to enter strobe, single click again to turn back to general mode.



Output Selection

When the light is switched on, single click the functional switch to cycle through Turbo→ Eco→  Low→ Med→ High.



Intelligent Memory Circuit

The light memorizes the last selected output excluding strobe. When turned on again the previously used output of general mode will be recalled.



Battery Specifications

Type

Dimensions

Nominal Voltage

Usability



Fenix ARB-L16 Series

16340

3.6V

Recommended

√√

Non-rechargeable Battery (Lithium)

CR123A

3V

Usable(no charging)

 Rechargeable Battery (Li-ion)

16340

3.6V/3.7V

Caution*

* 16340 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes.



Battery Replacement

Unscrew the light tail and insert the battery with the anode side (+) towards the light head, then screw the light tail back on.



Charging the PD25R

  1. Switch off the light and loosen the light head to reveal the USB Type-C charging port and plug the USB A socket of the charging cable into an electrical outlet, then connect the USB Type-C socket of the charging cable to the light.
  2. The indicator will display red while charging and will turn green when fully charged.
  3. Once charging is completed, be sure to tighten the light head to maintain the dustproof and waterproof ability.

Note:

  1. The normal charging time of the included Fenix ARB-L16-700P is approximately 2 hours from depletion to full charging.
  2. Recharge a stored light every four months to maintain the optimum performance of the battery.
  3. The Eco output is available while charging (press and hold the functional switch for 0.5 seconds), but the charging time will be prolonged.

Battery Level Indication

Each time the light is turned on, the indicator will indicate the battery level and will last for 3 seconds.

  • Green light on: saturated 100% - 85%
  • Green light flashes: sufficient 85% - 50%
  • Red light on: poor 50% - 25%
  • Red light flashes: critical 25% - 1%

Note: This only works with Fenix ARB-L16-700P 16340 rechargeable Li-ion battery.



Intelligent Overheat Protection

The light will accumulate a lot of heat when used at relatively high modes for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user to reselect the modes.



Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Eco output mode, the battery level indicator blinks red to remind you to timely recharge or replace the battery.


Note: This only works with Fenix ARB-L16-700P 16340 rechargeable Li-ion battery.



Usage and Maintenance

  • Disassembling the sealed head can cause damage to the light and will void the warranty.
  • Fenix recommends using only a high-quality protected battery.
  • If the light will not be used for an extended period, remove the battery for proper storage.
  • Unscrew the tail cap or remove the battery to prevent accidental activation during storage or transportation.
  • Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
  • Periodic cleaning of the battery contacts improves the light's performance as dirty contacts may cause the light to flicker, shine intermittently or even fail to illuminate for the following reasons:
    A: Poor battery level.
    Solution: Recharge or replace the battery.
    B: The contact or contact point of the battery or flashlight is dirty.
    Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorized distributor.



Safe Use Warnings

  • Do place this light out of the reach of children!
  • Do NOT shine the light directly into the eyes of anyone!
  • Do NOT shine flammable objects at close range, to avoid burning objects or causing danger due to high temperature!
  • Do NOT use the light in inappropriate ways such as biting in the mouth, to avoid personal injury or life threats when the light or internal battery fails!
  • This light will accumulate a lot of heat while working, resulting in a high temperature of the flashlight shell. Pay attention to safe use to avoid scalding.
  • Turn off and lock the light or remove the battery from the light to prevent accidental activation when the light is placed in a closed and flammable environment such as pockets and backpacks!
  • The LED of this flashlight is not replaceable; so the whole light should be replaced when the LED reaches the end of its life.

FAQs about Fenix PD25R Flashlight



Q1. What is the product positioning of PD25R? And who are the target customers?

A: The Fenix PD25R flashlight is a portable flashlight with a hidden Type-C charging port. The PD25R blasts an amazing 800 lumens and a total distance of 250 meters. The PD25R is powered by a single 16340 rechargeable Li-ion battery (included) or can operate on a disposable CR123A Lithium battery. The boot-up battery level indicator lets you always know the battery's status. On/off and momentary-on are activated with the tactical tail switch and six lighting modes are selected with the side switch including a strobe mode. Carry the Fenix PD25R how you want - on a backpack, belt, or MOLLE system with the two-way body clip. Compact and built-tough with an IP68 dustproof and waterproof rating, this flashlight is perfect for just about any outdoor or work activity.



Q2. What are the key features and benefits of PD25R?

A:

Compact and lightweight, weighs only 78g

800 lumens output and 250 meters beam distance

TYPE-C charging port

Dual-directional pocket clip



Q3. What kind of LED is used in PD25R? And what are the beam angles?

A: A Luminus SST20 LED with a lifespan of 50,000 hours.

  Beam angles: spot beam angle 8.9°, spill beam angle 77.3°.



Q4: What is the working voltage range of PD25R?

A: 2.8V~4.2V



Q5. Does PD25R have overheated protection?

A: Yes. The light will accumulate a lot of heat when used on higher output levels for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user for the reselection of higher modes.



Q6. What battery does the PD25R support? Is it rechargeable? How long is the charging time?

A: It is powered by a 16340 rechargeable Li-ion battery and compatible with a CR123A Lithium battery. It is rechargeable through a hidden TYPE-C charging port. You can twist the neck of PD25R to see it. The indicator will display red while charging and will turn green when fully charged. The normal charging time of the included Fenix ARB-L16-700P is approximately 2 hours from depletion to full charging.



Q7. What’s the color temperature of PD25R?

A: Around 6000K.



Q8. What are the maximum power and maximum current of PD25R?

A:

Maximum power: 10W

Maximum current: 2.6A



Q9. Is the PD25R battery port waterproof?

A.  The light is waterproof so long as the battery port cover is completely tightened.



Q10. What should I do if the PD25R needs repair?

A: 1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.

2. 5-year free repair: Fenix will repair a light free of charge within 5 years (non-detachable light: 2 years, rechargeable battery and other accessories: 1 year) of purchase if problems develop with normal use.

3. Lifetime maintenance: If repair is required after 5 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.

4. If you need warranty service, fill out the warranty form at https://www.fenixlighting.com/pages/warranty-repairs to start your repair claim.
