Operating Instructions
On/off

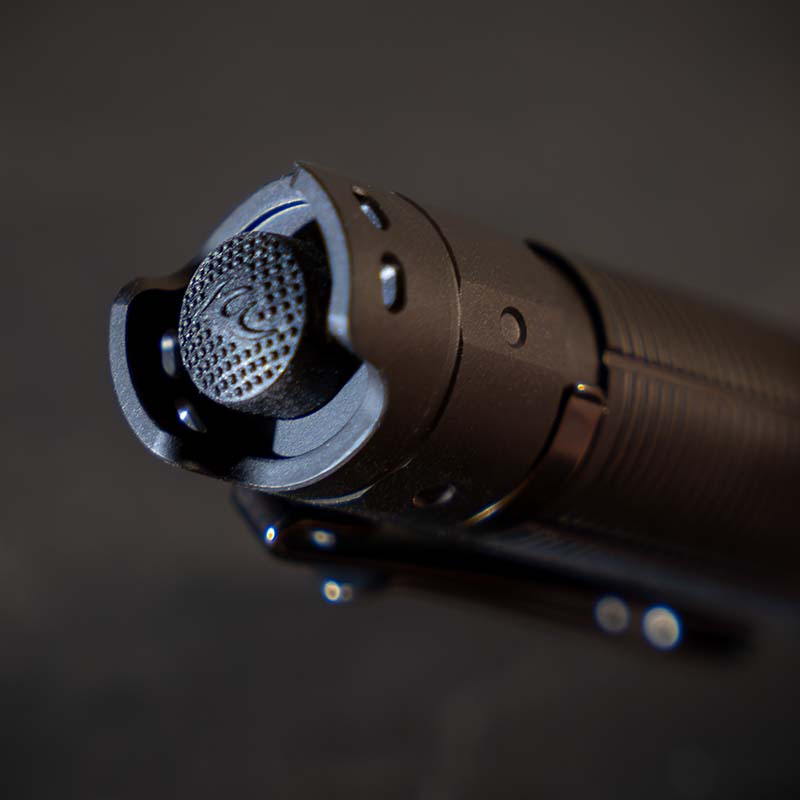

Tap the tactical tail switch to turn on the light momentarily, release it and the light will go out.
Fully press the tactical tail switch to turn on the light constantly, and fully press it again to turn off the light.
Mode Switching
With the light turned on, press and hold the side switch for 0.5 seconds to enter the Turbo mode. Single click the side switch to return to the General mode.
Output Selection
General mode: With the light turned on, single click the side switch to cycle through Eco→Low→Med→High→Ultrahigh.

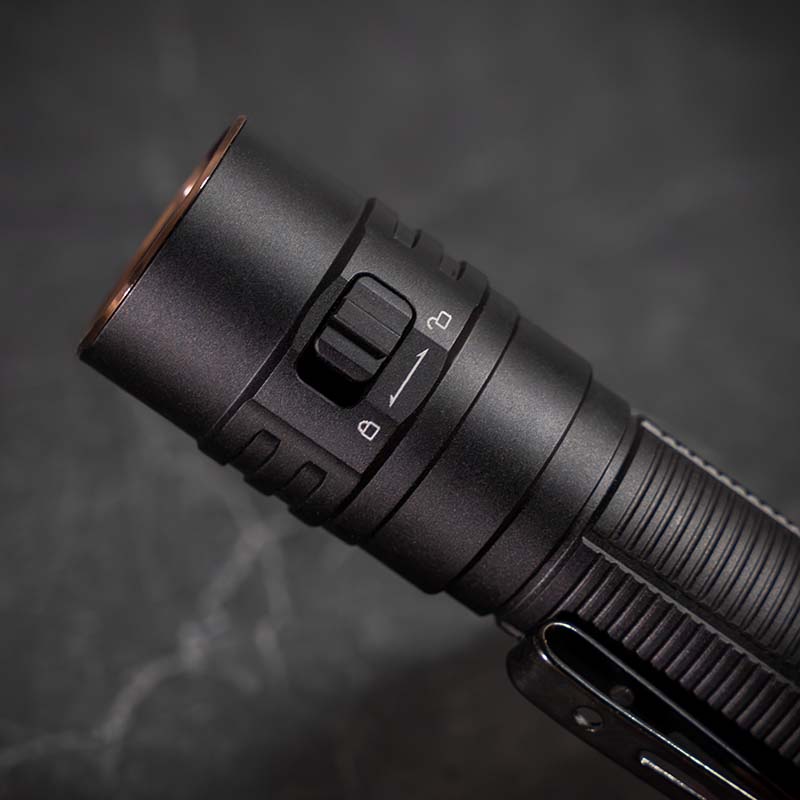

Lock/Unlock
- Lock: With the light turned off, set the lock switch to to lock the light. With the light turned on, fully press the tactical tail switch to turn off the light. Set the lock switch to to lock the light.
- Unlock: With the light locked, set the lock switch to to unlock the light.
Note: In locked status, clicking or pressing the tactical tail switch will not turn on the light. Please unlock it first.
Intelligent Memory Circuit
The flashlight automatically memorizes the last selected output excluding Turbo. When turned on again, the previously used output will be recalled.
Battery Specifications
Type | Dimensions | Nominal Voltage | Usability | |
Fenix ARB-L18 Series | 18650 | 3.6 V | Recommended | √√ |
Rechargeable Battery (Li-ion) | 18650 | 3.6 V | Caution* | ! |
Non-rechargeable Battery (Li-ion) | CR123A | 3.0 V | Banned | × |
Rechargeable Battery (Li-ion) | 16340 | 3.6 V | Banned | × |
Rechargeable Battery (LiFePO4) | 18650 | 3.2 V | Banned | × |
**16340/18650 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Using low-quality batteries or mishandling batteries (such as short-circuiting or overheating) could lead to combustion and jeopardize the safety of users and property. Any adverse effects resulting from the use of low-quality batteries are not covered by any Fenix warranty or liability. Using quality batteries with circuit protection will reduce the potential for combustion or explosion.

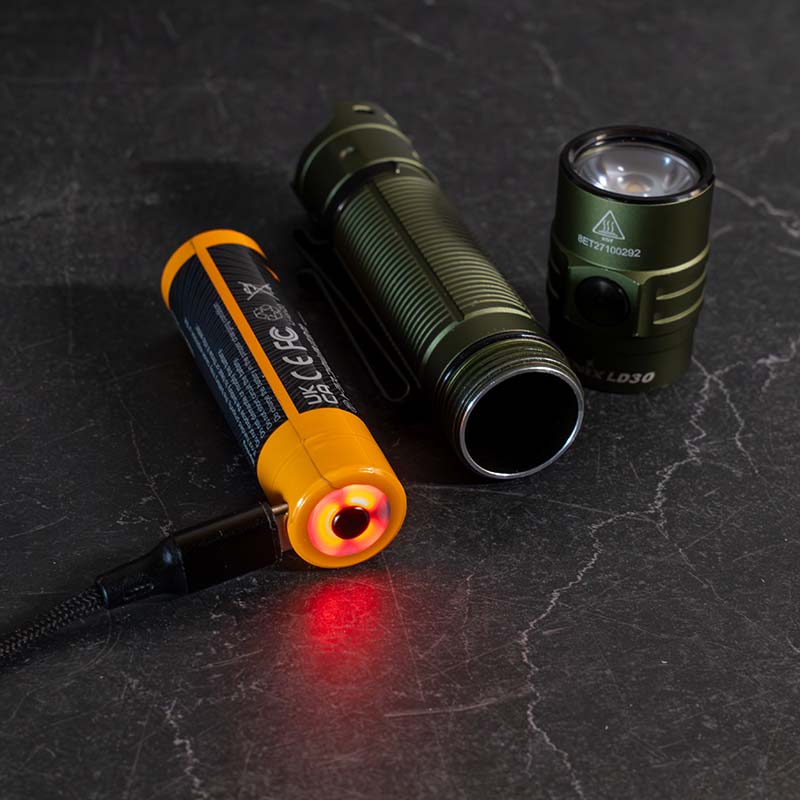

Battery Replacement
Unscrew the light body and insert the battery with the anode side (+) towards the light head, then screw the light body back on.

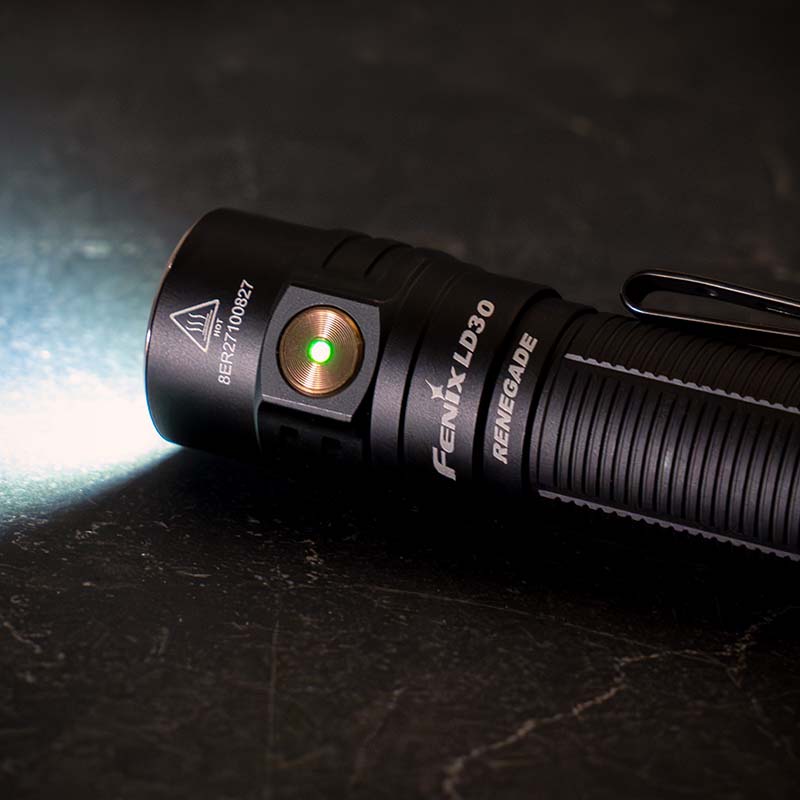

Battery Level Indication
Each time the flashlight is turned on, the indicator will show the current battery level and will last for 3 seconds.
Green light on: saturated 100% - 85%
Green light flashes: sufficient 85% - 50%
Red light on: poor 50% - 25%
Red light flashes: critical 25% - 1%
*This only works with a Fenix ARB-L18 Series battery.
Intelligent Overheat Protection
The flashlight will accumulate a lot of heat when used at high output levels for extended periods. When the flashlight reaches a temperature of 60°C/140°F or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C/140°F, the flashlight will gradually recall the preset output level.
Low-voltage Warning
When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output, the battery level indicator blinks red to remind users to replace or recharge the battery in a timely manner.
*This only works with a Fenix ARB-L18 Series battery.
Usage and Maintenance
Disassembling the sealed head can cause damage to the flashlight and will void the warranty.
Fenix recommends using an excellent quality battery.
If the flashlight will not be used for an extended period, remove the battery, or the flashlight could be damaged by electrolyte leakage.
Turn off and lock the flashlight or remove the battery to prevent accidental activation during storage or transportation.
Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
Periodic cleaning of the flashlight and battery contacts improves the flashlight's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
A: Poor battery level.
Solution: Recharge or replace the battery.
B: The contact or contact point of the battery or flashlight is dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
If the above methods don't work, please contact the distributor.
Warning
Do NOT place this flashlight in the reach of children!
Do NOT shine this flashlight directly into anyone’s eyes!
Do NOT place the light head near flammable objects, high temperatures can cause objects to overheat and become flammable/ignite!
Do NOT use this flashlight in inappropriate ways such as holding the unit in your mouth, doing so could cause serious personal injury or death if the flashlight or internal battery fails!
This flashlight will accumulate a significant amount of heat while operating, resulting in a high temperature of the light shell. Pay close attention to avoid burns!
Turn off and lock the flashlight or remove the battery to prevent accidental activation when the flashlight is placed in a closed and flammable environment such as pockets and backpacks!
The LEDs of this flashlight are not replaceable; so the whole flashlight will need to be replaced when any one of the LEDs reaches the end of its lifespan.
