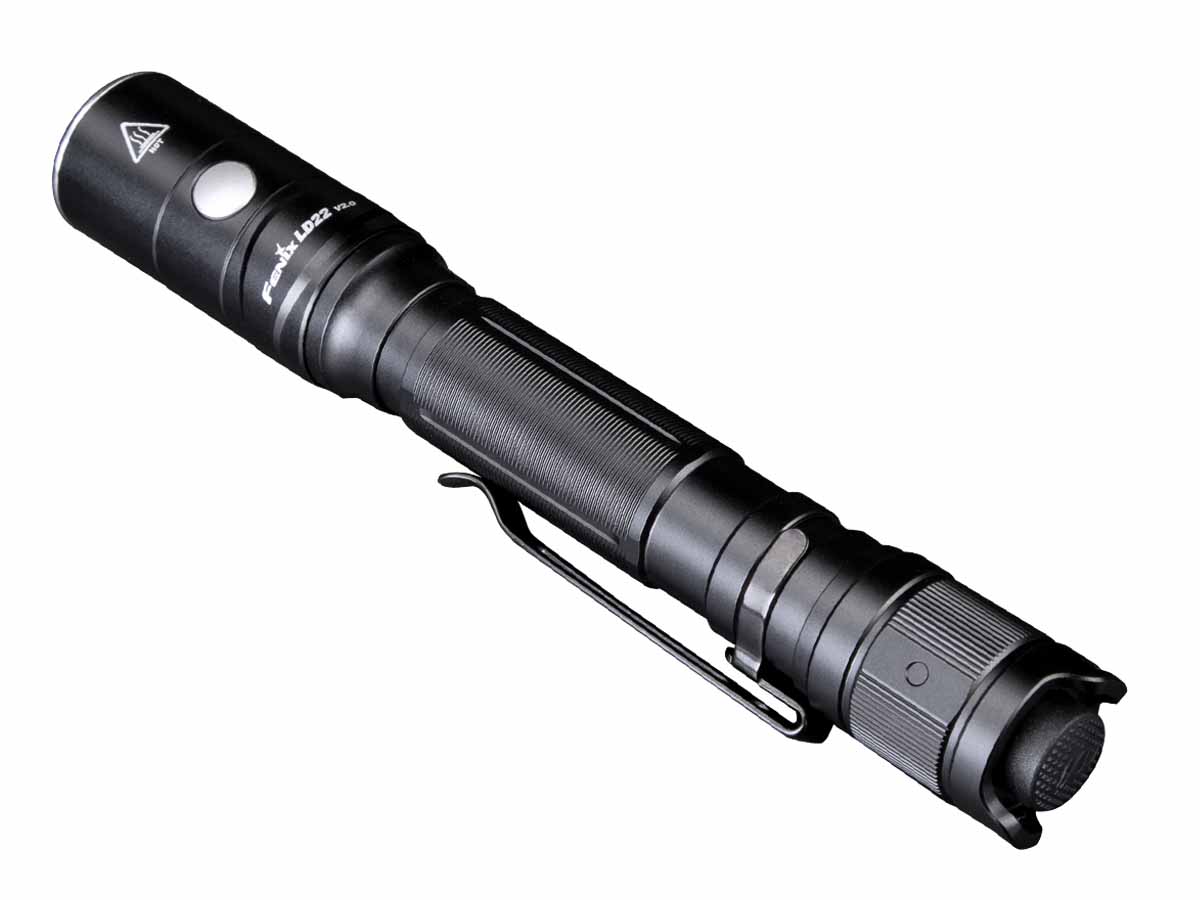

Operating Instructions for the LD22 V2.0 Flashlight

On/off

The tail switch is the tactical switch and the side switch is the functional switch. Tap the tactical switch to momentarily turn on the light, release the light will go out. Fully press the tactical switch to constantly turn on the light, press again to turn off the light.

Output Selection

With the light switch on, single click the functional switch to cycle through Eco →Low→Med →High→Turbo. (Turbo can not be activated if uses AA battery)

Flash Mode

With the light switched on, press and hold the functional switch for 0.5 seconds to enter flash mode, single click again to cycle through Strobe→SOS. Press and hold the functional switch again for 0.5 seconds to turn back to the previously used general mode.

Intelligent Memory Circuit

The light memorizes the last selected output excluding strobe. When turned on again the previously used output will be recalled.

Battery Specifications

* ARB-L14-1100U can be directly charged with the USB Type-C charging cable.

Battery Replacement Unscrew the light tail and insert the battery with the anode side (+) towards the light head, then screw the light tail back on.

Charging

1. Switch off the light and loosen the light tail to take out the ARB-L14-1100U and plug the USB A socket of the charging cable into an electrical outlet, then connect the USB Type-C socket of the charging cable to the battery.
2. The indicator will display red while charging and will turn blue when fully charged.
3. Once charging is completed, be sure to insert the battery with the anode side (+) towards the light head.

Intelligent Overheat Protection

The light will accumulate a lot of heat when used at relatively high modes for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user to reselect the modes.

Low-voltage Warning

When the voltage level drops below 3V, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When the voltage level is detected lower than 3V in Eco output, then the flashlight blinks 3 times every 5 minutes to remind you to timely recharge or replace the battery. To ensure normal use, the flashlight will not turn off automatically and will work till the battery level runs out. Note: This only works with Fenix ARB-L14-1100U rechargeable Li-ion battery and other usable Li-ion batteries.

LD22 V2.0 Usage and Maintenance

• Disassembling the sealed head can cause damage to the light and will void the warranty.
• Fenix recommends using only a high-quality protected battery.
• If the light will not be used for an extended period, remove the battery for proper storage.
• Unscrew the tail cap or remove the battery to prevent accidental activation during storage or transportation.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare．
• Periodic cleaning of the battery contacts improves the light's performance as dirty contacts may cause the light to flicker, shine intermittently or even fail to illuminate for the following reasons: A: Poor battery level. Solution: Recharge or replace the battery. B: The contact or contact point of the battery or flashlight is dirty. Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorized distributor.

Safe Use Warnings

• Do place this light out of the reach of children!
• Do NOT shine the light directly into the eyes of anyone!
• Do NOT shine flammable objects at close range, to avoid burning objects or causing danger due to high temperature!
• Do NOT use the light in inappropriate ways such as biting in the mouth, to avoid personal injury or life threats when the light or internal battery fails!
• This light will accumulate a lot of heat while working, resulting in a high temperature of the flashlight Pay attention to safe use to avoid scalding.
• Turn off and lock the light or remove the battery from the light to prevent accidental activation when the light is placed in a closed and flammable environment such as pockets and backpacks!

The LED of this flashlight is not replaceable; so the whole light should be replaced when the LED reaches the end of its life.

FAQs About Fenix LD22 V2.0 Flashlight

Q1. What kind of LED is used in LD22 V2.0? Does Fenix offer to replace LED?

A: Luminus SST20 WXS LED with a lifespan of 50,000 hours. Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.

Q2. What is the color temperature of LD22 V2.0?

A: around 6000K.

Q3. What is the working voltage of LD22 V2.0?

A: Voltage: 3.0V - 6.8V. And the ultimate working voltage range is 1.9V - 8.4V.

Q4. Is LD22 V2.0 rechargeable? How long is the charging time?

A: LD22 V2.0 can't be directly charged, while the included Fenix ARB-L14-1100U battery features a USB Type-C charging port; the anode side displays red when charging and turns blue when charging is completed. The charging time is 4 hours.

Q5. How to prevent accidentally activate the LD22 V2.0?

A: Unscrew the tail cap or remove the battery to prevent accidental activation during storage or transportation.

Q6. Why does the LD22 V2.0 downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons:

Intelligent Overheat Protection

The light will accumulate a lot of heat when used at relatively high modes for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user to reselect the modes.

2. Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output, the flashlight blinks 3 times every 5 minutes to remind you to timely recharge or replace the battery.

Q7. Why does the LD22 V2.0 happen to flicker?

A: The reasons that may cause the light to flicker, shine intermittently or even fail to illuminate:

1. Poor battery level.

Solution: Recharge or replace the battery.

2. The contact or contact point of the battery or flashlight is dirty.

Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorized distributor.

Q8. What kind of battery can be used in LD22 V2.0?

A: Fenix ARB-L14-1100U is recomended. Compatible with 2 x AA Alkaline batteries and NiMH Batteries. Do not mix batteries of different brands, sizes, capacities or types. Doing so may cause damage to the flashlight or the batteries being used.

Q9. What are the optional accessories for LD22 V2.0?

A: AOD-S V2.0 Diffuser Tip, AOF-S Filter Adapter, AOT-S Traffic wand, ALB-10 Bike Mount.

Q10. What should I do when the LD22 V2.0 needs repair?

A: 1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.

2. 5-year free repair: Fenix will repair a light free of charge within 5 years (non-detachable light: 2 years, rechargeable battery and other accessories: 1 year) of purchase if problems develop with normal use.

3. Lifetime maintenance: If repair is required after 5 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.

4. If you need warranty service, fill out the warranty form at https://www.fenixlighting.com/pages/warranty-repairs to start your repair claim.
