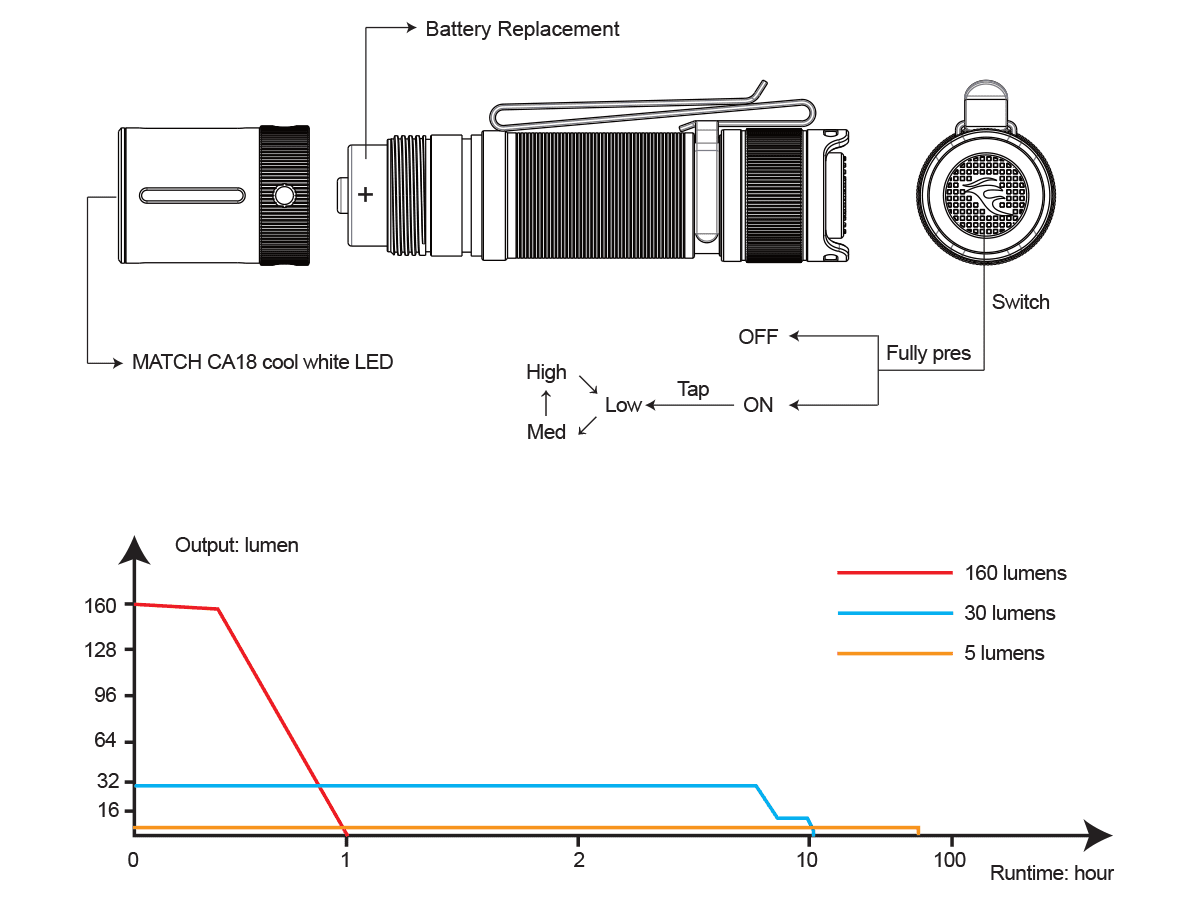

On/off for the E12 V2.0 AA Flashlight

Fully press the tail switch to turn on/off the light.

Output Selection

With the light switched on, tap the tail switch to cycle through Low→Med→High.

Intelligent Memory Circuit

The light does not memorize the previously used output level, each time it is turned on, Low mode will be activated.

Battery Specifications

Battery Replacement

Unscrew the light tail and insert the battery with the anode side (+) towards the light head, then screw the light tailback on.

Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Low output is reached. To ensure normal use, the flashlight will not turn off automatically and will work till the battery runs out completely.

Usage and Maintenance of the E12 V2.0 AA Flashlight

• Disassembling the sealed head can cause damage to the light and will void the warranty.
• Fenix recommends using an excellent quality battery.
• If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
• Unscrew the tail cap half a turn or take out the battery to prevent accidental activation during storage or transportation.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare．
• Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons: A: The battery needs replacing. Solution: Replace battery (Ensure battery is inserted according to the manufacturer’s specifications). B: The threads, PCB board contact or other contacts are dirty. Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorized distributor.

Warning

• This flashlight is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the flashlight directly into anyone's eyes.
• All information provided in this manual is subject to change without prior notice.

FAQs about E12 V2.0 Flashlight

Q1. What is the product positioning of E12 V2.0? And who are the target customers?

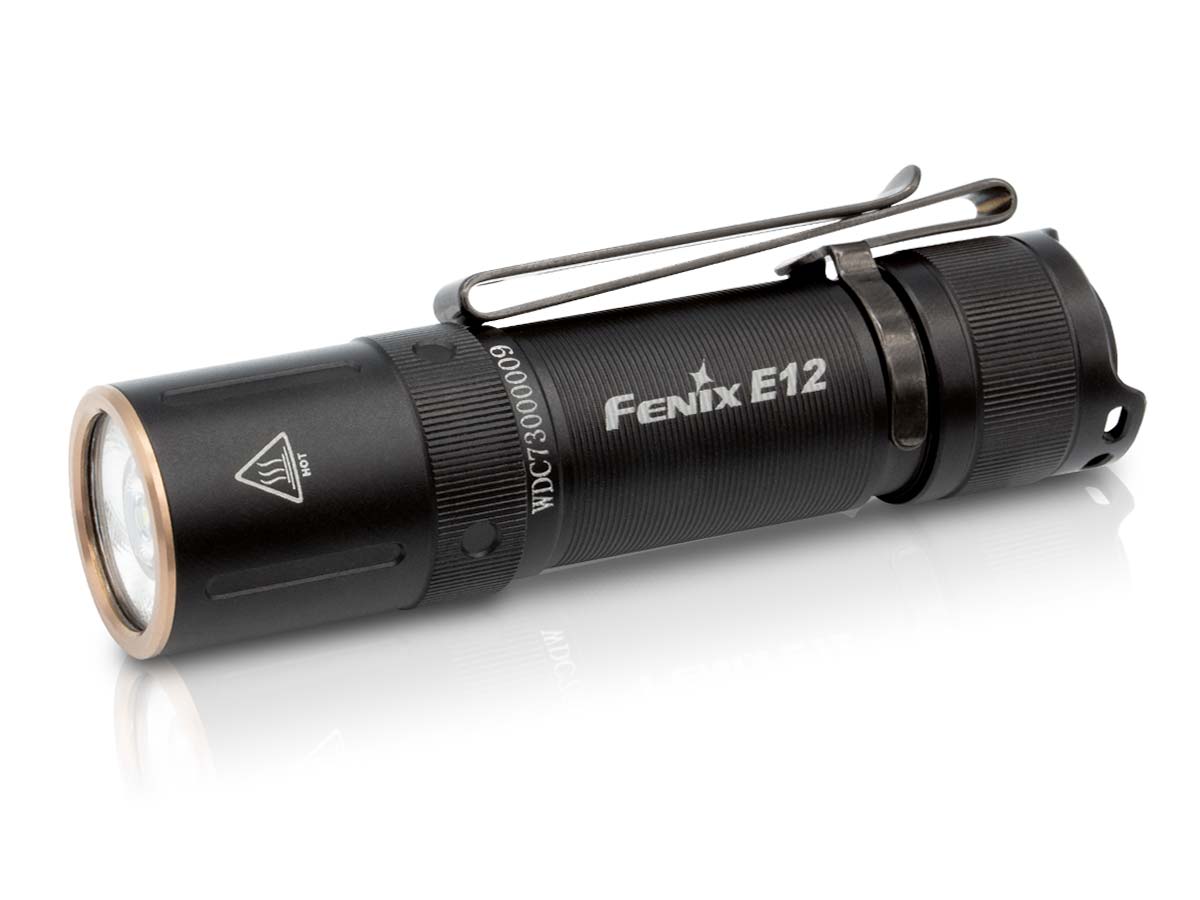

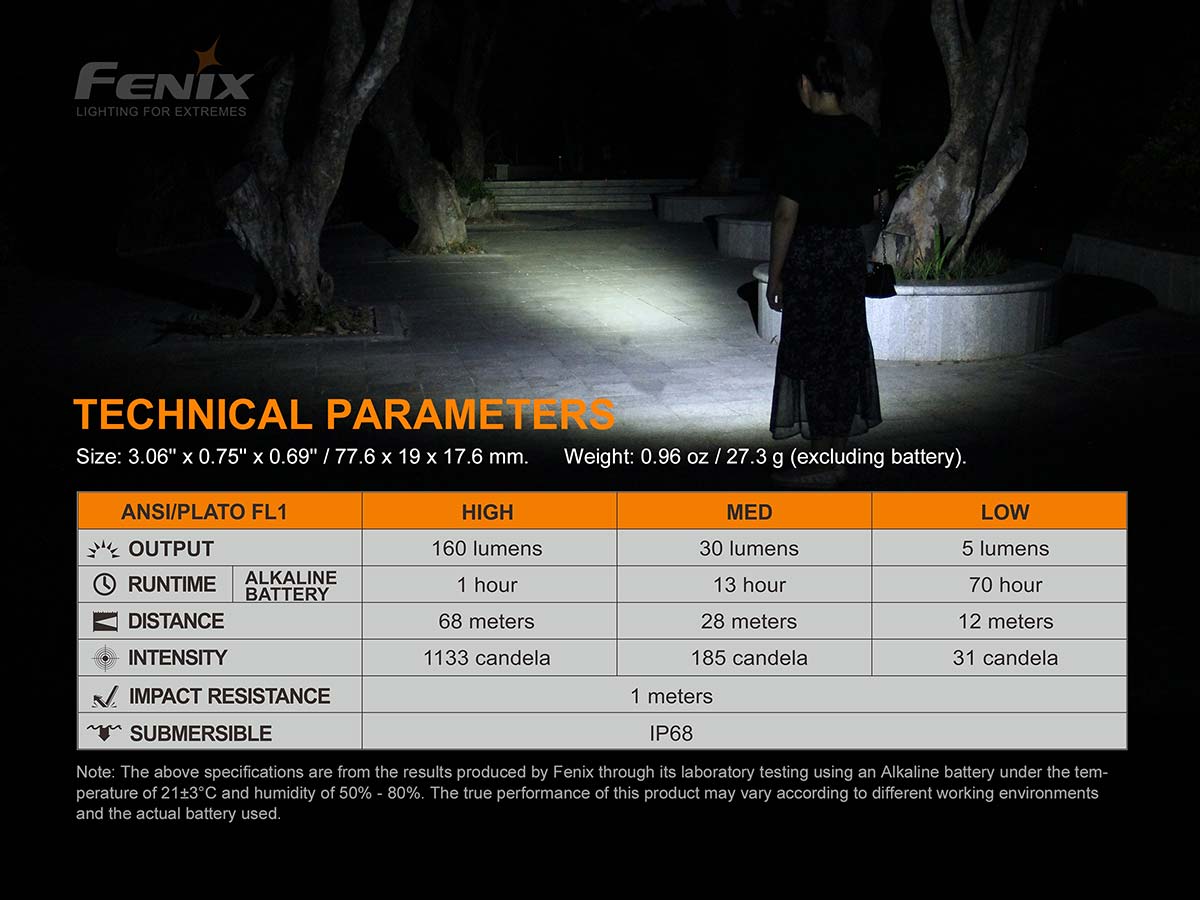

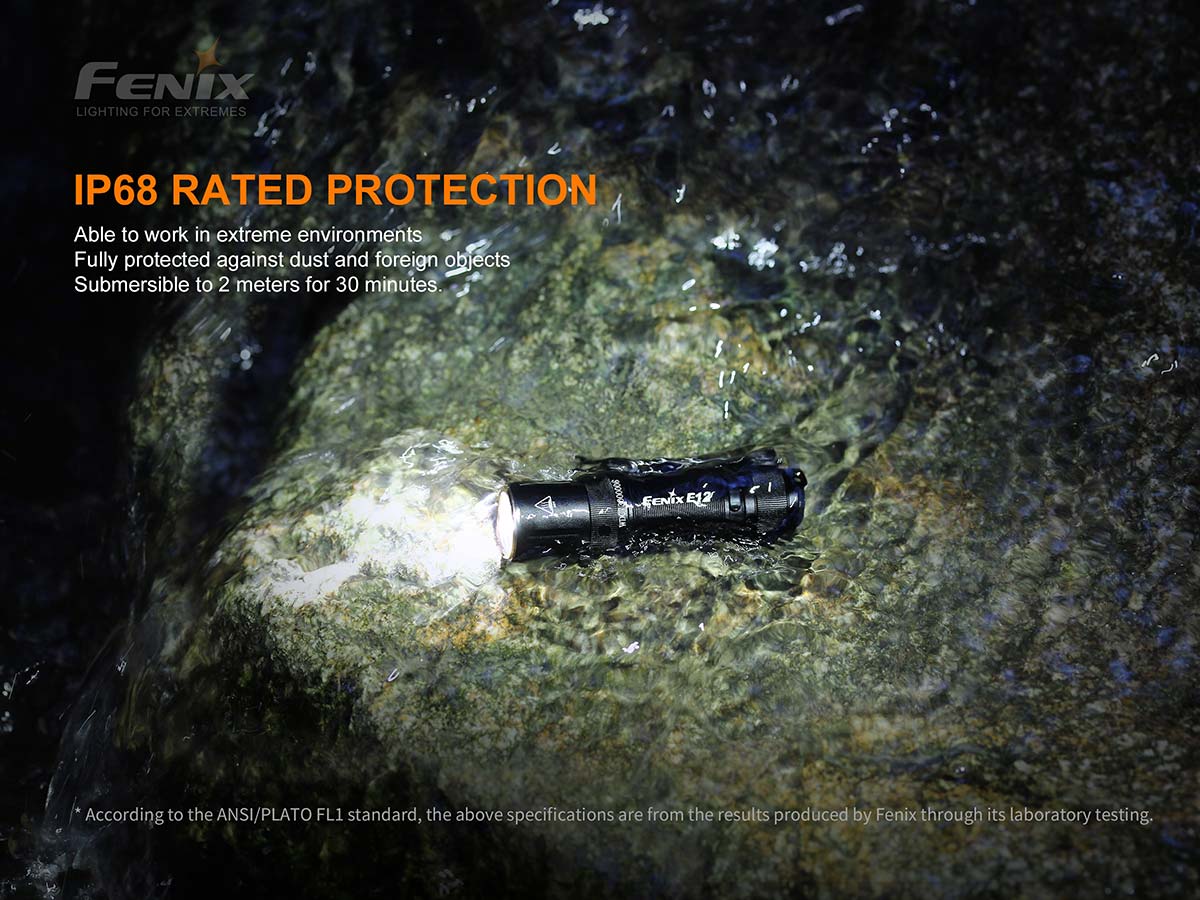

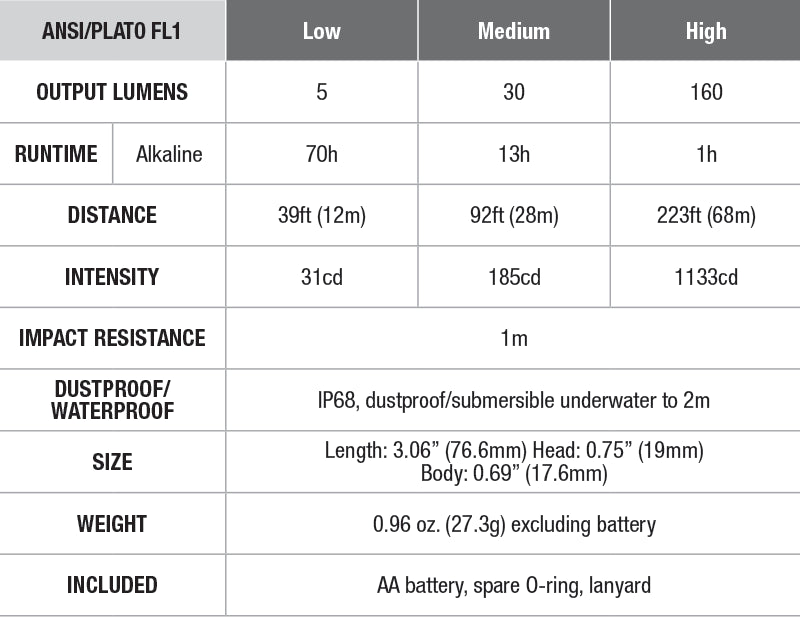

A: The Fenix E12 V2.0 is an ultra-compact EDC flashlight. Powered by a single AA battery, the lightweight Fenix E12 V2.0 flashlight has a maximum output of 160 lumens and can throw a beam up to 68 meters to meet your lighting needs. This exquisite flashlight is finely made of durable A6061-T6 aluminum, and the ultrathin optical lens is processed with the same coating as automobile lights. Battery power will not be consumed in standby status, which provides sufficient power for each use. Additional highlights include two-position body clip, tail standing capability and IP68 rated protection. Whether you’re on the job or on the go, the Fenix E12 V2.0 ultra-compact flashlight is there to light the way. It is the perfect hybrid of size and functionality.

Q2. What are the key features and benefits of E12 V2.0?

A: 1) Included a AA battery ((Ni-MH/Alkaline)).

  2) Automobile ultrathin optical lens coating process.

  3) No standby current.

  4) One-handed operation with the single tail switch.

  5) Two-position body clip and tail standing for varying conditions.

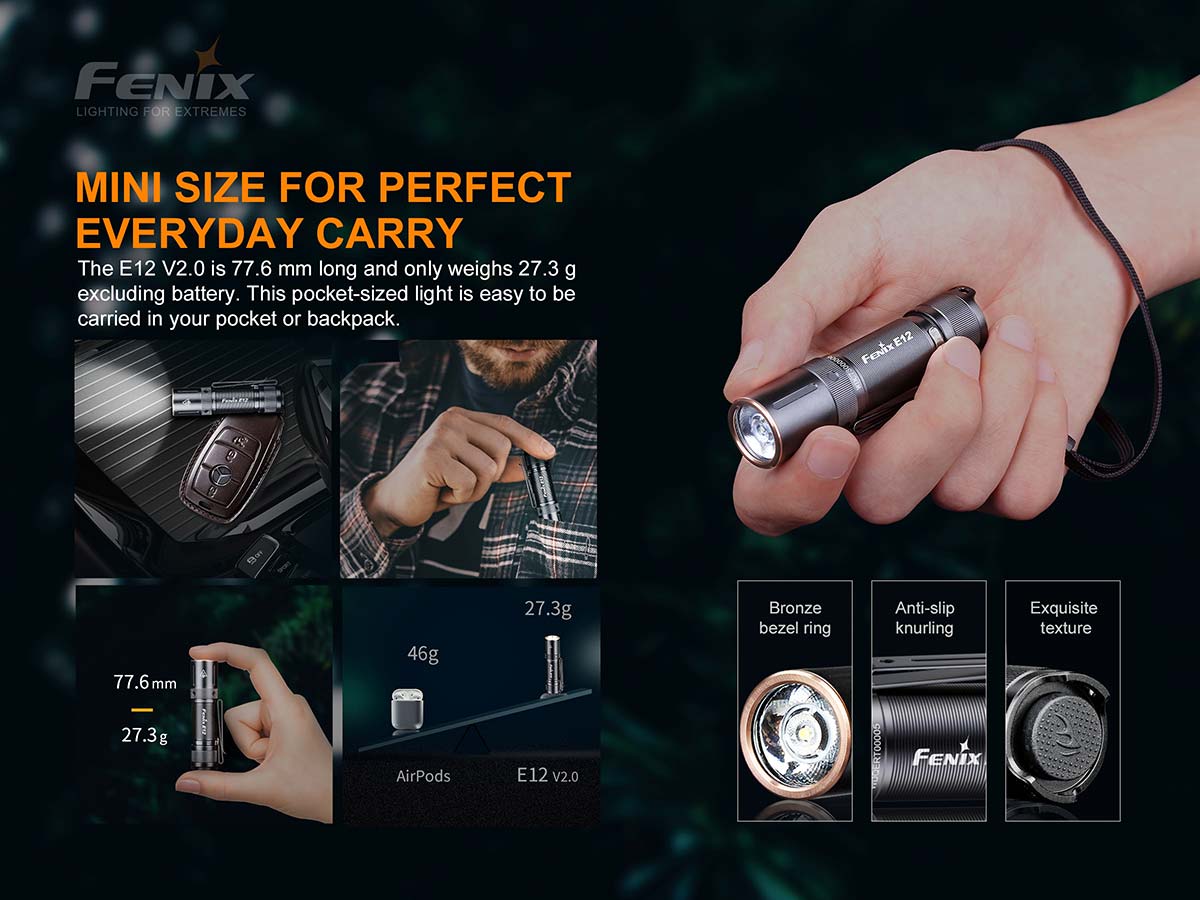

  6) Size: 3.06'' x 0.75'' x 0.69'' / 77.6 x 19 x 17.6 mm.

Q3. What kind of LED is used in E12 V2.0?

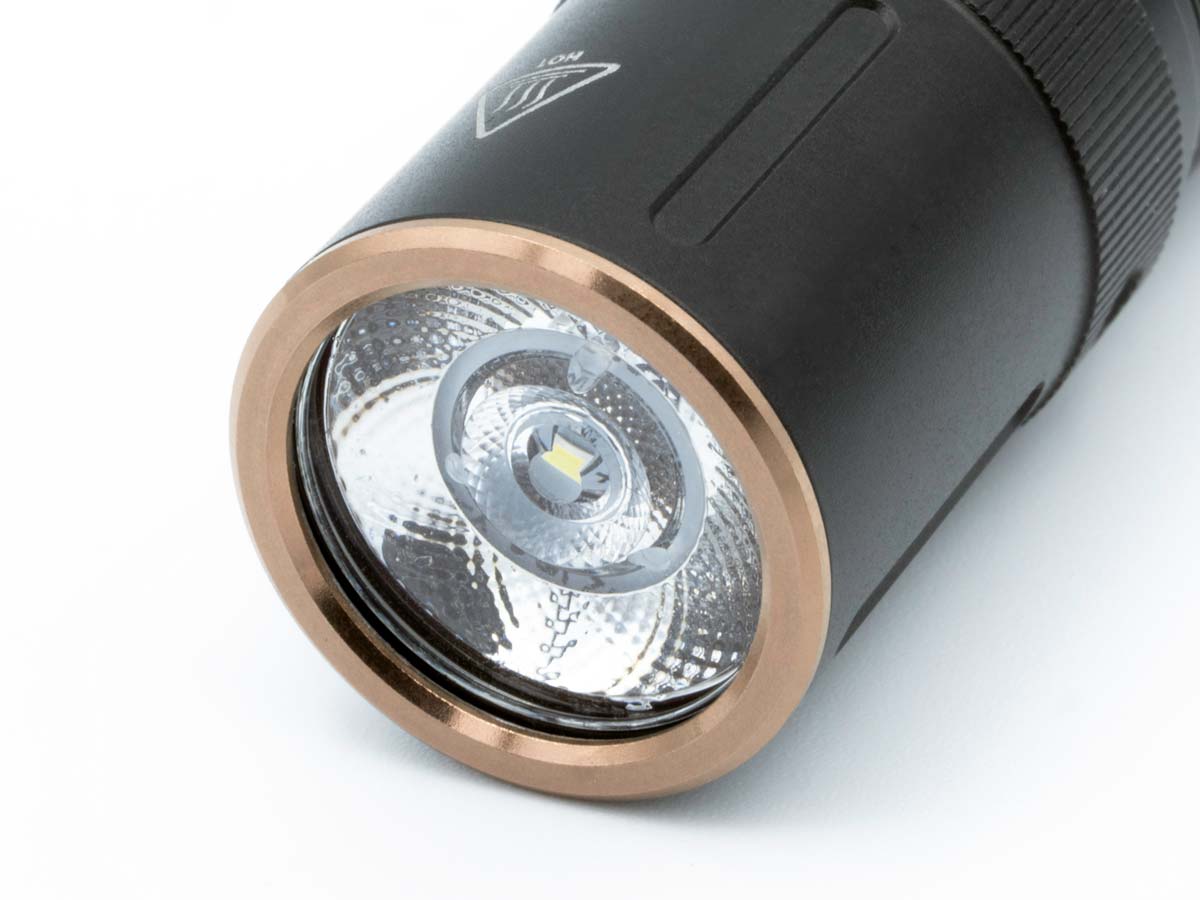

A: MATCH CA18 cool white LED.

Q4. Does E12 V2.0 have overheat protection?

A: No, it does not have.

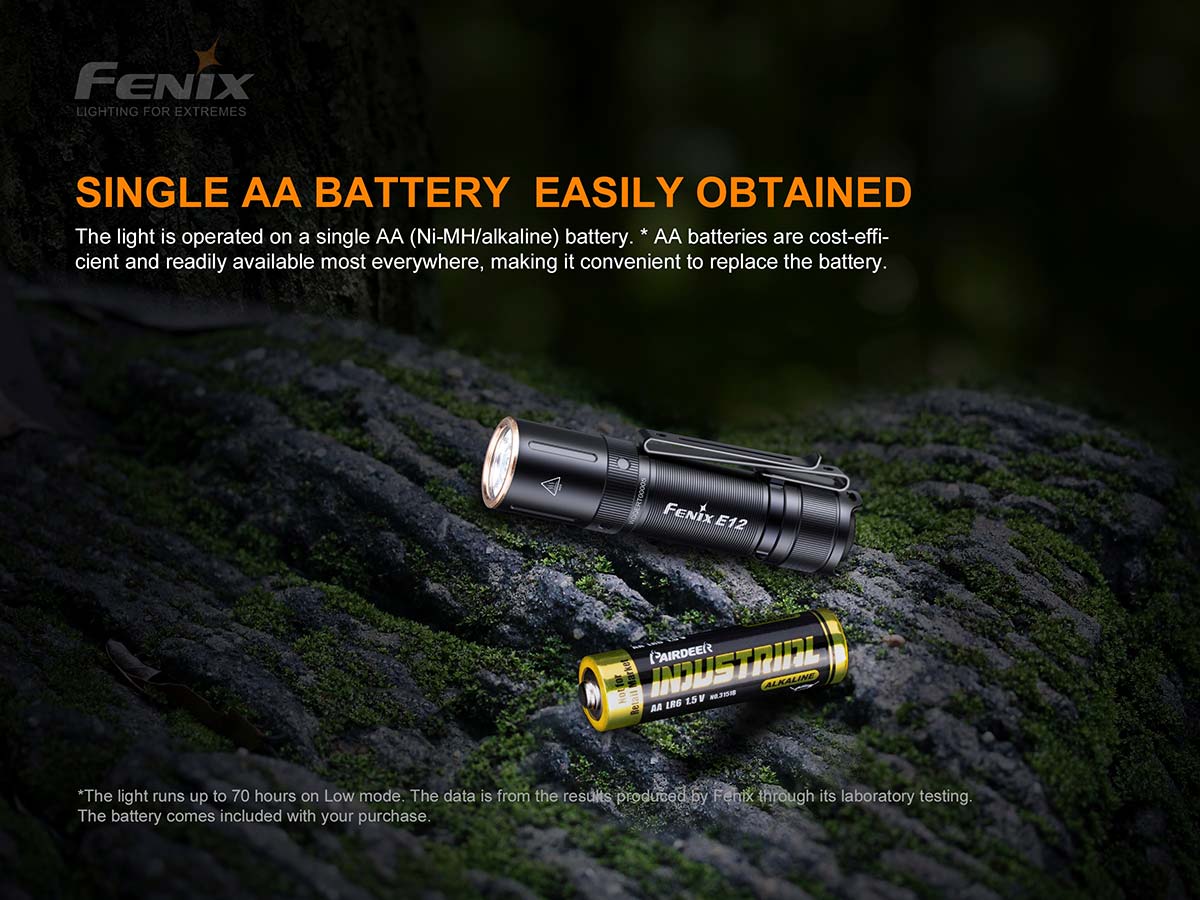

Q5. What battery does the E12 V2.0 support?

A: It supports AA battery (Ni-MH/Alkaline).

Q6. What are the accessories that can be used with the E12 V2.0?

A: Lanyard and Spare O-ring.
