Warning

• Do NOT place this light in the reach of children!
• Do NOT shine the light directly into the eyes or skin of anyone! ◎Do NOT place light head near flammable objects, high temperatures can cause objects to overheat and become flammable/ignite!
• Do NOT use the light in inappropriate ways such as holding the unit in your mouth, doing so could cause serious personal injury or death if the light or internal batteries fail!
• This light will accumulate a significant amount of heat while operating, resulting in a high temperature of the light shell. Pay close attention to avoid burns.
• Take out the batteries to prevent accidental activation during storage or transportation.
• The LEDs of this light are not replaceable; so the whole light should be replaced when any of the LEDs reaches the end of its lifespan.
• The laser classification of this light is Class 3B. Watch out for reflected beams from glass and shiny surfaces.

Operating Instructions

On/off

On: with the light locked, rotate the toggle switch clockwise to turn on the light; with the light unlocked and turned off, press and hold the electronic switch for 0.5 seconds to turn on the light.

Off: rotate the toggle switch counterclockwise to “” or press and hold the electronic switch for 0.5 seconds to turn off the light.

Mode switching

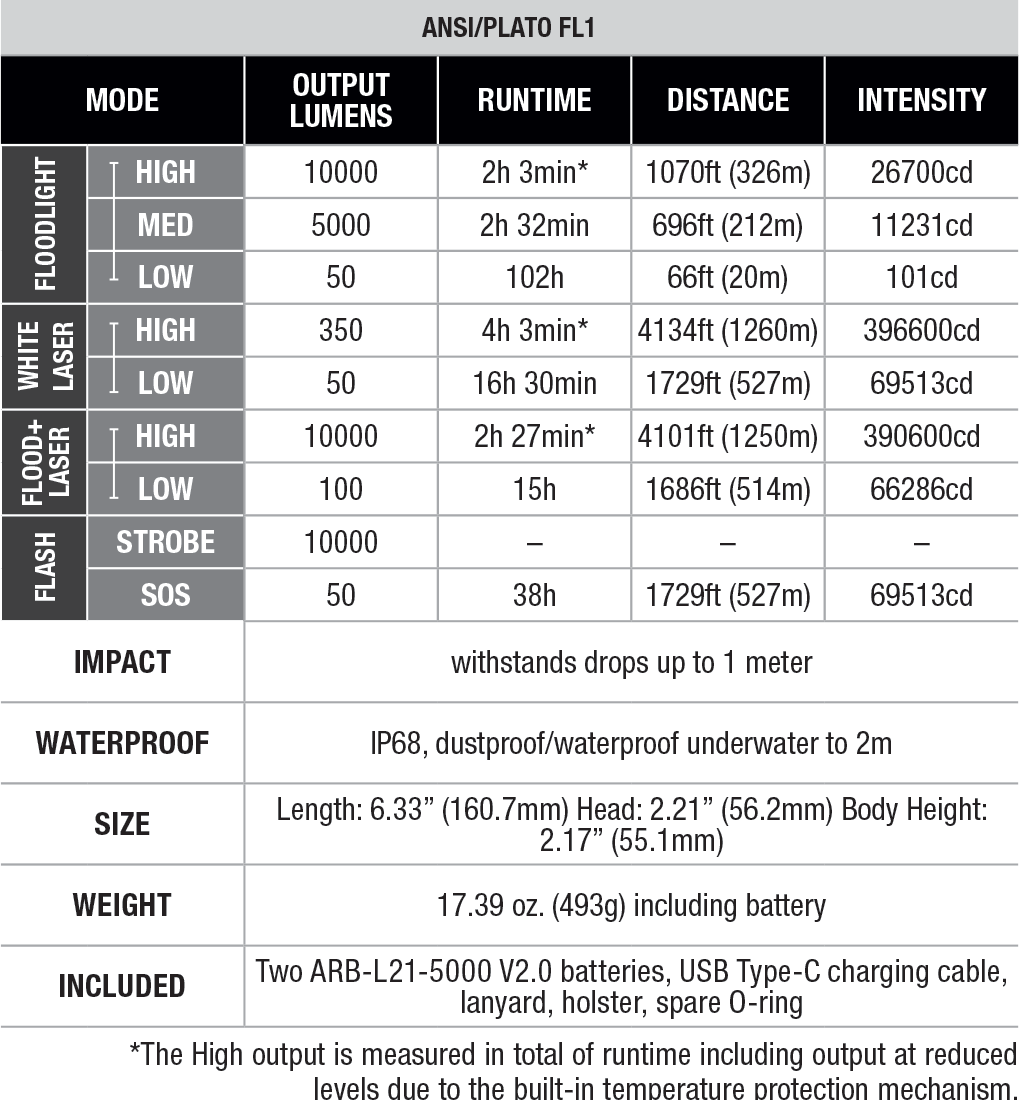

The flashlight features four modes: Floodlight mode, Laser mode, Floodlight+Laser mode, and Special mode.

1. Rotate the toggle switch clockwise with the light locked or press and hold the electronic switch for 0.5 seconds with the light turned off and unlocked to turn on the light and enter the Floodlight mode. Single click the electronic switch to cycle through Floodlight mode→Laser mode→Floodlight+laser mode.
2. With the light unlocked, press and hold the electronic switch for 1.2 seconds to enter the Special mode, and press and hold the electronic switch for 1.2 seconds again to return to the Floodlight mode, Laser mode, or Floodlight+Laser mode.

Output Selection

1. Floodlight mode, Laser mode, Floodlight+Laser mode: For these three modes, rotate the toggle switch clockwise to change their brightness from low to high and rotate the toggle switch counterclockwise to change their brightness from high to low.
2. Special mode: Single click the electronic switch to cycle through Strobe→SOS.

Lock/unlock

Lock: with the light unlocked, rotate the toggle switch counterclockwise to “”to turn off and lock the light.

Unlock: with the light locked, rotate the toggle switch clockwise to unlock and turn on the light.

*In locked status, the light will not respond to any operation except for battery level checking.

Intelligent Memory Circuit

When the light is unlocked, it will automatically memorize the previously used mode. When turned on again, the previously used mode will be recalled.  When the light is locked, it will not memorize the previously used mode. When unlocked and turned on again, the light will be activated in Floodlight mode.

*Note: the light does not memorize the previously used mode and output when it is in Special mode.

Battery Specifications

**21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Using low-quality batteries or mishandling batteries (such as short-circuiting or overheating) could lead to combustion and jeopardize the safety of users and property. Any adverse effects resulting from the use of low-quality batteries are not covered by any Fenix warranty or liability. Using quality batteries with circuit protection will reduce the potential for combustion or explosion.

Battery Replacement

Unscrew the light head, insert the batteries with the cathode side(-) towards the inner side, then screw the light head back on.

*Only half of the LEDs can be powered with a single battery inserted. In Floodlight mode, only the Med output can be operated. The brightness levels of Laser mode remain unaffected.

Charging

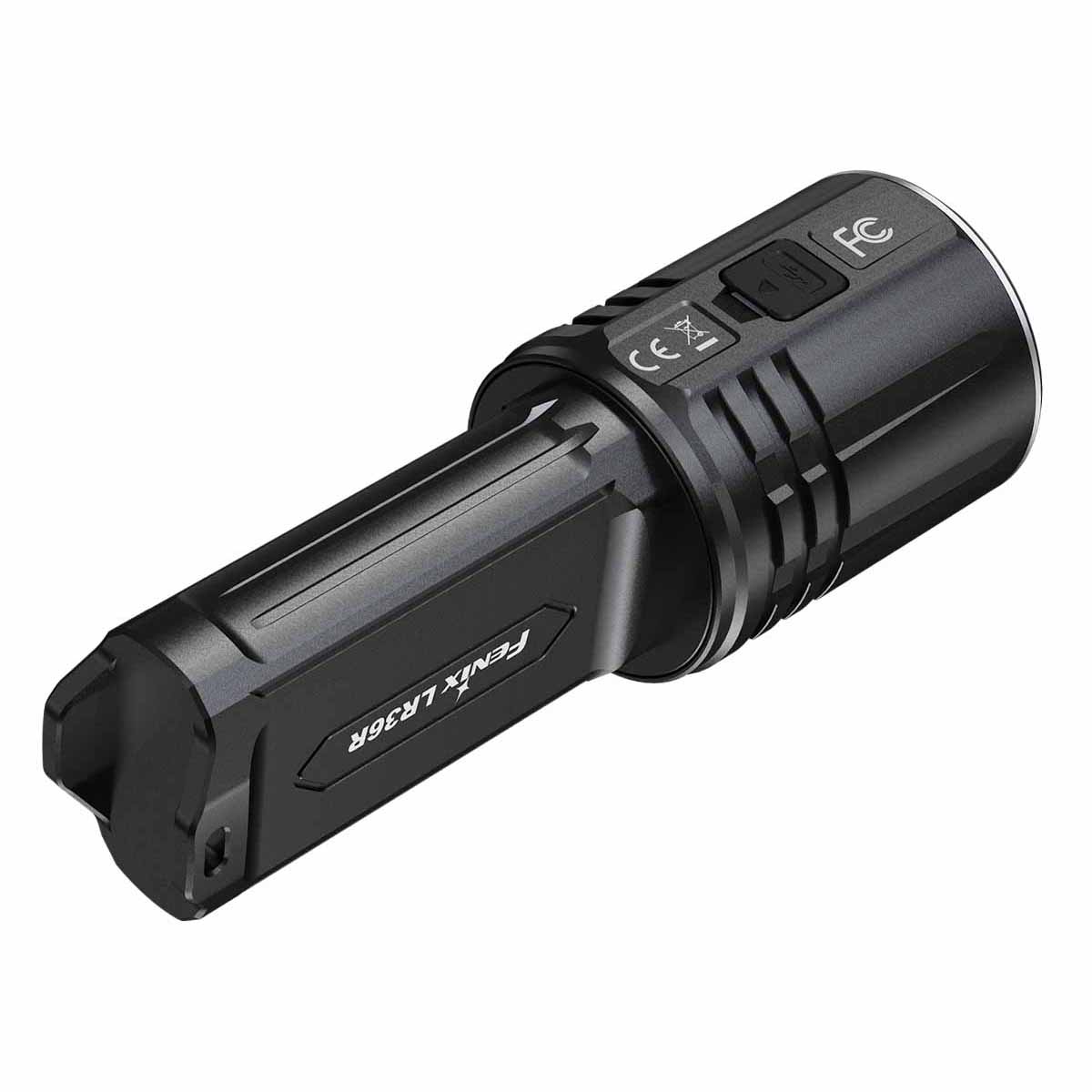

1. Turn off the light and open the anti-dust cover to reveal the USB Type-C charging port. Plug the USB A socket of the charging cable into an electrical outlet, then connect the USB Type-C socket of the charging cable to the light.
2. When charging, the OLED display will automatically light up to show the battery percentage and a charging icon to indicate the charging status. The normal charging time is about 3.5 to 4 hours from depleted to fully charged.
3. Charging the flashlight without any battery inserted is strictly prohibited.

*Only the Low output of Floodlight mode can be operated while charging.

Intelligent Brightness Downshift Function

On/off

On: with the light locked, press and hold the electronic switch for 6 seconds. The OLED display will show "ON", the light will blink twice in the Low output of Floodlight mode and then go out, indicating that this function is enabled.

Off: with the light locked, press and hold the electronic switch for 6 seconds. The OLED display will show "OFF", the light will blink eight times in the Low output of Floodlight mode, indicating that this function is disabled.

Intelligent downshift

When the light head is close to an illuminated object (about 2.36''/60 mm) for more than 1 second, the flashlight will automatically downshift to the lowest brightness level of the current mode to avoid potential danger/burns caused by high temperatures. When the light head is away from the illuminated object for more than 1.2 seconds, the flashlight automatically recalls the previously used brightness level.

*This function operates only when the brightness level in Floodlight mode exceeds 540 lumens, or 270 lumens with one battery inserted.

OLED Smart Display

Each time the light is turned on, the OLED display will light up and show the Fenix icon for 1 second. Subsequently, it will constantly display the current brightness level, remaining runtime, and remaining battery level.

With the light turned off, single click the electronic switch to check the battery status. Single click once again and the OLED display will go out, or without any operation the OLED display will last for 3 seconds.

Note:

1. It will take approximately one second for the flashlight to recalculate the remaining runtime after the current output/mode is changed. "CHECK" will appear on the OLED display during this time instead of the remaining runtime.
2. Only an empty battery icon will appear on the OLED display if the battery level is 5% or lower. In this state, only the Low output of Floodlight mode can be operated.
3. The remaining runtime will be reloaded if the batteries are reinserted or if their status is changed. The loading time is 5 to 8 seconds, with "LOADING" appearing on the OLED display. The light cannot be operated during loading.

Intelligent Overheat Protection

The light will accumulate a lot of heat when used for extended periods. When the light reaches a temperature of 55°C/131°F or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 55°C/131°F, the light will gradually recall the preset output level.

Low Voltage Warning

When the voltage level drops below the preset level, the light is programmed to downshift to a lower brightness level until the Low output of Floodlight mode is reached. When this happens in the Low output of Floodlight mode, the empty battery icon will appear on the OLED display to remind you to recharge and will continue to do so until the battery runs out.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the light and will void the warranty.
• Fenix recommends using excellent quality batteries.
• If the light will not be used for an extended period, remove the batteries, or the light could be damaged by electrolyte leakage or battery explosion.
• Lock the light or remove the batteries to prevent accidental activation during storage or transportation.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
• Periodic cleaning of the battery contacts improves the light's performance as dirty contacts may cause the light to flicker, shine intermittently or even fail to illuminate for the following reasons:
  A: The light is locked.
  Solution: Rotate the toggle switch clockwise to unlock and turn on the light.
  B: Poor battery level.
  Solution: Replace or recharge the batteries.
  C: The threads, PCB board contact or other contacts are dirty.
  Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorized distributor.

What kind of LEDs are used in LR36R? Does Fenix offer to replace LED?

Utilizes twelve Luminus SST 25 and one CT1-Mini; with a life span of 50,000 hours each.

Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.

What is the color temperature of LR36R?

A: 6000K - 6700K.

What is the working voltage of LR36R?

A: 2.8 V - 4.2 V.

Are there risks when using the LR36R’s laser?

A: Lasers are radiant light waves that can pose certain risks to human eyes and skin if not handled properly. The laser classification of this flashlight is Class 3B. Watch out for reflected beams from glass and shiny surfaces.

Is LR36R rechargeable? How long is the charging time?

A: Yes. The two included ARB-L21-5000 V2.0 batteries can be charged through the USB Type-C charging port. When charging, the OLED display will automatically light up and show the current battery percentage and a charging icon to indicate the charging status. The normal charging time is about 3.5 - 4 hours from depleted to fully charged. Only the Low output of Floodlight mode can be operated while charging.

How to prevent accidental activation the LR36R?

A: Lock: with the light unlocked, rotate the toggle switch counterclockwise to “”to turn off and lock the light. In locked status, the light will not respond to any operation except for battery level checking.

Unlock: with the light locked, rotate the toggle switch clockwise to unlock and turn on the light.

Why does the LR36R downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons:

1. Intelligent Overheat Protection
   The flashlight will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature.
2. Low-voltage Warning
   When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until the lowest brightness level is reached.

When using the LR36R outdoors during the day, why does it not shine brightly no matter what brightness level is chosen.

A: The LR36R features the intelligent brightness adjustment function (proximity detection sensor) that measures distance based on detected infrared light. The infrared light outdoors during the day is relatively strong, which will enable the intelligent brightness downshift function of LR36R. Therefore, the flashlight will automatically downshift its brightness level.

Solution: with the light locked, press and hold the electronic switch for 6 seconds. The OLED display will show "OFF", and the light will blink eight times in the Low output of Floodlight mode, indicating that this function is disabled.

Why does the LR36R happen to flicker?

A: The reasons that may cause the light to flicker, shine intermittently or even fail to illuminate:

1. Poor battery level.

   Solution: Recharge or replace the batteries.

2. The contact or contact point of the batteries or flashlight is dirty.

   Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

   If the above methods don't work, please contact your authorized distributor.

What kind of batteries can be used in LR36R?

A: It is recommended to use the Fenix ARB-L21-5000 series batteries. Other Li-ion batteries are not recommended. As unmatched batteries may cause the flashlight to fail to work normally.

Q12. What should I do when the LR36R needs repair?

A:

1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.
2. 5-year free repair: Fenix will repair a light free of charge within 5 years (rechargeable battery and other accessories: 1 year) of purchase if problems develop with normal use.
3. Lifetime limited warranty: If repair is required after 5 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.
4. If you need warranty service, fill out the warranty form at https://www.fenixlighting.com/pages/warranty-repairs to start your repair claim.
