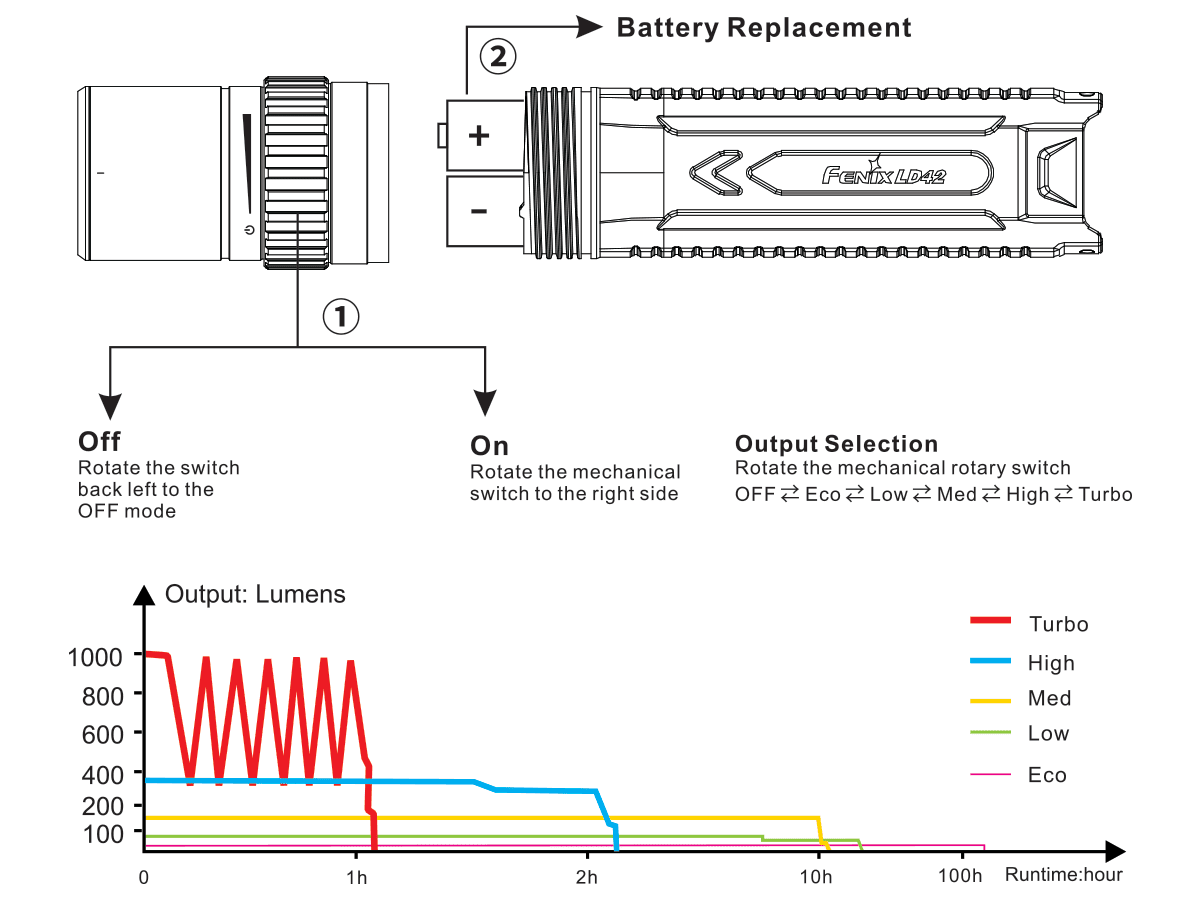

On/off
Rotate the mechanical switch to the right side to turn on the light; rotate the switchback left to the OFF mode to turn off the light.

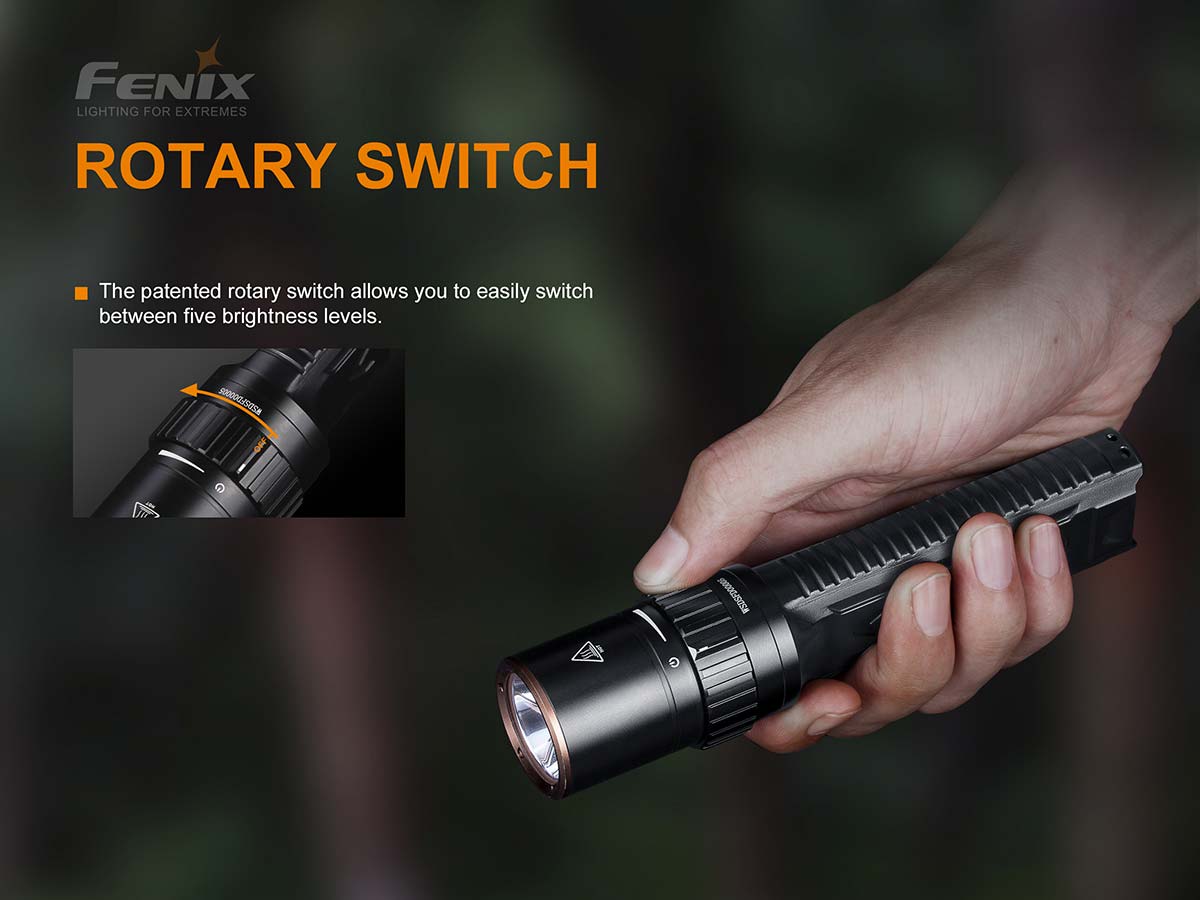

Output Selection
Rotate the mechanical rotary switch to cycle thru OFF⇄Eco⇄Low⇄Med⇄High⇄Turbo.

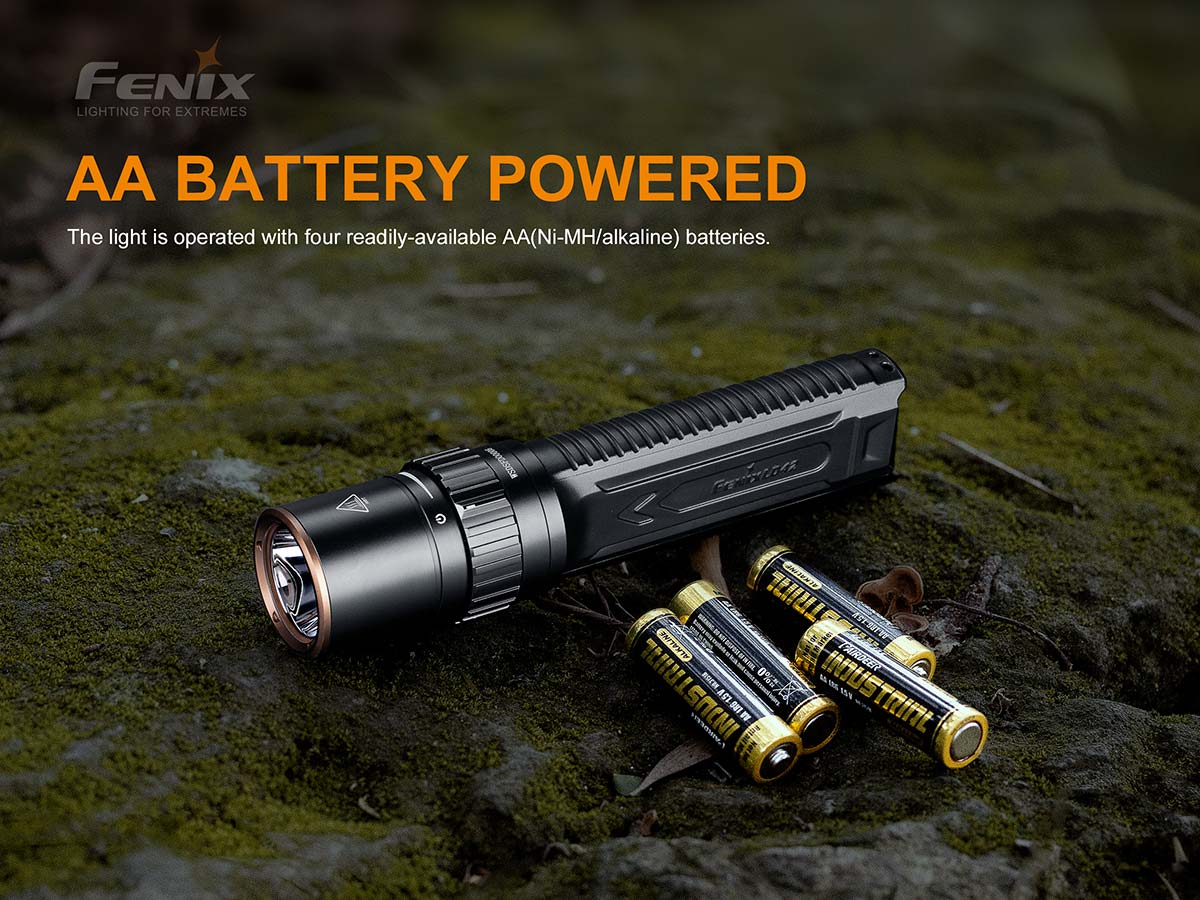

Battery Specification
Type | Dimensions | Nominal Voltage | Usability | |
Ni-MH Battery | AA | 1.2V | Recommended | √ |
Alkaline Battery | AA | 1.5V | Usable | √ |
Non-rechargeable Battery (Lithium) | AA | 1.5V | Usable | √ |
Rechargeable Battery (Li-ion) | 14500 | 3.7V | Banned | × |
Warning:
- Do not use the banned battery in case of overvoltage burnout in circuit component.
- Use quality batteries. Do not mix batteries of different brands, sizes, capacities or types. Doing so may cause damage to the lantern or the batteries being used.
- If the light will not be used for an extended period, remove the batteries from the light in case of damage by electrolyte leakage.
Battery Replacement
Unscrew the light head to insert the batteries with correct polarity in accordance with the graphics on the top surface of the battery compartment, then screw the light head back on.
Overheat Protection
The light will accumulate a lot of heat when used on Turbo for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down to 300 lumens to reduce the temperature. When the temperature drops below 60°C, it will then automatically return to Turbo mode.
Usage and Maintenance
- Disassembling the sealed head can cause damage to the light and will void the warranty.
- Fenix recommends using quality batteries with proper built-in protections.
- If the light will not be used for an extended period, remove the batteries, or the light could be damaged by electrolyte leakage.
- Unscrew the tail cap half a turn or take out the batteries to prevent accidental activation during storage or transportation.
- Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare (included) when damaged.
- Periodic cleaning of the battery contacts improves the light's performance as dirty contacts may cause the light to flicker, shine intermittently or even fail to illuminate for the following reasons:
A: The batteries need replacing.
Solution: Replace batteries (Ensure batteries are inserted according to the manufacturer’s specifications).
B: The threads, PCB board contact or other contacts are dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
If the above methods don't work, please contact your authorized distributor.
Warning
- This flashlight is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the flashlight directly into anyone’s eyes.
- This flashlight will accumulate a lot of heat when used for extended periods, resulting in high temperature of the flashlight shell. Pay attention to safe use to avoid scalding.
