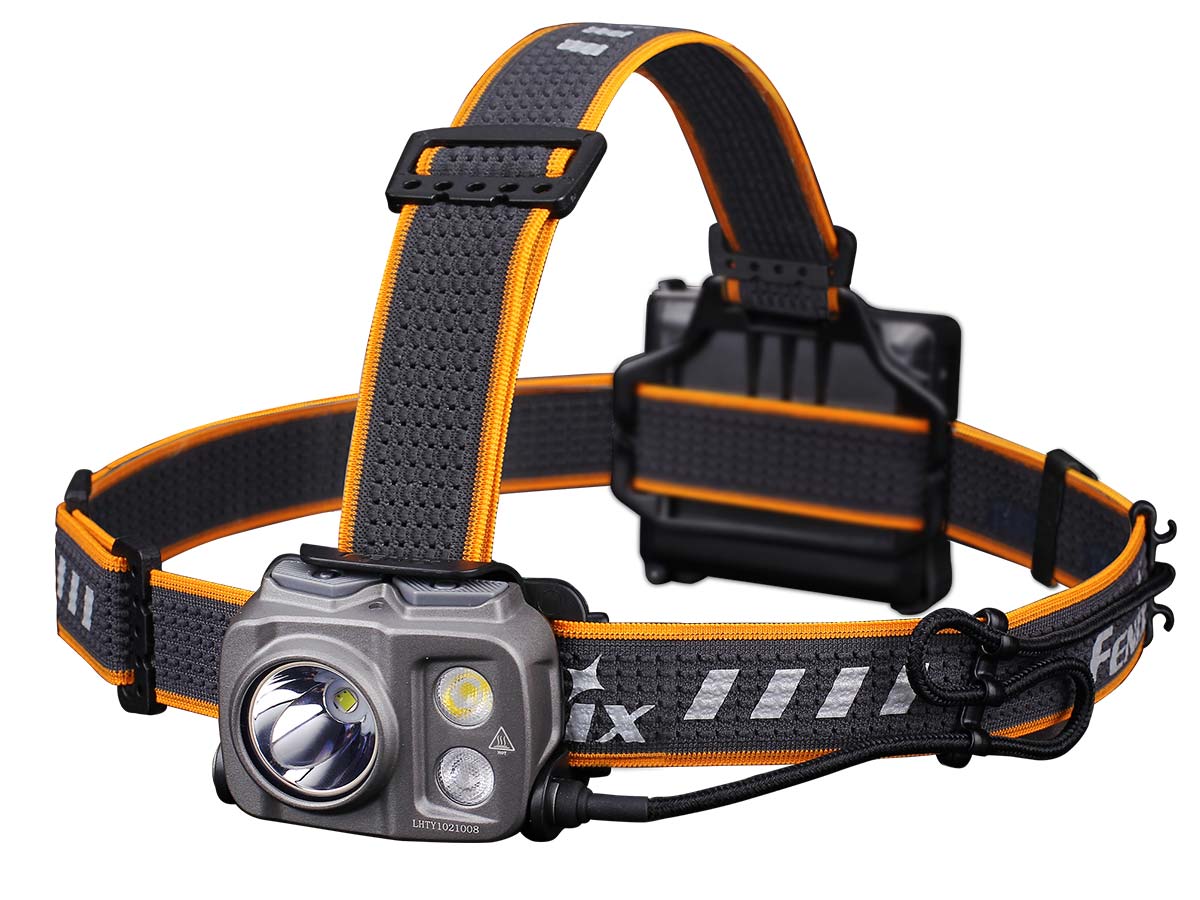

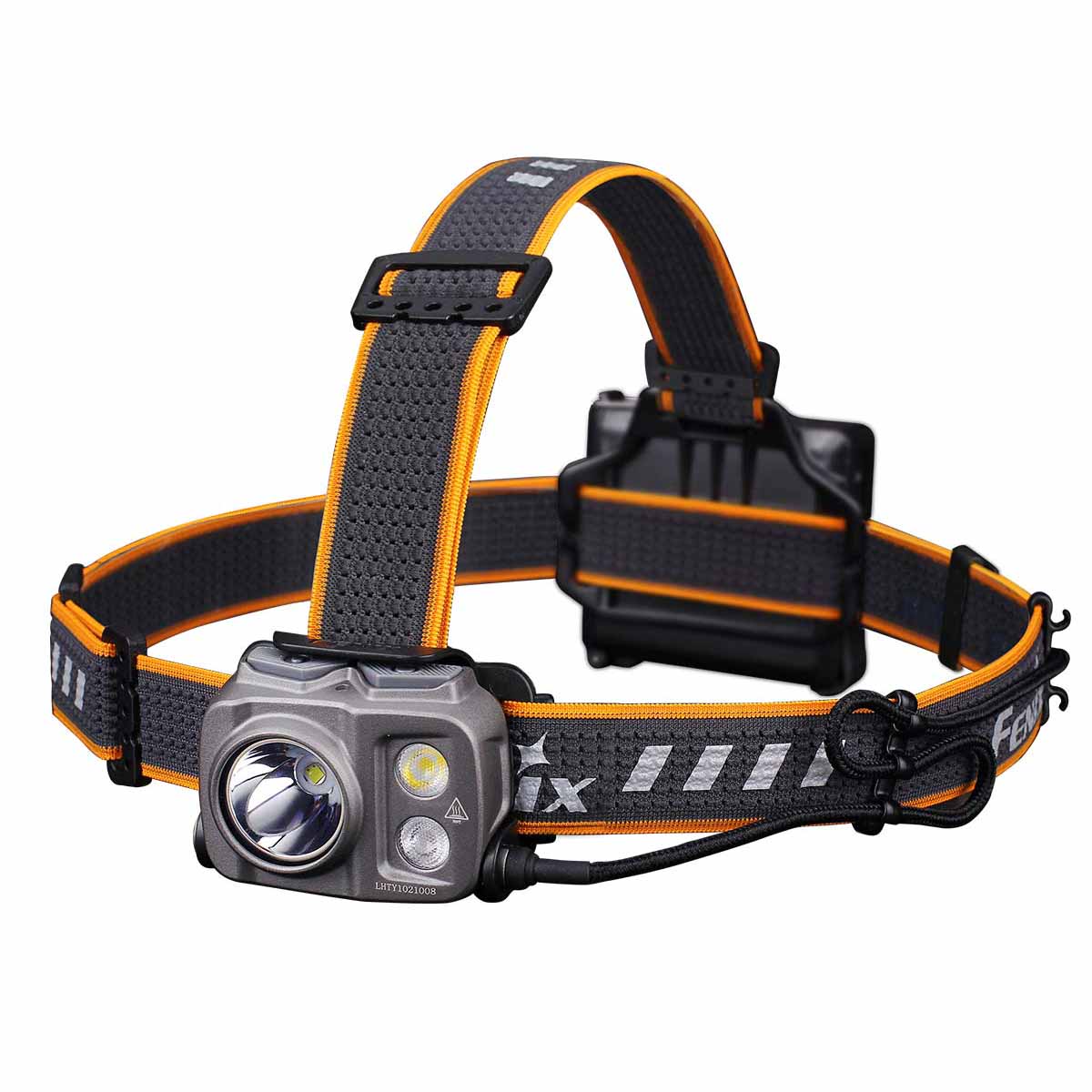

Fenix HP16R Rechargeable Headlamp

$146.00 $109.95

Shipping calculated at checkout.
Out of stock

Max Lumens:
1250

Modes:
9

Battery:
Pack or AA
View Details

For commercial orders and large purchases, contact us at (888) 775-9996 x6 or GET A QUOTE

WARNING. Be aware of counterfeit Fenix merchandise in the U.S. marketplace. READ MORE >>

SKU: HP16RXBKN/ABarcode: 6942870307893N/A

Product Overview

The Fenix HP16R Headlamp is the perfect tool for those who require high performance and long runtimes. Powered by its included 3000mAh li-polymer battery, this headlamp can blast a combined 1250 lumens from its spotlight. It can shine that light for up to 300 hours on its lowest floodlight brightness level, or even longer if you carry along extra AA batteries. A neutral white LED floodlight produces a warm light for better color rendering. 60° tilt mechanism allows you to place light where you need it and the lock out function helps avoid accidental activation. For all night exploring or on the job demands, the Fenix HP16R Headlamp won’t let you down.

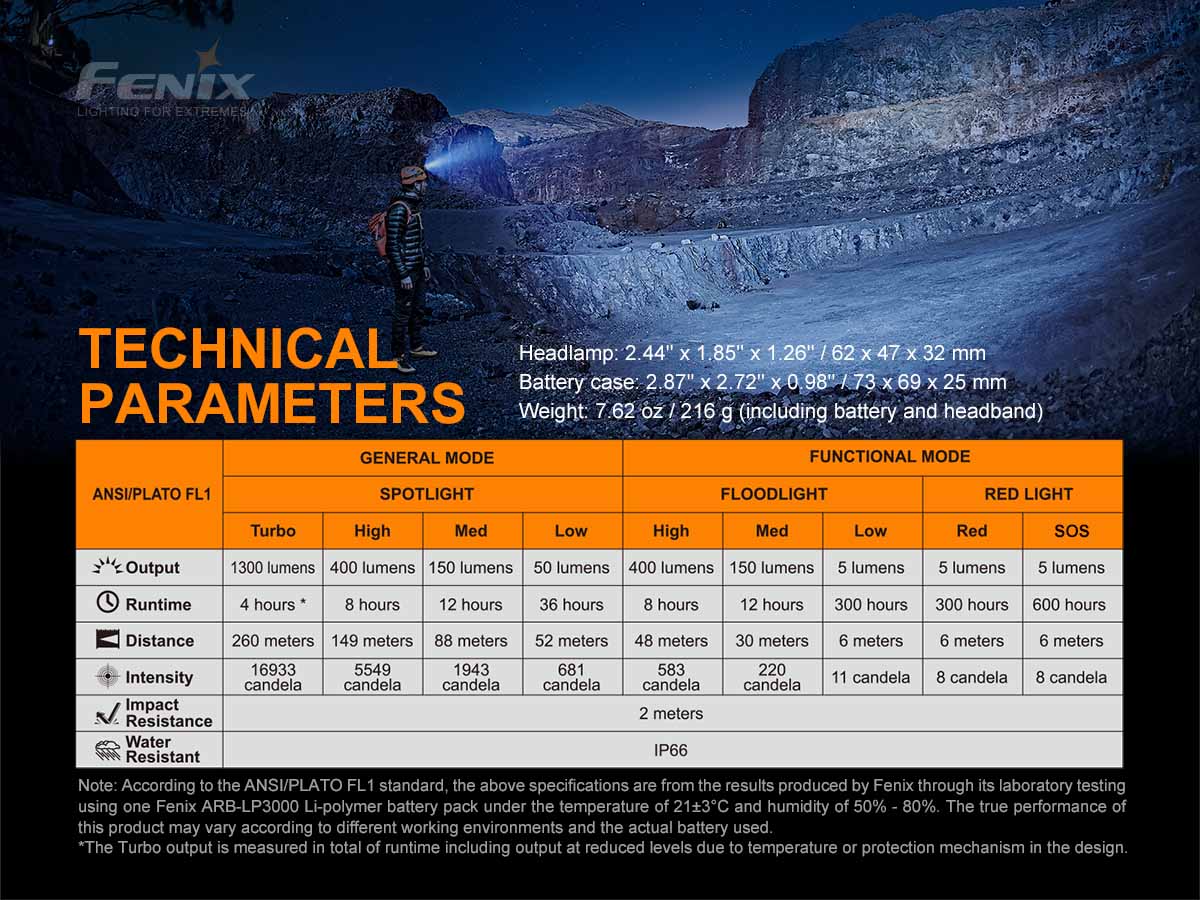

Specifications

Max Lumens: 1250
Max Beam Distance: 837 feet (255 meters)
Max Runtime: 300 hours
Lighting Modes: 4 brightness levels on spotlight, 3 brightness levels on floodlight, red light, and SOS
Bulb Type: Luminus SST40 white light LED, Cree XP-G3 S4 neutral white LED and Everlight 2835 red light LED
Lens Material: Polycarbonate
Color Temperature: Around 6450K
Size: Headlamp: Length: 2.44” (62mm) Width: 1.85” (47mm) Height: 1.26” (32mm) Battery Case: Length: 2.87” (73mm) Width: 0.98” (25mm) Height: 2.72” (69mm)
Weight: 7.62 oz. (216g) including battery and headband
Battery: One included Li-polymer battery pack or 4 AA batteries can be used as a backup
Included: ARB-LP3000 li-polymer battery, USB type-C charging cable, 4 helmet attachment hooks, 3 cable clips, spare O-ring, storage bag
Warranty: Limited Lifetime Guarantee from Fenix Lighting USA

More Information

  • Luminus SST40 white light LED, Cree XP-G3 S4 neutral white LED and Everlight 2835 red light LED; with a lifespan of 50,000 hours.
  • Included a 3000mAh Li-polymer battery pack and compatible with 4 AA Ni-MH/Alkaline batteries (charging is prohibited).
  • Separately controlled dual switch for easy and fast operation.
  • Lockout function avoids accidental activation.
  • USB Type-C charging port with 2A fast charging, 3 hours for full charging.
  • 60° tilt mechanism directs the beam where needed.
  • Made of quality plastics and aluminum, integrated die-casting for better heat dissipation and safety performance.

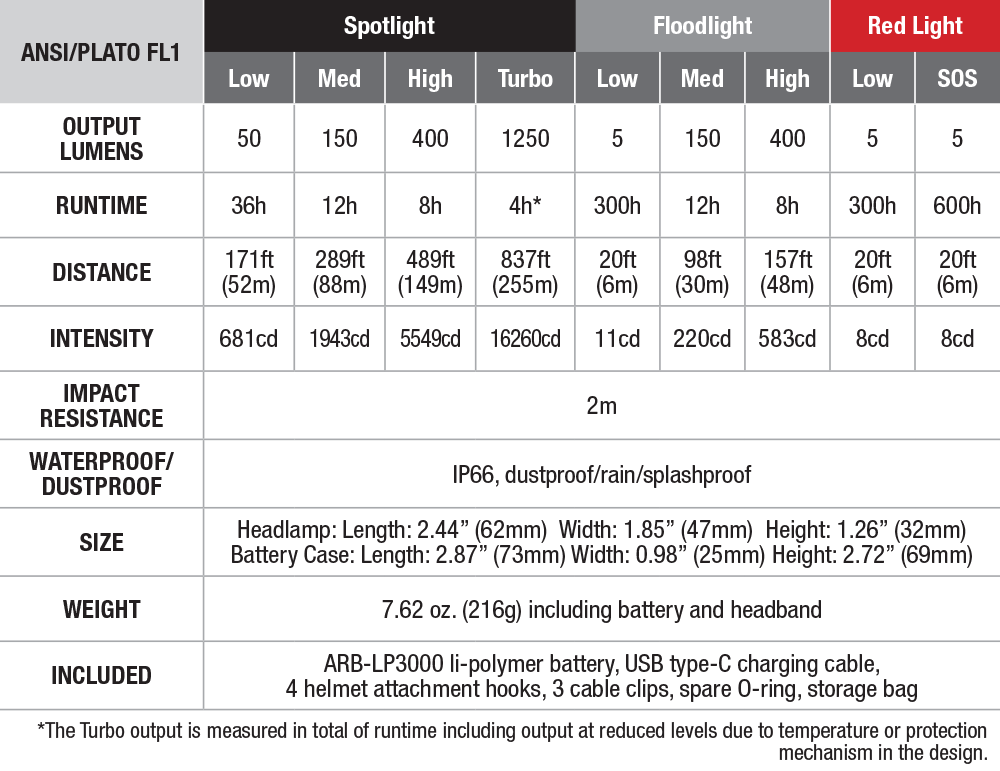

Fenix HP16R Rechargeable Headlamp specs chart

Runtime

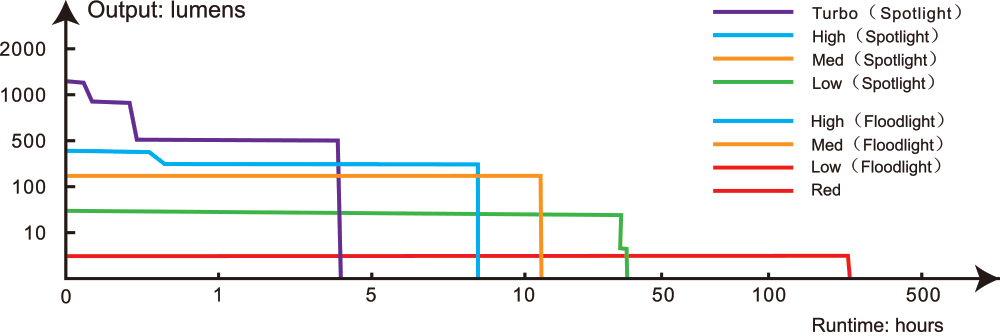

Fenix HP16R Rechargeable Headlamp runtime chart

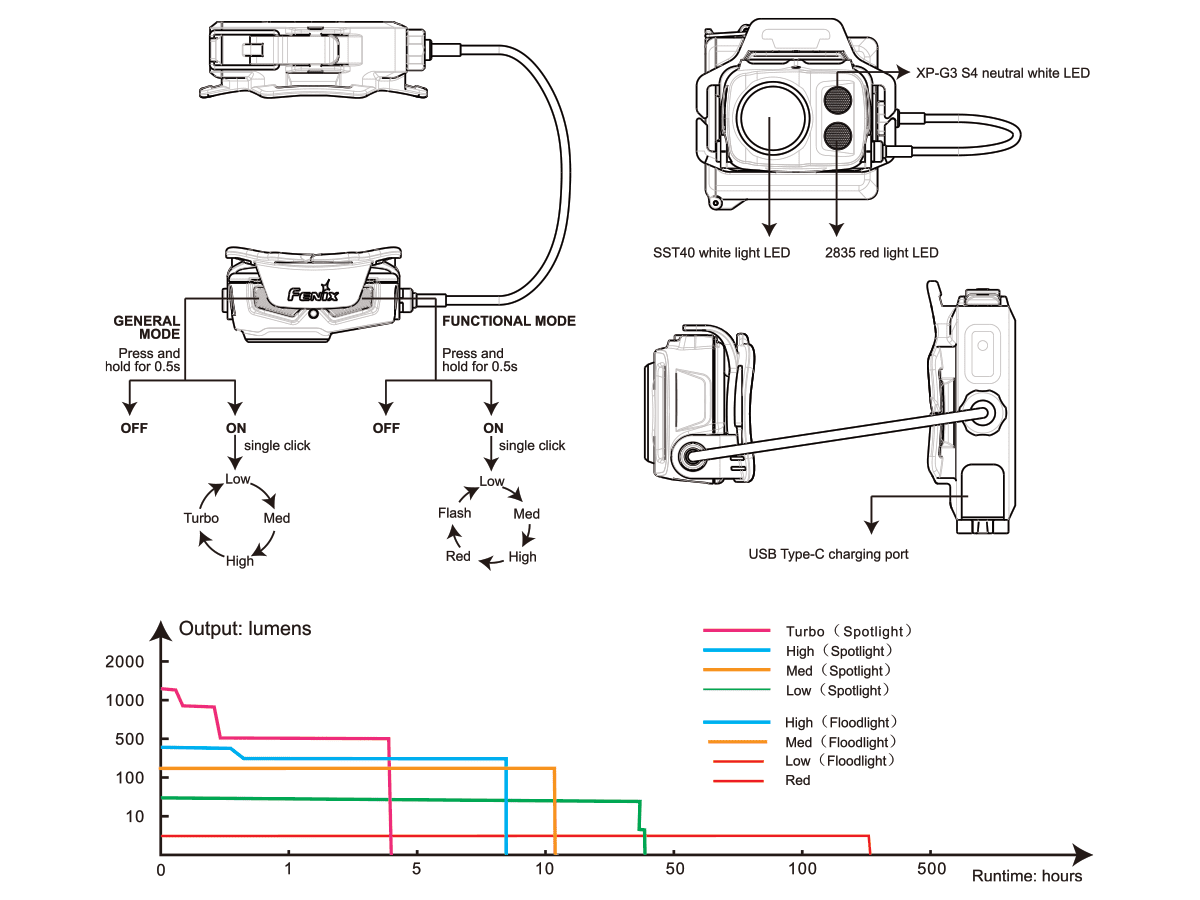

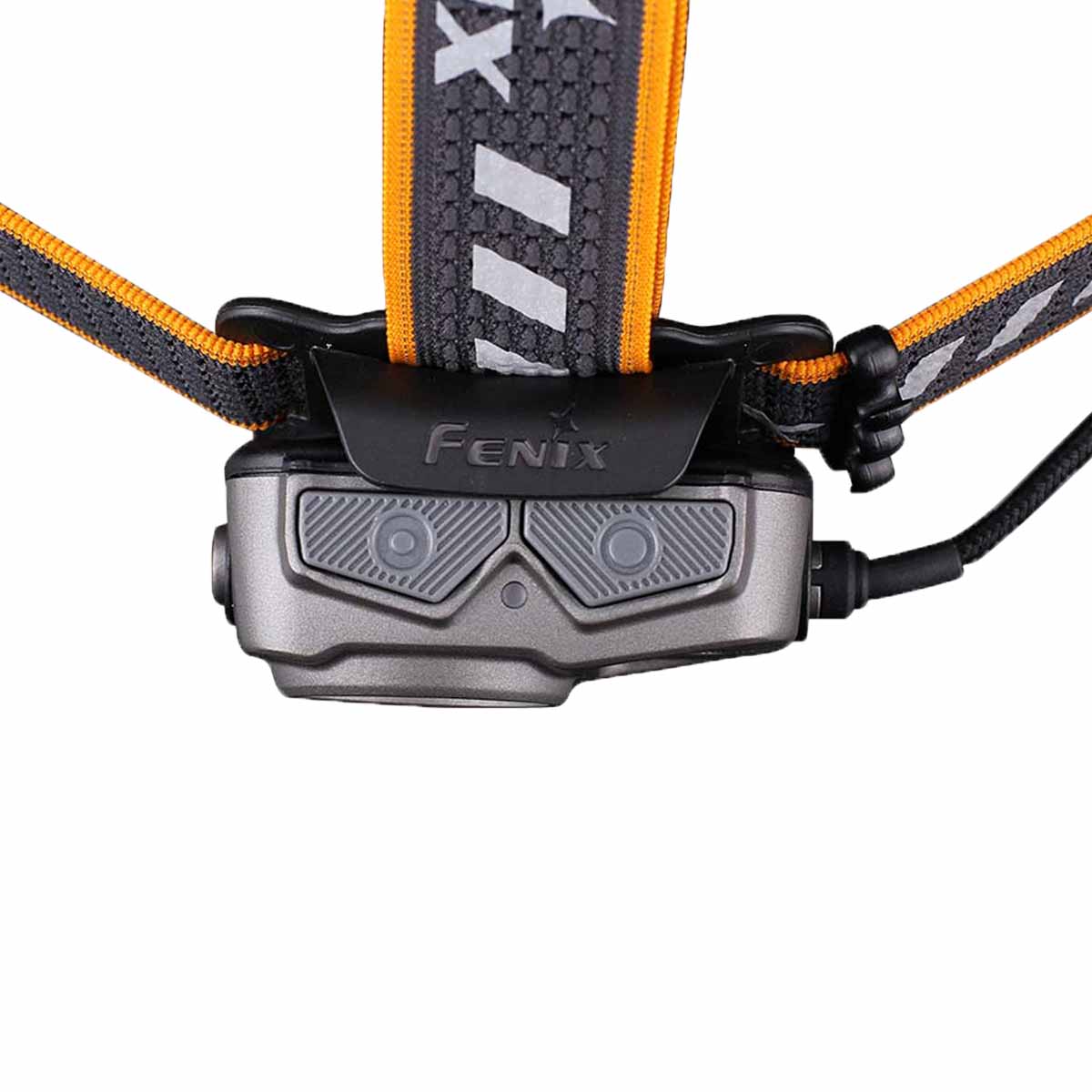

Switches

General switch: for on/off and output selection on General mode.

Functional switch: for on/off and output selection on Functional mode.



On/off

Press and hold either of the switches for 0.5 seconds to turn on/off the lamp.



Output Selection

General mode: single click the general switch to cycle through Low→Med→High→Turbo of spotlight.

Functional mode: single click the functional switch to cycle through Low→Med→High→Red Light→SOS.



Intelligent Memory Circuit

The headlamp memorizes the last selected output. When turned on again the previously used output will be recalled.
As of Oct. 2022 - *If the headlamp is turned off on Turbo level of Spotlight mode, when turned on again, it will be activated on High output of Spotlight mode.



Lockout Function

Lock: when the lamp is switched off, press and hold either of the two switches, or simultaneously press the two switches for 3 seconds, the lamp will blink red three times to indicate locked status.

Unlock: when the lamp is locked, simultaneously press the two switches for 3 seconds, the lamp will be activated with 3 one-second red blinks and activated on Red Light. In locked status, clicking or pressing the switches will activate 3 one-second red blinks to indicate locked status.



Battery Specifications

TypeDimensionsNominal VoltageUsability
Fenix ARB-LP300058x50x14 mm3.7 VRecommended√√
Fenix ARB-L14-1600U145001.5VRecommended (no charging)√√
Ni-MH BatteryAA1.2 VUsable (no charging)
Alkaline BatteryAA1.5 VUsable (no charging)
Non-rechargeable Battery (Lithium)AA1.5VBanned (no charging)×
Rechargeable Battery (Li-ion)145003.7VBanned (no charging)×
  1. It is strictly prohibited to charge non-rechargeable batteries.
  2. Recharge a stored headlamp every four months to maintain optimal Li-polymer battery performance.
  3. If the lamp will not be used for an extended period, remove the AA batteries from the lamp in case of damage by electrolyte leakage.

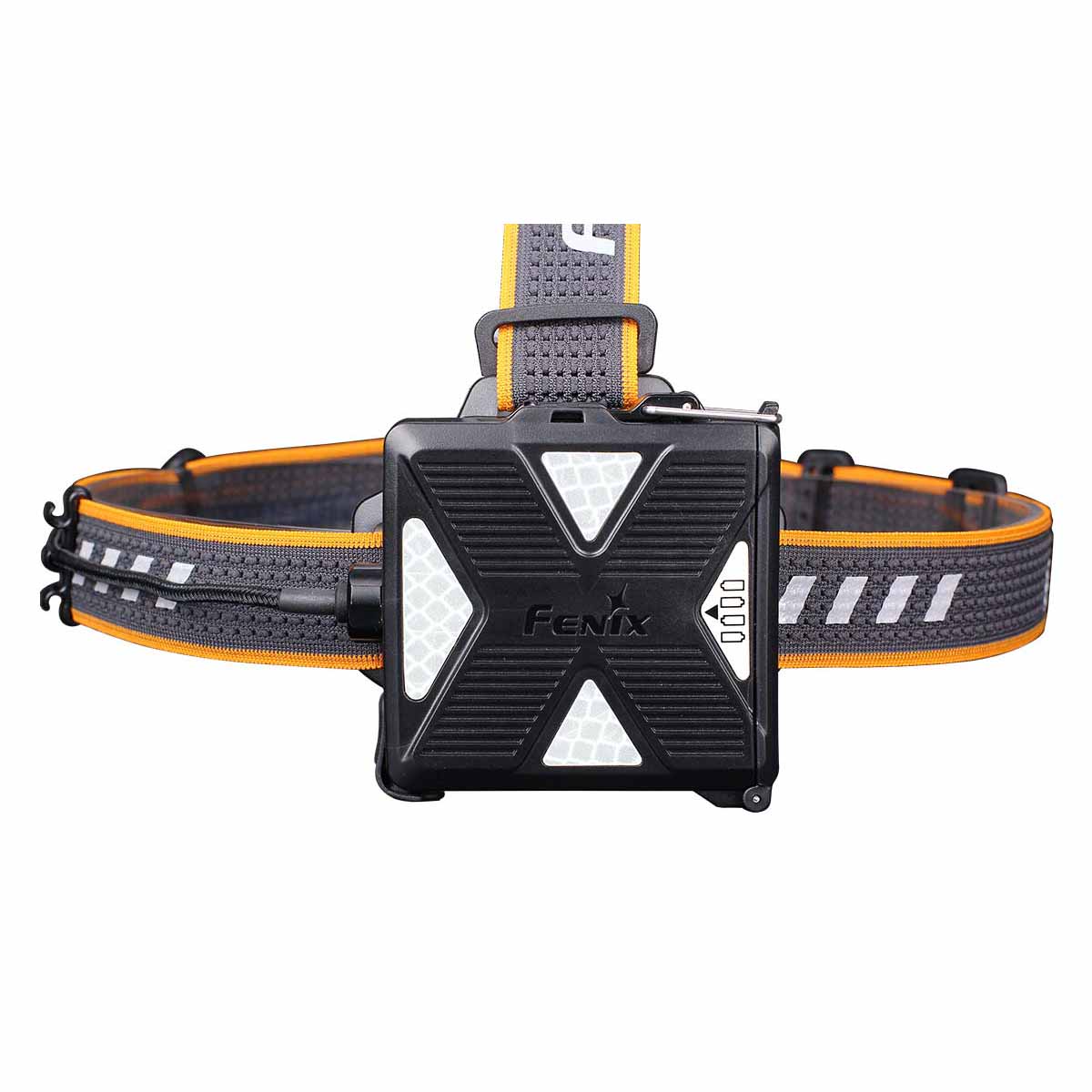

Battery Replacement

  1. Pull latch to open the battery cover.
  2. Insert the battery/batteries in accordance with the polarity marks.
  3. Replace the battery cover and fasten the latch.

Charging

  1. The included Li-polymer battery pack can be charged via the headlamp. It is strictly prohibited to charge non-rechargeable AA (NI-MH/Alkaline ) batteries via the headlamp.
  2. Uncover the anti-dust cap of the battery case and plug the USB Type-C side of the charging cable into the charging port of the battery case.
  3. The indicator on the battery case will display red while charging, and will turn to green when fully charged.
  4. Replace the anti-dust cap to ensure waterproof and dustproof ability.
  5. The normal charging time of the Fenix ARB-LP3000 Li-polymer battery is about 3 hours with the lamp being switched off.

Battery Level Indication With the lamp switched off, single click either of the switches to check the battery status, the indicator will last for 3 seconds.

  • Green light on: saturated 100% - 85%
  • Green light flashes: sufficient 85% - 50%
  • Red light on: poor 50% - 25%
  • Red light flashes: critical 25% - 1%

Note: This only works with Fenix ARB-LP3000 Li-polymer battery.



Intelligent Overheat Protection

The lamp will accumulate a lot of heat when used relatively high output levels for extended periods. When the lamp reaches a temperature of 65°C or above, the lamp will automatically step down a few lumens to reduce the temperature. When the temperature drops below 65°C, it will then allow the user for the re-selection of the modes.



Low-voltage Warning

When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output mode, the battery level indicator blinks to remind you to timely recharge or replace the battery.



Note: This only works with Fenix ARB-LP3000 Li-polymer battery.



Headband Assembly

  1. The headband is factory assembled by default.
  2. Adjust the headband by sliding the buckle to required length.

Usage and Maintenance

  • Disassembling the sealed head can cause damage to the lamp and will void the warranty.
  • Fenix recommends using an excellent quality Fenix battery.
  • If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage.
  • Lock the lamp or take out the battery to prevent accidental activation during storage or transportation.
  • Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
    A: The battery needs replacing.
    Solution: Replace battery (Ensure battery is inserted according to the manufacturer’s specifications).
    B: The contact point or contact of the battery or headlamp is dirty.
    Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact the distributor.



Warning

  • The headlamp is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the lamp directly into anyone’s eyes.
  • This headlamp will accumulate a lot of heat when used for extended periods, resulting in high temperature of the headlamp. Pay attention to safe use to avoid scalding.
  • The LED of this headlamp is not replaceable; so the entire lamp should be replaced when the LED reaches the end of its life.
  • All information provided in this manual is subject to change without prior notice.

FAQs about Fenix HP16R Headlamp



Q1. What is the product positioning of HP16R? And who are the target customers?

A:The Fenix HP16R is a rechargeable high-performance outdoor headlamp. The spot- and floodlight can be used simultaneously or separately to deliver a max output of 1250 lumens, runtime of 300 hours and a far-reaching beam of 255 meters. The HP16R is a headlamp with a separate battery case, powered by the included Fenix ARB-LP3000 Li-polymer battery pack, or the headlamp can also run on 4 Ni-MH/Alkaline AA batteries. Additionally, the headlamp is rechargeable via the USB Type-C port in the battery case. The HP16R will be an indispensable aid in your mountaineering, searching, snow-hiking or any other challenging outdoor activities.



Q2. What are the key features and benefits of HP16R?

A: 1) 1250 lumens maximum output.

2)Integrated die-casting body.

3)Separately controlled dual switch.

4)USB Type-C 2A fast charging, 3 hours for full charging.

5) Included 3000 mAh Li-polymer battery and compatible with 4 x AA batteries (Ni-MH/ Alkaline).



Q3. What kind of LED's are used in HP16R?

A:A Luminus SST40 white light LED, a Cree XP-G3 S4 neutral white LED and an Everlight 2835 red light LED.

Lighting angles: spotlight beam angle of 80°, spotlight center beam angle of 10°, floodlight beam angle of 80°.



Q4. Does HP16R have overheat protection?

A: Yes. The lamp will accumulate a lot of heat when used relatively high output levels for extended periods. When the lamp reaches a temperature of 65°C or above, the lamp will automatically step down a few lumens to reduce the temperature. When the temperature drops below 65°C, it will then allow the user for the reselection of the modes.



Q5. What battery does the HP16R support?

A:It supports the included 3000mAh Li-polymer battery, and compatible with 4 AA batteries (Ni-MH / Alkaline).

Note: Due to the internal circuit limitation, when using AA batteries, the maximum brightness of spotlight mode is 800 lumens; and the brightness levels on spotlight mode and floodlight mode cannot be simultaneously selected.



Q6.  Is the HP16R battery port waterproof?

A. The light is waterproof so long as the battery port cover is in place.



Q7.  What should I do if the HP16R needs repair?

A: 1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.

2. 2-year free repair: Fenix will repair a light free of charge within 2 years of purchase if problems develop with normal use.

3. Lifetime maintenance: If repair is required after 2 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.

4. If you need warranty service, fill out the warranty form at https://www.fenixlighting.com/pages/warranty-repairs to start your repair claim.
