Fenix HM65R-DT Dual Spotlight Headlamp

$146.00 $99.95

Shipping calculated at checkout.

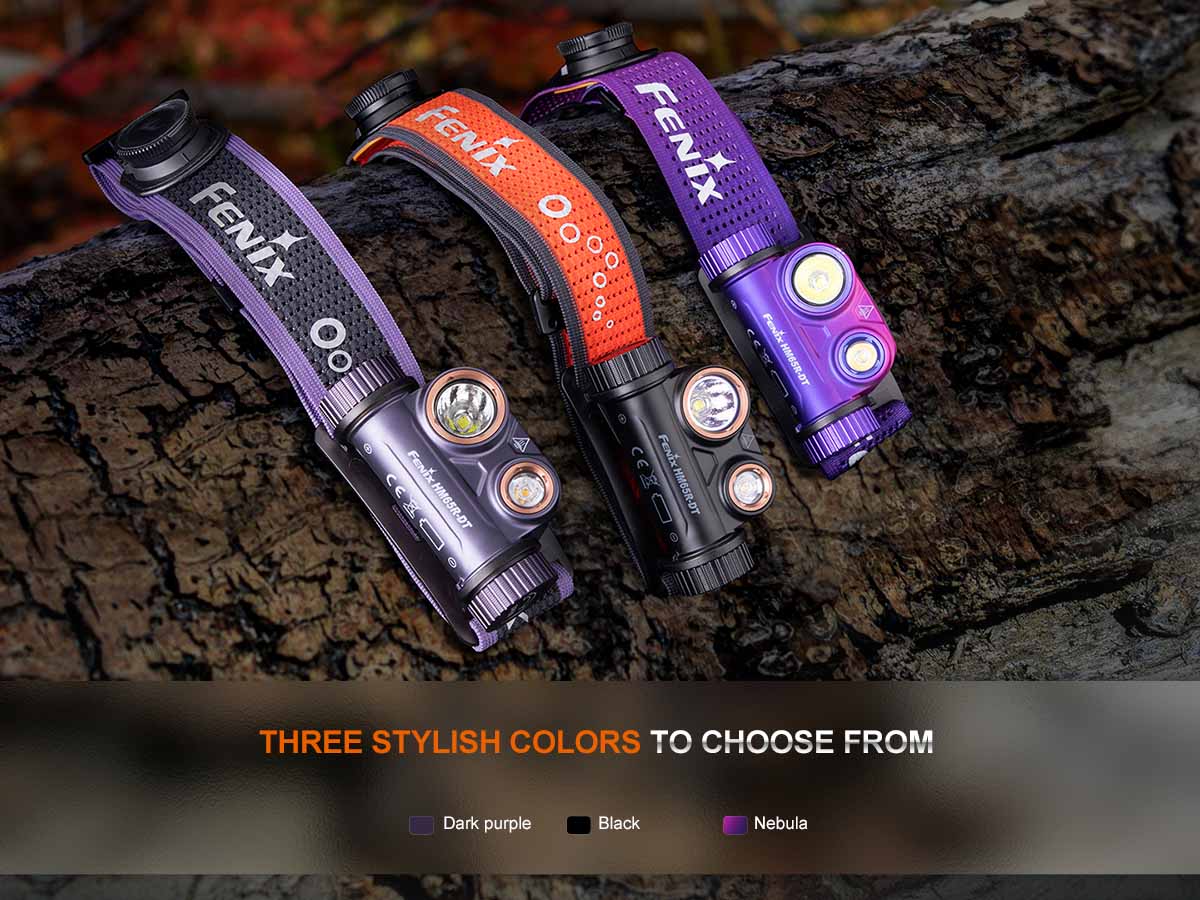

Color: Nebula

  • Black
  • Nebula
  • Purple
Out of stock

Max Lumens:
1500

Modes:
6

Battery:
18650 or CR123A
View Details

For commercial orders and large purchases, contact us at (888) 775-9996 x6 or GET A QUOTE

WARNING. Be aware of counterfeit Fenix merchandise in the U.S. marketplace. READ MORE >>

SKU: HM65RDTNAN/ABarcode: 6942870309927N/A

Product Overview

The Fenix HM65R-DT Dual Spotlight Headlamp is a new version of the best-selling HM65R Headlamp that features dual spotlights—one spotlight of cool white light, for longer distances, and the other with a very warm 3000K light for better performance in foggy, poor weather conditions. Turn both on at the same time for a combined maximum of 1500 lumens. Powered by the included li-ion battery, this headlamp is USB-C rechargeable and includes a battery level indicator. It is made of a magnesium alloy which makes it 30% lighter than similar headlamps made of aluminum. The HM65R-DT with its IP68 waterproof rating is the perfect option for those needing hands-free performance that can weather the elements.

Specifications

Max Lumens: 1500
Max Beam Distance: 558 feet (170 meters)
Max Runtime: 300h
Lighting Modes: Six modes including three cool spotlight levels and three warm spotlight levels
Bulb Type: Luminus SST40 white and SST20 warm white LED
Color Temperature: Cool spotlight 6500K, Warm spotlight 3000K
Size: Length: 3.15” (80mm) Width: 1.85” (47mm) Height: 1.54” (39mm)
Weight: 3.21 oz. (91g) excluding battery
Battery: One included 18650 rechargeable Li-ion battery or two CR123A batteries (not included)
Included: ARB-L18-3400 rechargeable li-ion battery, USB Type-C charging cable, spare O-ring
Warranty: Limited Lifetime Guarantee from Fenix Lighting USA

More Information

  • Uses Luminus SST40 white and SST20 warm white LEDs, with a lifespan of 50,000 hours.
  • Constant current circuit ensures longer runtime.
  • Reverse polarity protection, to protect from improper battery insertion.
  • Dual top switches for easy and fast operation.
  • USB Type-C charging port fast charging.
  • Single-handed operation with the new SPORT Headband Fit System.
  • Quality magnesium and PC made - lightweight and durable.

*The maximum head size the SPORT headband will fit is 24" (61cm) or hat size 7 5/8.

Fenix HM65R-DT Dual Spotlight Headlamp specs chart

Runtime

Fenix HM65R-DT Dual Spotlight Headlamp runtime chart

Switches

White light:for on/off, mode switching, lockout function and output selection on white light mode.

Warm white light:for on/off, mode switching, lockout function and output selection on warm white light mode.



On/off

Press and hold either of the two switches for 0.5 seconds to turn on/off the lamp. Low output level is set by default.



Mode switching

Press and hold either of the two switches for 0.5 seconds to reach the corresponding mode. The two modes are separately controlled.



Output selection

White light mode: single click the white light switch to cycle through Low→Med→High.

Warm white light mode: single click the warm white light switch to cycle through Low→Med→High.



Lockout Function

Lock:With the lamp switched off, press and hold either of the two switches, or simultaneously press the two switches for 3 seconds, the lamp will blink 4 times on Low of warm white light mode to indicate locked status.

Unlock: With the lamp is locked, simultaneously press the two switches for 3 seconds, the lamp will be activated with 4 blinks and activates on Low of warm white light mode.

In locked status, clicking or pressing the switches will activate 4 blinks on Low of warm white light mode to indicate locked status.



Battery Specifications

Type

Dimensions

Nominal voltage

Usability



Fenix ARB-L18 Series

18650*

3.6 V

Recommended

√√

Non-rechargeable Battery (Li-ion)

CR123A

3.0 V

Usable

Rechargeable Battery (Li-ion)

18650

3.6 V

Caution*

Rechargeable Battery (Li-ion)

16340

3.6 V

Banned

×

*18650 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes.

Quality Li-ion battery with protective circuit will reduce risks. Fenix ARB-L18 Series battery is recommended.



Battery Replacement

Unscrew the battery cover counter-clockwise to insert the battery with the anode side (+) towards the inner side, then screw the battery cover back on.



Charging

  • Uncover the anti-dust cap and plug the USB Type-C side of the charging cable into the charging port of the lamp.
  • The normal charging time of the Fenix ARB-L18-3400 rechargeable battery is about 3 hours with the lamp being switched off. When charging, Low output of white light or warm white light mode can be separately selected. The headlamp will not automatically power on after full charging.
  • When charging, the charging indicators will flash from rear to front to display charging status. In charging process, four indicators flash: below 20%, one constant-on and three flash: 20% - 50%, two constant-on and two flash: 50% - 80%, three constant-on and one flashes: 80% - 95%, four constant-on: charging complete.
  • Replace the anti-dust cap to ensure waterproof and dustproof ability.



Battery Level Indication

With the lamp is switched off, single click either of the two switches to check the battery status, the indicator(s) will last for 3 seconds.

There will be no response with the lamp locked.

Four lights on: 100% - 80%

Three lights on: 80% - 60%

Two lights on: 60% - 40%

One light on: 40% - 20%

One light flashes: 20% - 1%

Note: This only works with Fenix ARB-L18 Series rechargeable battery.



Intelligent Overheat Protection

The lamp will accumulate a lot of heat when used on high, med and low output levels for extended periods. When the lamp reaches a temperature of 65°C or above, the lamp will automatically step down a few lumens to reduce the temperature. When the temperature drops below 65°C, it will then allow the user for the reselection of the modes.



Low-voltage Warning

When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output mode, one of the battery level indicators blinks to remind you to timely recharge or replace the battery.

Note: This only works with Fenix ARB-L18 Series rechargeable battery.



Headband Assembly

Notice: The headband is factory assembled by default.

Press the rotary press-pull dial, rotate it clockwise to shorten the headband; pull the dial up to loosen the headband.



Usage and Maintenance

  • Disassembling the sealed head can cause damage to the lamp and will void the warranty.
  • Fenix recommends using an excellent quality Fenix battery.
  • If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage.
  • Lock the lamp or take out the battery to prevent accidental activation during storage or transportation.
  • Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
  • Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
    A: Poor battery level.
    Solution: Rehcarge or replace the battery.
    B: The threads, PCB board contact or other contacts are dirty.
    Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact the distributor.



Warning

  • Do place this headlamp in the reach of children!
  • Do NOT shine the headlamp directly into the eyes of anyone!
  • Do NOT shine flammable objects at close range, to avoid burning objects or causing danger due to high temperature!
  • Do NOT use the headlamp in inappropriate ways such as biting in the mouth, to avoid personal injury or life threats when the headlamp or internal battery fails!
  • This headlamp will accumulate a lot of heat while working, resulting in a high temperature of the headlamp shell. Pay attention to safe use to avoid scalding.
  • Turn off and lock the headlamp or remove the battery from the headlamp to prevent accidental activation when the headlamp is placed in a closed and flammable environment such as pockets and backpacks!
  • The LED of this headlamp is not replaceable; so the whole headlamp should be replaced when the LED reaches the end of its life.

Q1. What kind of LEDs are used in HM65R-DT? Does Fenix offer to replace LED?

A: A Luminus SST40 white light LED and a SST20 warm white light LED; with a lifespan of 50,000 hours.



Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.



Q2. What is the color temperature of HM65R-DT?

A: The color temperature of white light is around 6500K, the color temperature of warm white light is around 3000K.



Q3. What is the operating voltage of HM65R-DT?

A: The operating voltage is 3.6 V. The operating current is 4.2 A. The rated wattage is 15 W.



Q4. Is HM65R-DT rechargeable? How long is the charging time?

A: HM65R-DT is rechargeable. Uncover the anti-dust cap and plug the USB Type-C side of the charging cable into the charging port of the lamp to charge the lamp. The charging time is about 3 hours from depleted to fully charged. When charging is complete, replace the anti-dust cap to ensure waterproof and dustproof ability.



Q5. How to prevent accidental activation of the HM65R-DT?

A: Lock: when the lamp is switched off, press and hold either of the switches for 3 seconds or simultaneously press both of the switches for 3 seconds, the warm white light will blink 4 times to indicate the locked status.

Unlock: when the lamp is locked, press and hold both of the switches for 3 seconds, the warm white light will blink 4 times to indicate unlocked status and activate on Low of warm white light mode.

In locked status, clicking or pressing the switches will activate 4 blinks on Low of warm white light mode to indicate the locked status.



Q6. Why does the HM65R-DT downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons:

1. Intelligent Overheat Protection

The lamp will accumulate a lot of heat when used at relatively high output levels for extended periods. When the lamp reaches a temperature of 60°C or above, the lamp will automatically step down a few lumens to reduce the temperature.

2. Low-voltage Warning

When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until Low output is reached.



Q7. Why does the HM65R-DT happen to flicker?

A: The reasons that may cause the lamp to flicker, shine intermittently or even fail to illuminate:

A: Poor battery level.

Solution: Recharge or replace the battery (Ensure battery is inserted according to the manufacturer’s specifications).

B: The contact point or contact of the battery or headlamp is dirty.

Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.



If the above methods don't work, please contact the distributor.



Q8. What kind of battery can be used in HM65R-DT?

A: Fenix ARB-L18-3400 battery is recommended. Compatible with 2 x CR123A batteries. Other Li-ion batteries are not recommended. As High output fail to headlamp up due to current and voltage limitation, an unmatched battery may cause the headlamp to fail to work normally.



Q9. Is the HM65R battery port waterproof?

A. The light is waterproof so long as the battery port cover is in place.



Q10. What should I do if the HM65R-DT needs repair?

A: 1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.

2. 5-year free repair: Fenix will repair a light free of charge within 5 years (rechargeable battery: 1 year) of purchase if problems develop with normal use.

3. Lifetime maintenance: If repair is required after 5 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.

4. If you need warranty service, fill out the warranty form at https://www.fenixlighting.com/pages/warranty-repairs to start your repair claim.
