Fenix E02R Rechargeable EDC Flashlight

$32.00 $23.95

Shipping calculated at checkout.

Color: Black

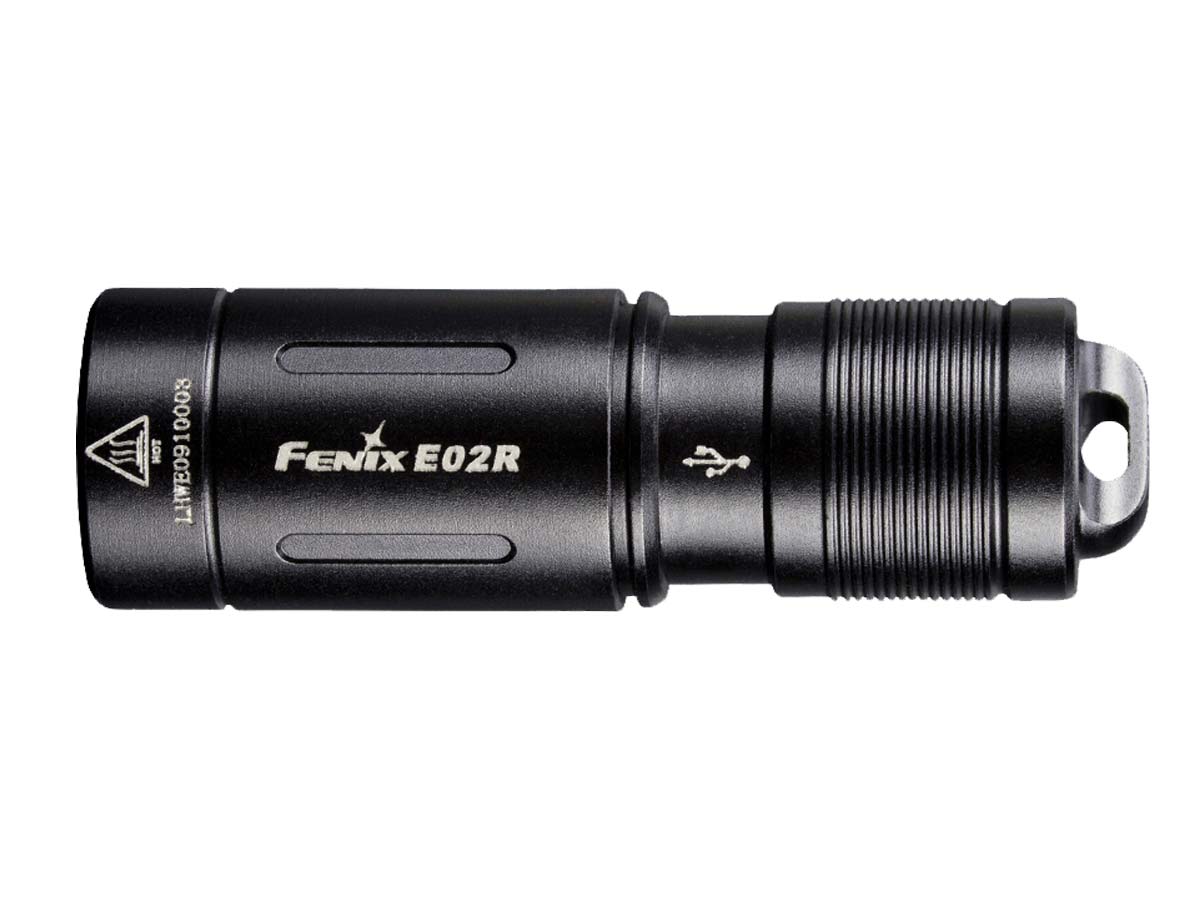

  • Black
  • Blue

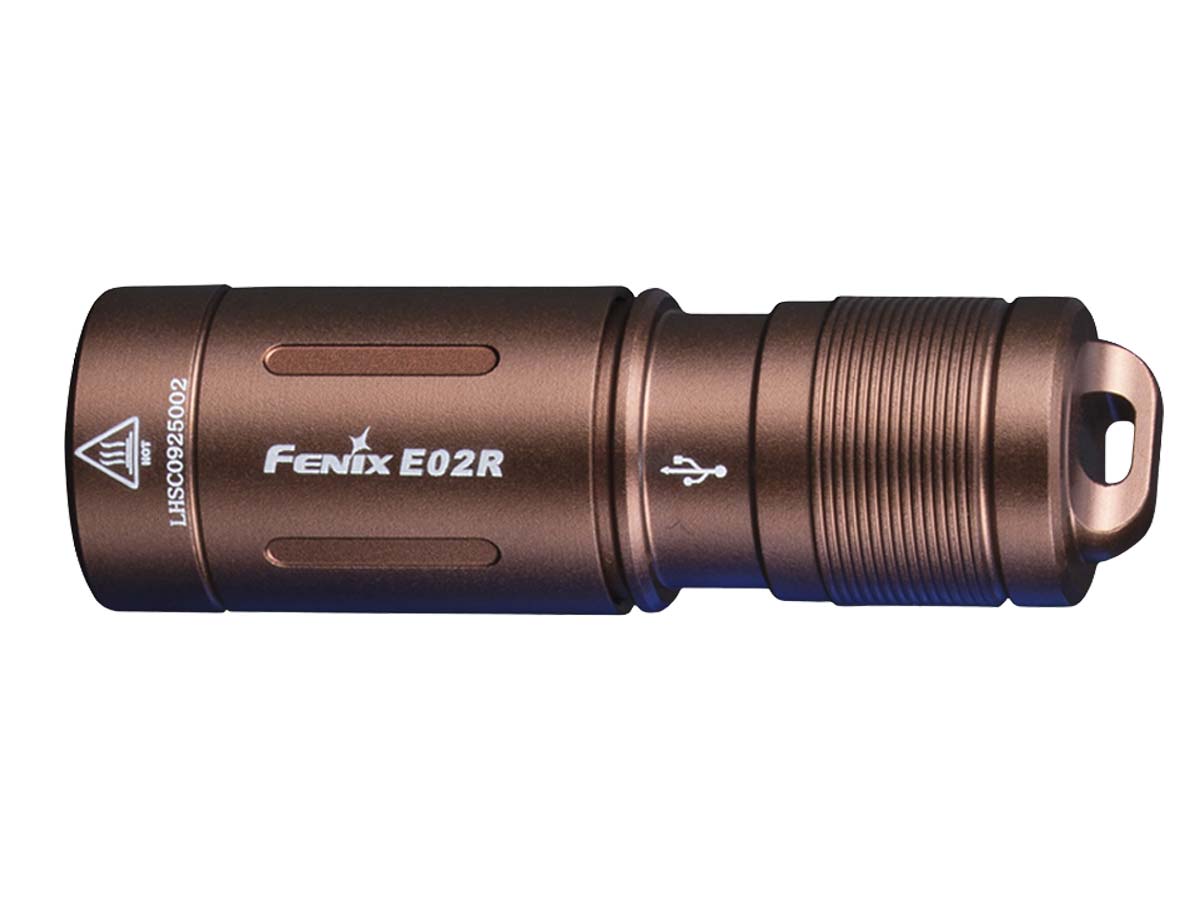

  • Brown
Out of stock

Max Lumens:


View Details

For commercial orders and large purchases, contact us at (888) 775-9996 x6 or GET A QUOTE

WARNING. Be aware of counterfeit Fenix merchandise in the U.S. marketplace. READ MORE >>

SKU: E02RG2BKN/ABarcode: 6942870307732N/A

Product Overview

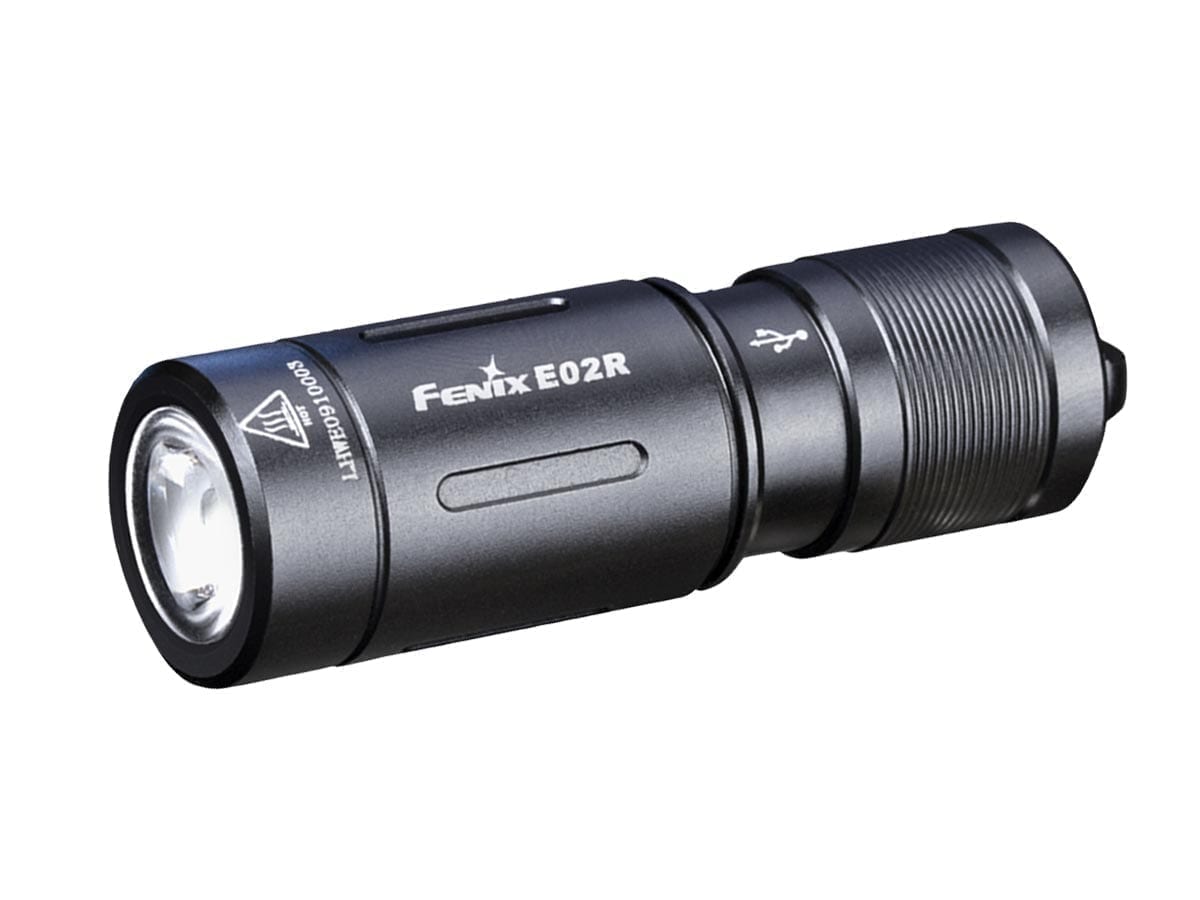

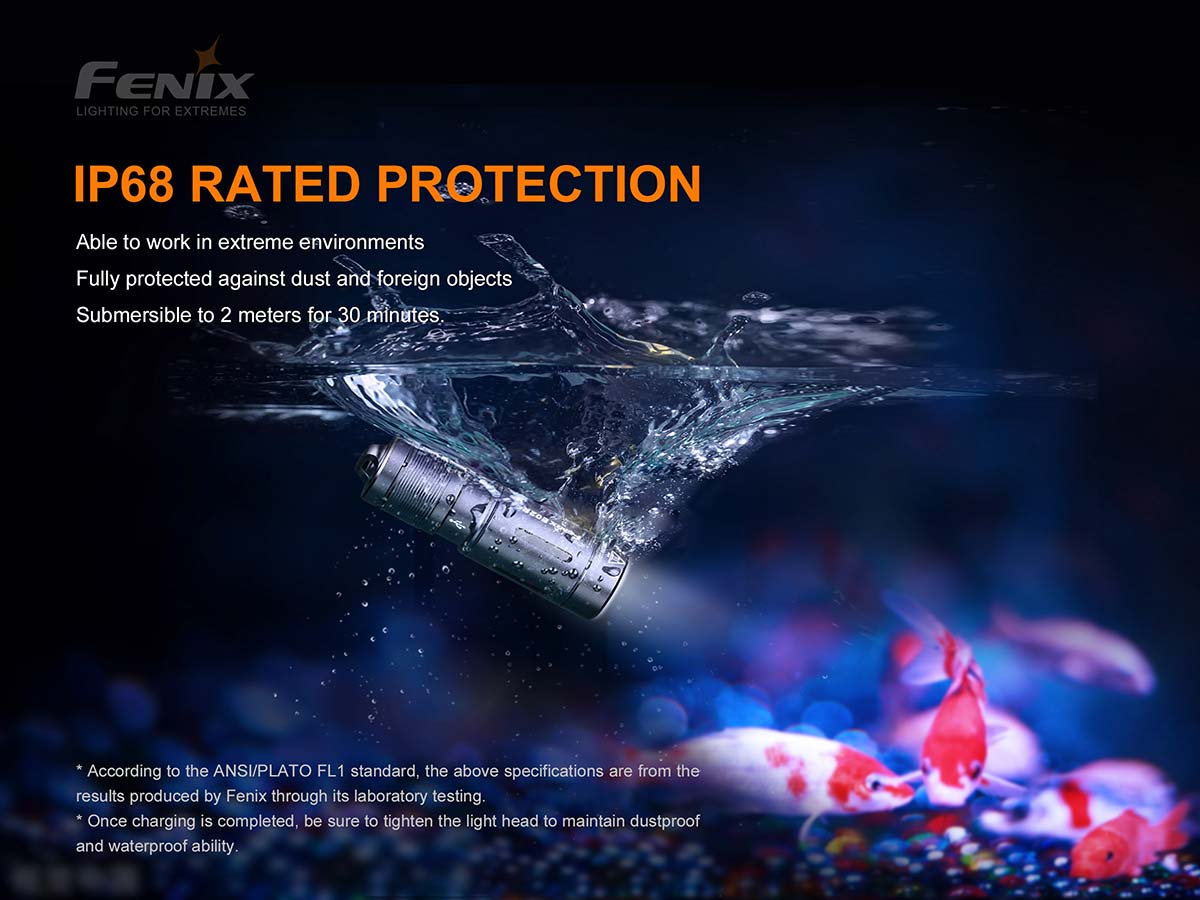

The Fenix E02R Flashlight is a rechargeable flashlight that can emit up to 200 lumens from its built-in 120mAh li-polymer battery. Fully rechargeable via a built in micro-USB charging port, this flashlight has a maximum runtime of 6 hours and 30 minutes. Access two brightness levels with a quick twist of the head. At less than 2” long and just over a half of an inch round, this little flashlight is built tough with an IP68 dustproof and waterproof rating. Super small and compact, this keychain flashlight is a great choice for everyday carry.


Max Lumens: 200
Max Beam Distance: 161 feet (49 meters)
Max Runtime: 6 hours 30 minutes
Lighting Modes: 2 brightness levels
Bulb Type: Cree XP-G2 S3 white LED
Lens Material: Polycarbonate

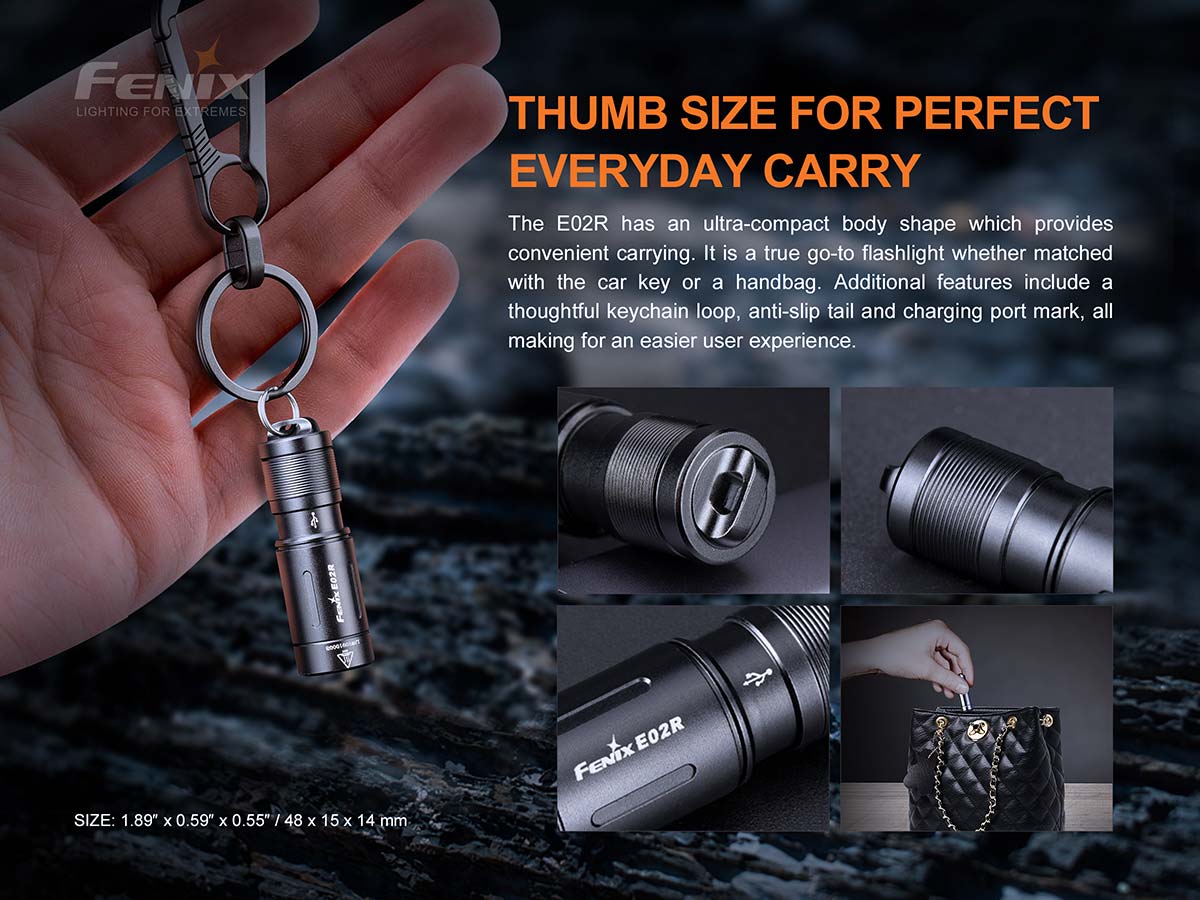

Size: Length: 1.89” (48mm) Head: 0.59” (15mm) Body: 0.55” (14mm)
Weight: 0.53 oz. (15g)
Battery: Built-in 120 mAh li-polymer battery

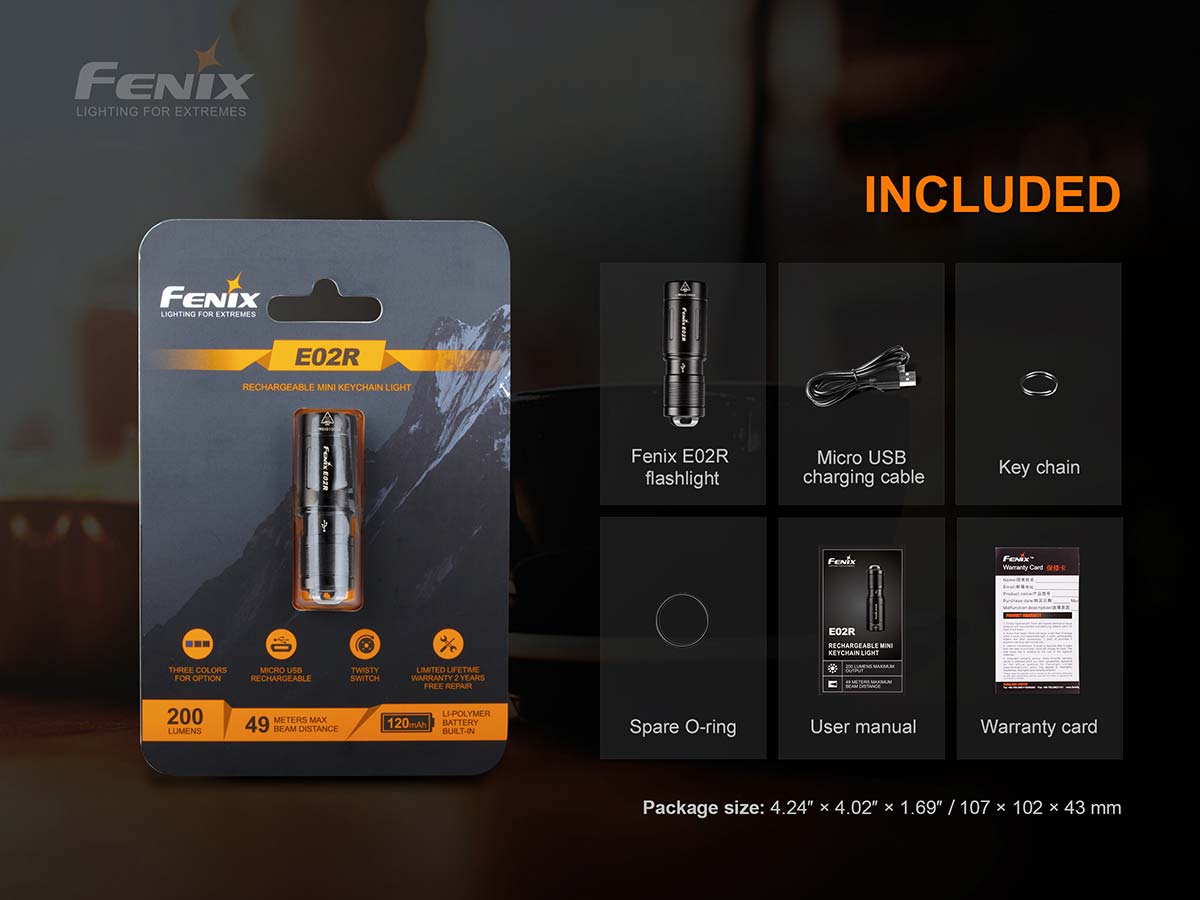

Included: Micro USB charging cable, key ring, spare O-ring
Warranty: Limited Lifetime Guarantee from Fenix Lighting USA

More Information

  • Cree XP-G2 S3 white LED, with a lifespan of 50,000 hours
  • Built-in 120 mAh Li-polymer battery.
  • Micro USB charging port for direct charging.
  • Twisty head for on/off and brightness selection.
  • Integrated design of light head and tail.
  • High-efficiency lens with total reflective coating.

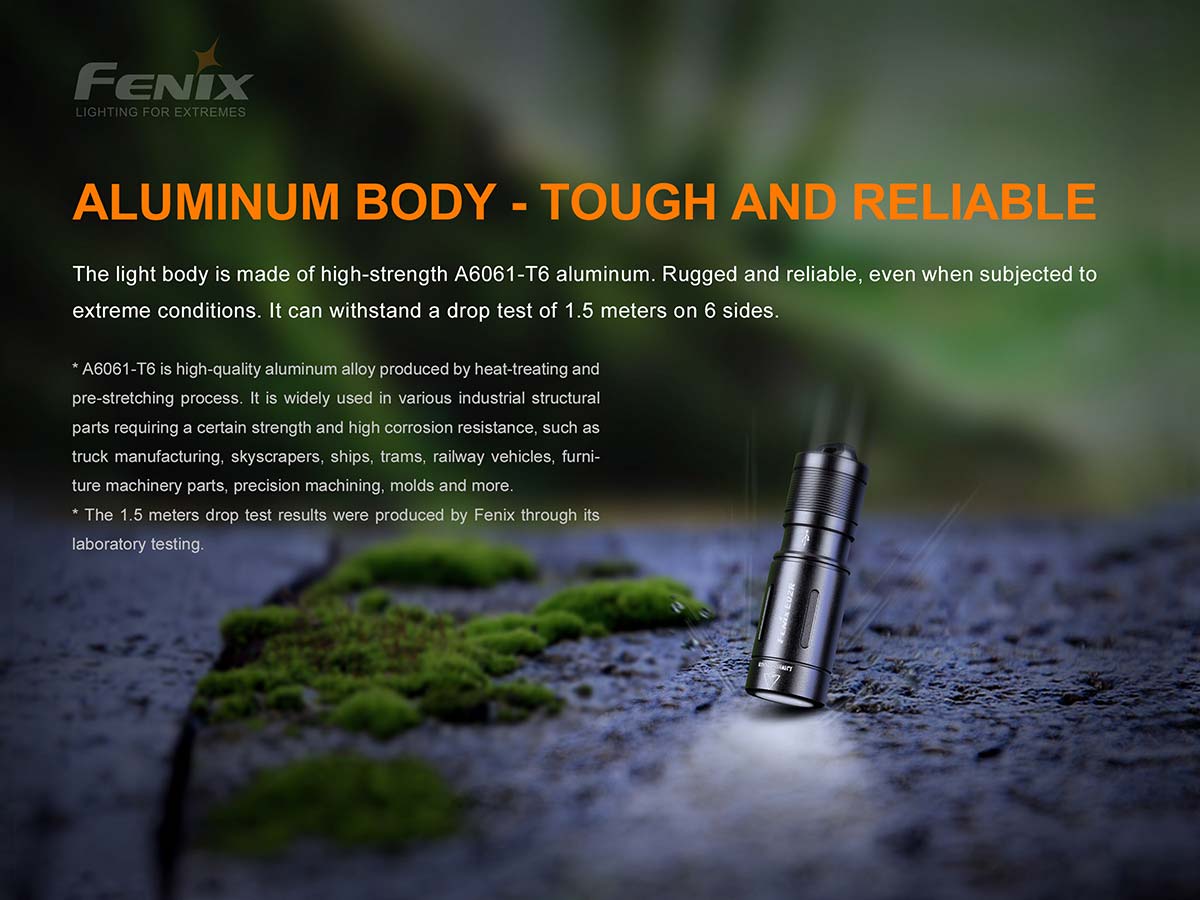

  • Made of durable A6061-T6 aluminum.
  • Premium type HAIII hard-anodized anti-abrasive finish.

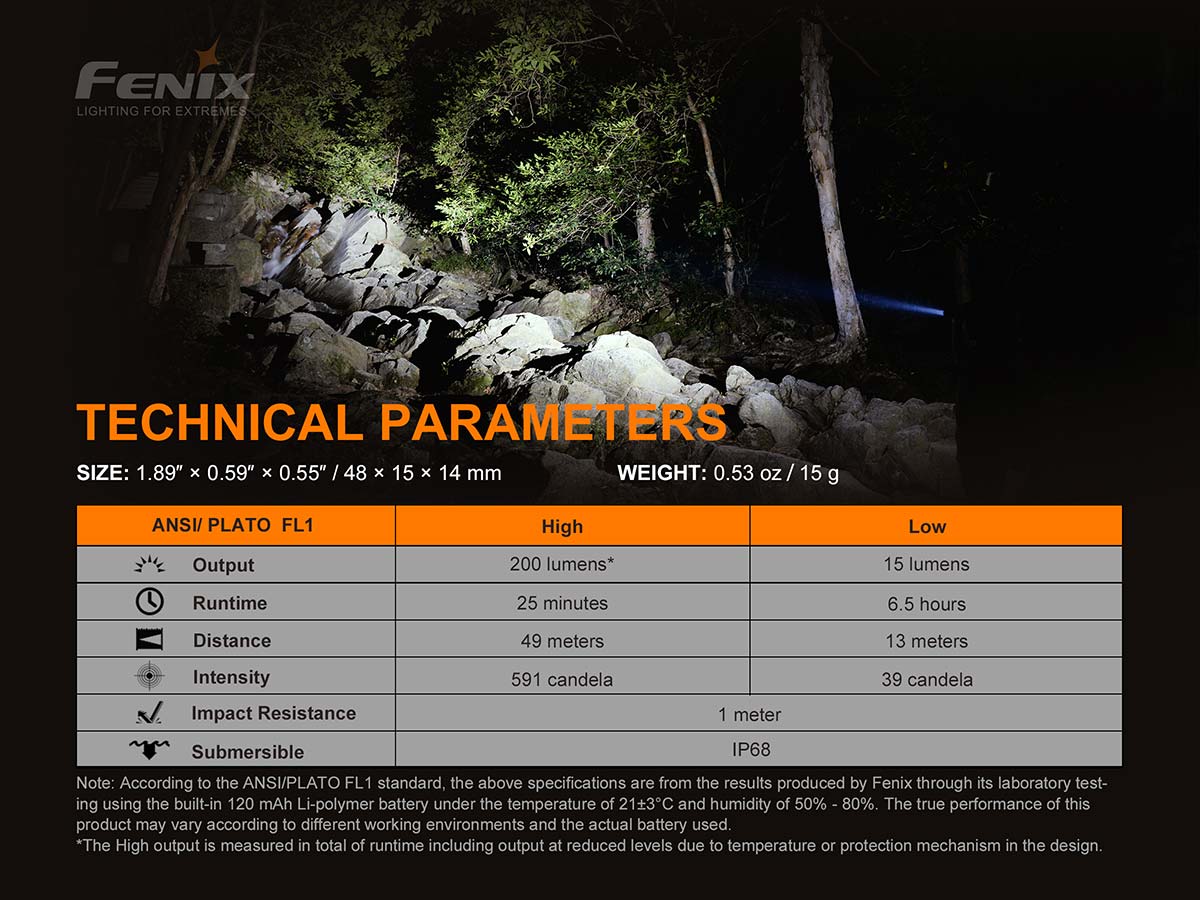

Fenix E02R Rechargeable EDC Flashlight specs chart

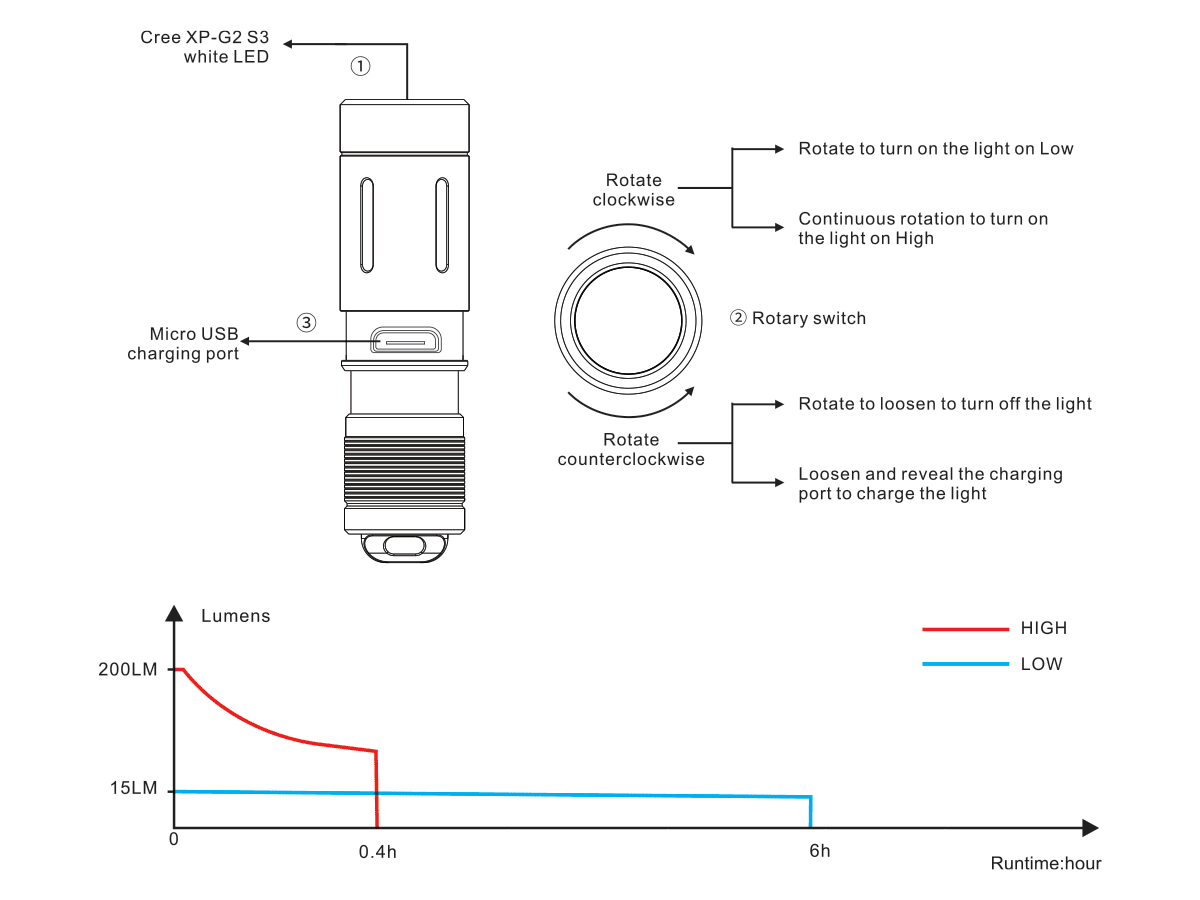

Fenix E02R Rechargeable EDC Flashlight runtime chart


Tighten the light head to turn on the light, loosen the light head to turn off the light.


Output Selection

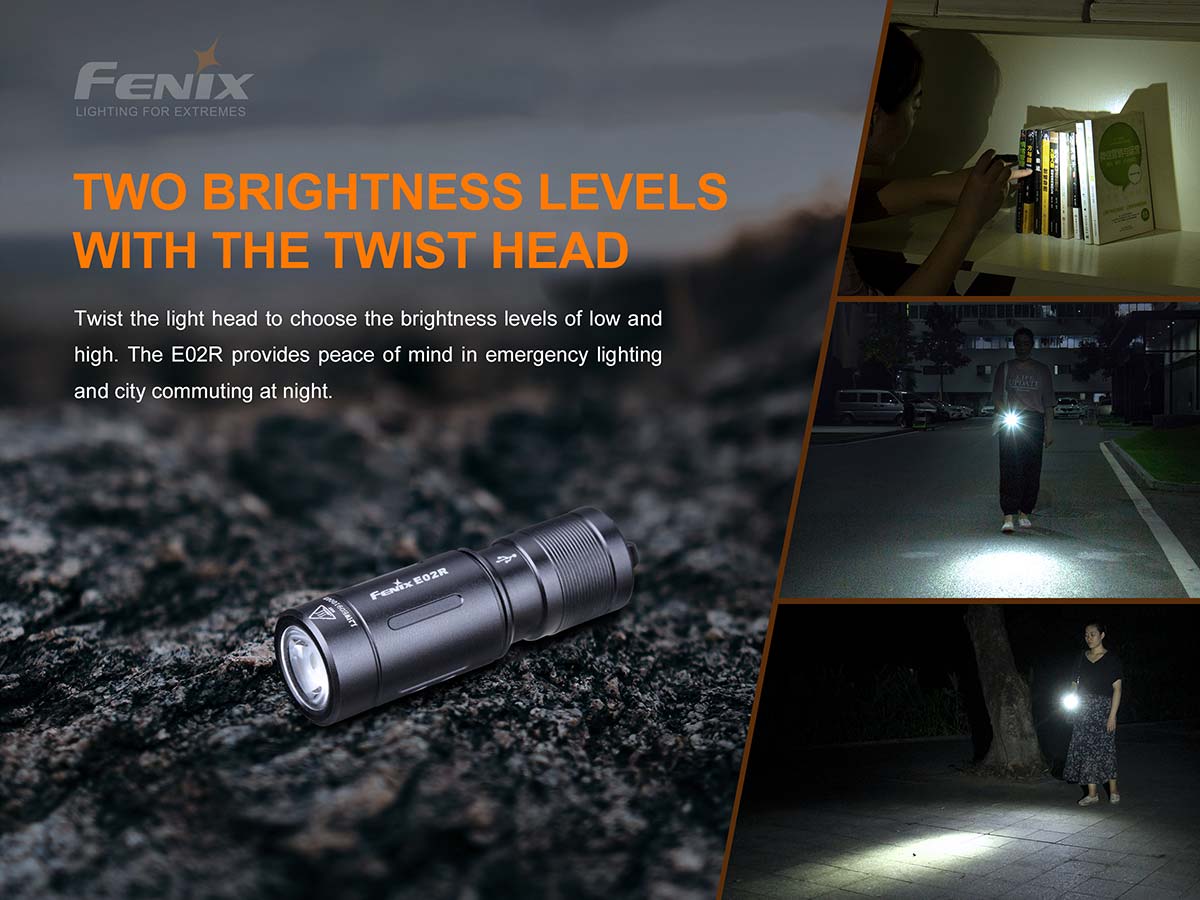

Twist the light head to select brightness level: rotate to turn on the light on Low, continuous rotation to turn on the light on High.

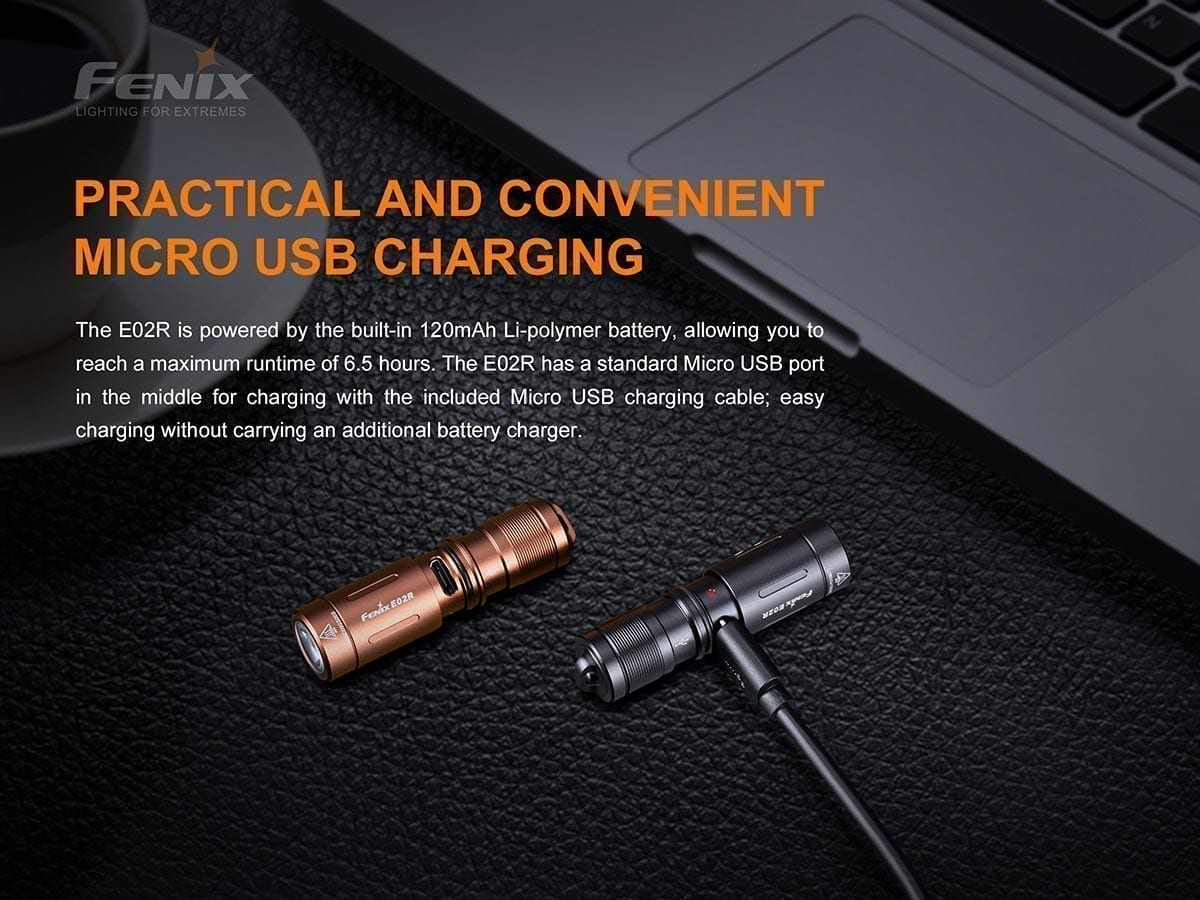

  1. First loosen the light head to reveal the Micro USB charging port and plug the USB A socket of the charging cable into an electrical outlet, then connect the Micro USB socket of the charging cable to the light.
  2. The indicator will display red while charging, and will turn to green when fully charged.
  3. Once charging is completed, be sure to tighten the light head to maintain dustproof and waterproof ability.


  1. Charge the light in time when the battery power gets too low to ensure the normal life of the battery.
  2. The normal charging time is approximately 1 hour from depletion to full charging.
  3. Recharge a stored light every four months to maintain optimum performance of the battery.

Usage and Maintenance

  • Disassembling the sealed head can cause damage to the light and will void the warranty.
  • Loosen the light head to prevent accidental activation during storage or transportation.
  • Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.


  • This flashlight is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the flashlight directly into anyone's eyes.
  • This flashlight will accumulate a lot of heat when used for extended periods, resulting in high temperature of the flashlight shell. Pay attention to safe use to avoid scalding.
  • All information provided in this manual is subject to change without prior notice.

FAQs about E02R Flashlight


Q1. What is the product positioning of E02R? And who are the target customers?

A:The Fenix E02R is a USB rechargeable keychain flashlight. This incredibly small, mini flashlight is powered by the built-in rechargeable Li-polymer battery and delivers a maximum of 200 lumens, throws a maximum beam distance of 49 meters.  A reliable twisty head activates the two brightness levels. Twist the head to access the Micro USB charging port. Made of quality aluminum, completely dustproof and waterproof, this keychain flashlight is perfect for everyday carry.


Q2. What are the key features and benefits of E02R?

A: 1) 200 lumens maximum output.

2) 49 meters maximum beam distance.

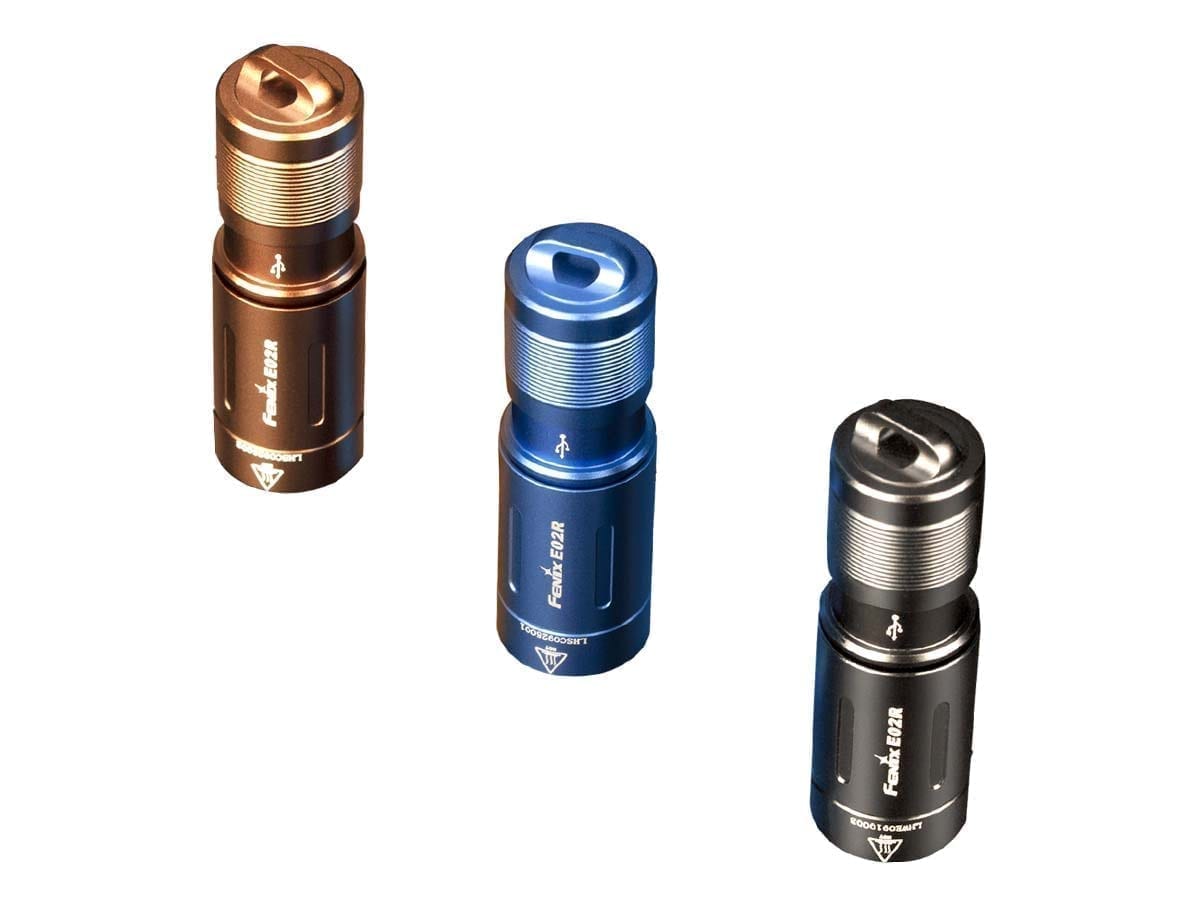

3) Three optional colors.

4) Twisty switch.

5) Micro USB rechargeable.


Q3. What kind of LED is used in E02R?

A: Utilizes Cree XP-G2 S3 white LED, with a lifespan of 50,000 hours


Q4. Does E02R have overheat protection?

A: The light will accumulate a lot of heat when used on High output level for extended periods. To reduce the temperature, the light will automatically step down a few lumens. High output level can be reselected if needed.


Q5. What battery does the E02R support?

A: The light comes with a built-in 120mAh Li-polymer battery; it can't be replaced.  It is recommended that the light does not sit unused for periods over 6 months.


Q6. Is the E02R battery port waterproof?

A.  The light is waterproof so long as the battery port cover is completely tightened.


Q7. What is the warranty service for E02R?

A: Limited lifetime warranty, 2 years free repair.


Q8.  What should I do if the E02R needs repair?

A: 1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.

2. 2-year free repair: Fenix will repair a light free of charge within 2 years of purchase if problems develop with normal use.

3. Lifetime maintenance: If repair is required after 2 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.

4. If you need warranty service, fill out the warranty form at https://www.fenixlighting.com/pages/warranty-repairs to start your repair claim.

Product Videos

Customer Reviews

Based on 44 reviews
time to upgrade this light in 2024

Great light, small, tough, and bright
Two problems:
1. the low mode of 15lm is way tooooo bright. It kills night vision. This needs moonlight.
2. Difficult to find micro-USB cables in certain parts of the world. Time to update it to USB-c.

I believe the manufacturer was still making this with the micro-USB due to the difficulty of putting USB-C into this small of a light. While the E09R is a bit bigger, it has moonlight mode of 3 lumens and USB-C. The E05R is also slightly bigger than the E02R, and while it also has micro-usb, it also has moonlight mode of 3 lumens.

Perfect size

I use every night when hooking my set.
I am a truck driver and need a dependable light.
I have attached to my knife

Tiny but Powerful

So small it is hardly noticeable on my keyring but packs a big punch. Having it comes in handy more often than one might think.

Absolutely Amazing Flashlight!

I love Fenix flashlights and have used them since they first started. They have come such a long way. This flashlight is so bright for its size and I own one for each of my keychains and have given one as a gift to every family member. I couldn’t recommend this light enough!!!

Tiny little thing works pretty good!

Guess I should have looked closer at the measurements of this light when I bought it online. When I opened the box, I was like, "Damn! This thing is LITTLE!" I'm not hating it, I was just surprised. It's going in the cubby in the fairing of my Harley so I have something to use for an emergency. I like that it can be recharged right on my bike with the existing power hookup too. Glad I bought it!!

Great Little Light

No excuse to not have this with you at all times. Small but puts out an amazing amount of light at the high setting (200 lumens) yet still very useful at the low setting (15 lumens). Simple to operate. Claimed run time (haven’t tested it yet) is respectable.
