Fenix CL09 Lantern - DISCONTINUED

$45.00 $34.95

Shipping calculated at checkout.

Color: Black

  • Black
  • Gray

Max Lumens:


16340 or CR123A
View Details

For commercial orders and large purchases, contact us at (888) 775-9996 x6 or GET A QUOTE

WARNING. Be aware of counterfeit Fenix merchandise in the U.S. marketplace. READ MORE >>


Product Overview

Experienced outdoorsman know the struggle to balance the size & weight of their gear versus their performance. The CL09 provides your lighting solution without sacrifice. At 3 inches tall and 1.6 ounces, this ultra compact lantern delivers. With the added bonus of being waterproof and impact-resistant, the CL09 is perfect for the camper or hiker who enjoys their vision more than the mystery of the night.


Max Lumens: 200
Max Beam Distance: 33 feet (10 meters)
Max Runtime: 90 hours
Lighting Modes: 4 brightness levels, red, red flashing, and green
Size: Length: 3.09″ (78.5mm) Diameter: 0.86″ (22mm)
Weight: 1.11 oz. (31.5g) excluding battery
Battery: One 16340 rechargeable battery or CR123A battery

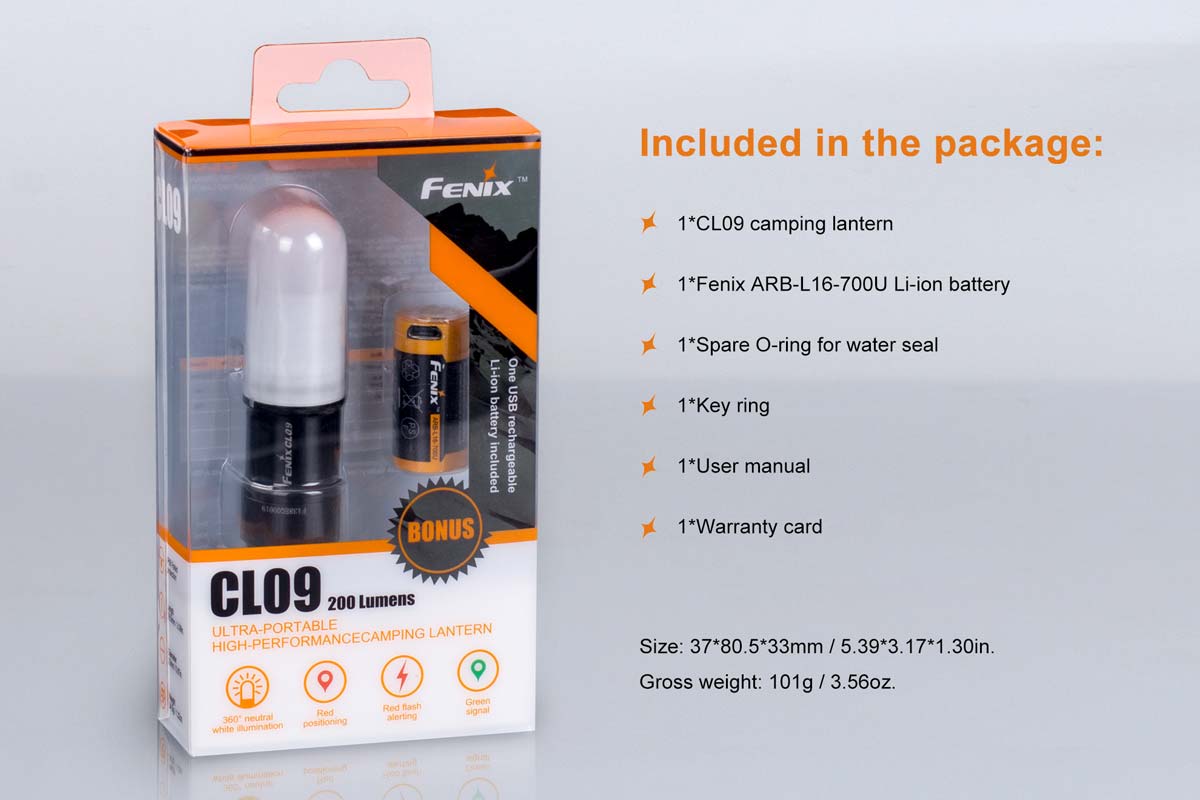

Included: Fenix ARB-L16-700U battery, spare 0-ring for water seal, key ring
Warranty: Limited Lifetime Guarantee from Fenix Lighting USA

More Information

Additional Features of the Fenix CL09

  • Three lighting sources of neutral white, red and green
  • Powered by one ARB-L16-700U, 16340 or CR123A battery
  • 5mm Length x 22mm Diameter
  • 5 grams (excluding battery and other accessories)
  • 360° illumination
  • The lantern tail features a magnet and a hanging loop
  • IP68 rating, underwater 2m for 30 minutes/dust proof
  • Reverse polarity protection, to protect from improper battery insertion
  • Made of durable aircraft-grade aluminum and optical grade PC materials
  • Premium type III hard-anodized anti-abrasive finish
Fenix CL09 Lantern - DISCONTINUED specs chart

Operating Instruction


Tighten the lantern tail to turn on the lantern. Loosen to turn off the lantern.


Output Selection

To change output level while the lantern is switched on, turn it off and back on again within one second. Lantern will cycle through Low→Med→High→Turbo→Red→Red Flash→Green.


Note: the lantern is not equipped with a memory function. If more than one second elapses after being switched off, it will default to Low mode when switched on again.


Battery Replacement

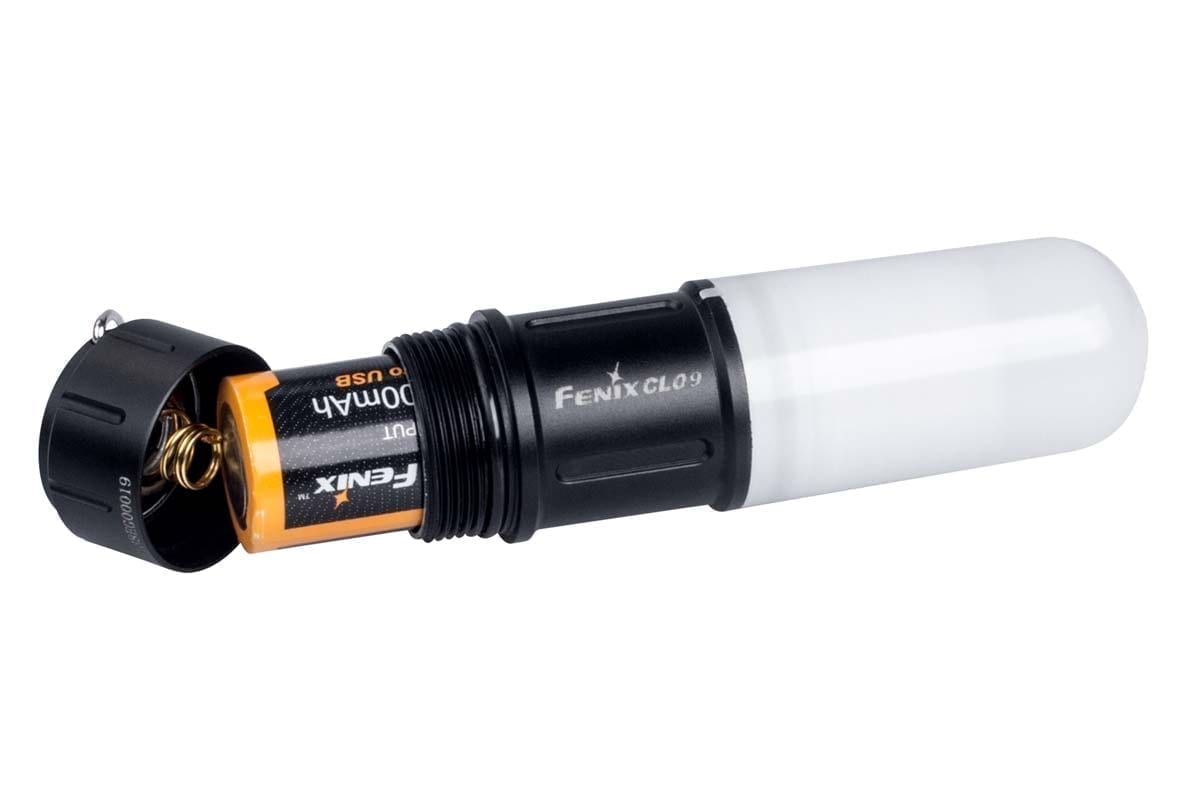

Unscrew the tail cap to insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.


Charging of Fenix ARB-L16-700U

  1. Unscrew the lamp cap , take out the battery, plunge the charging cable into the battery built-in micro USB port. Or charge the battery in a charger.
  2. When charging via micro USB port, the charging indicator turns red, and blue when fully charged.
  3. When fully charged, disconnect the charging cable or remove the battery from the charger, and insert the battery with the anode side (+) towards the lamp head, then screw the tail cap back on.
  4. Recharge a stored battery every four months to maintain optimum performance of the battery.

No FAQs available.

Customer Reviews

Based on 52 reviews
Simply Functional

The simple interface really makes these lights so good. Just twist on and off and switch through different levels and colors. The rechargeable battery that comes with makes it so usable, you don't have to worry about stocking Cr123s but still get all the output. I think I've had the loop pop off before but it went back in easily and with some bending with pliers, has stayed in place. The magnet isn't as strong as say the HM61R, but also it weighs less. Maybe a longer time to turn the light back on to switch modes, but it's hard to improve other than that. I would love to see a version that uses AA form factor or a regular flashlight version of this, the brightness levels and waterproof durability really make this light my go to over bigger lanterns that Fenix offers. Hopefully with it being discontinued, Fenix is taking it back to refine it even more.

Great little lantern

Great little lantern to keep in your bag or glove compartment. Only complaint is the on/off switch.

Philip Raab

Little Big Lantern...Incredible, Pricey, But...You Get what you Paid for !!

Matty Scalera

Awesome, high quality!!

Geoffrey Smith

Beware of hanging from wire hanger, mine became detached and I lost the light overboard. Otherwise a great little light.

David Hester

This is a great light. The size and weight, along with the range of brightness settings, covers all my needs. Just be sure to keep track of it. It is easy to loose...this is my second one. I expect to find my first one some day, but I could not be without this light in my kit.
