Operating Instructions

Modes and Outputs

• Mode A: Floodlight mode, stepless brightness and color temperature regulation.
• Mode B: Spotlight mode, stepless brightness regulation.
• Mode C: Spot-and floodlight mode, stepless brightness and color temperature regulation.
• Mode D: Warning mode, D1: Red constant-on; D2: Red flash; D3: Red chase; D4: Yellow flash; D5: Green constant-on.

Mode Switching

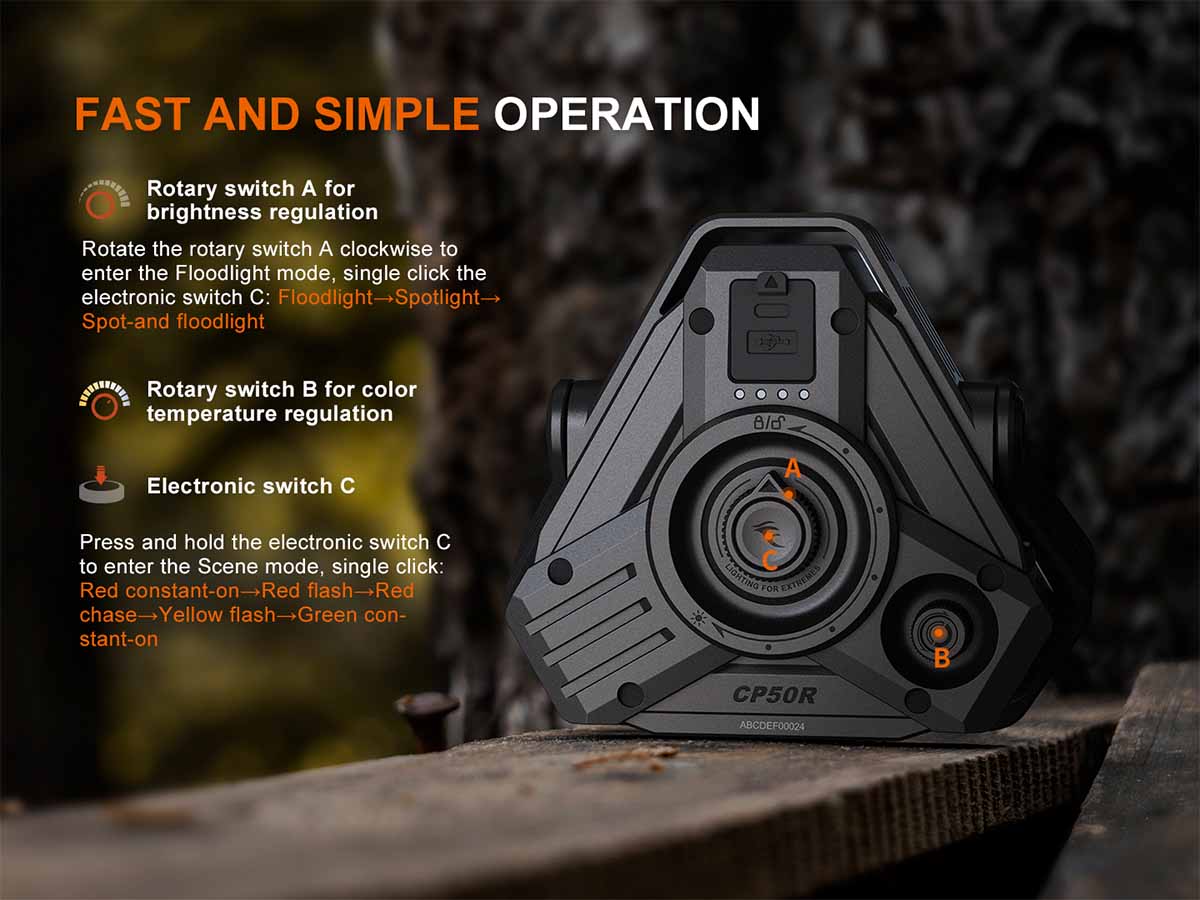

• With the lantern turned off, rotate the large rotary switch clockwise to enter Mode A. Single click the electronic switch to cycle through Mode A→Mode B→Mode C.
• In Mode D, rotate the large rotary switch to enter Mode A.
• In Modes A, B, or C, it is not possible to shift to Mode D.
• With the lantern turned off, press and hold the electronic switch for 0.5 seconds to enter Mode D. Single click the electronic switch to cycle through D1→D2→D3→D4→D5, and press and hold the electronic switch for 0.5 seconds to turn off the lantern.

Output Selection and Light Color Adjustment

• In Modes A, B, or C, rotate the large rotary switch clockwise to change the brightness from low to high and rotate it counterclockwise to change the brightness from high to low. Rotate it to the counterclockwise stop to turn off the lantern.
• In Modes A and C, rotate the small rotary switch clockwise to change the color temperature from cold to warm and rotate it counterclockwise to change the color temperature from warm to cold.

Intelligent Memory Circuit

The lantern automatically memorizes the previously used mode, excluding the Warning mode. When turned on again, the previously used mode will be recalled.

The lantern automatically memorizes the previously used output of the Warning mode.

When turned on again in Warning mode, the previously used output of the Warning mode will be recalled.

The lantern memorizes the last selected color temperature of Floodlight mode. When turned on again in Floodlight mode, the previously selected color temperature will be recalled.

Note:

• The lantern doesn’t memorize the last selected brightness level. When turned on again, the lantern will activate on the Low output.
• If the small rotary switch is rotated after the lantern is turned off, then the lantern will not recall the previously selected color temperature when turned on again.

Battery Specifications

Warning:

*21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Using low-quality batteries or mishandling batteries (such as short-circuiting or overheating) could lead to combustion and jeopardize the safety of users and property. Any adverse effects resulting from the use of low-quality batteries are not covered by any Fenix warranty or liability. Using quality batteries with circuit protection will reduce the potential for combustion or explosion.

Battery Replacement

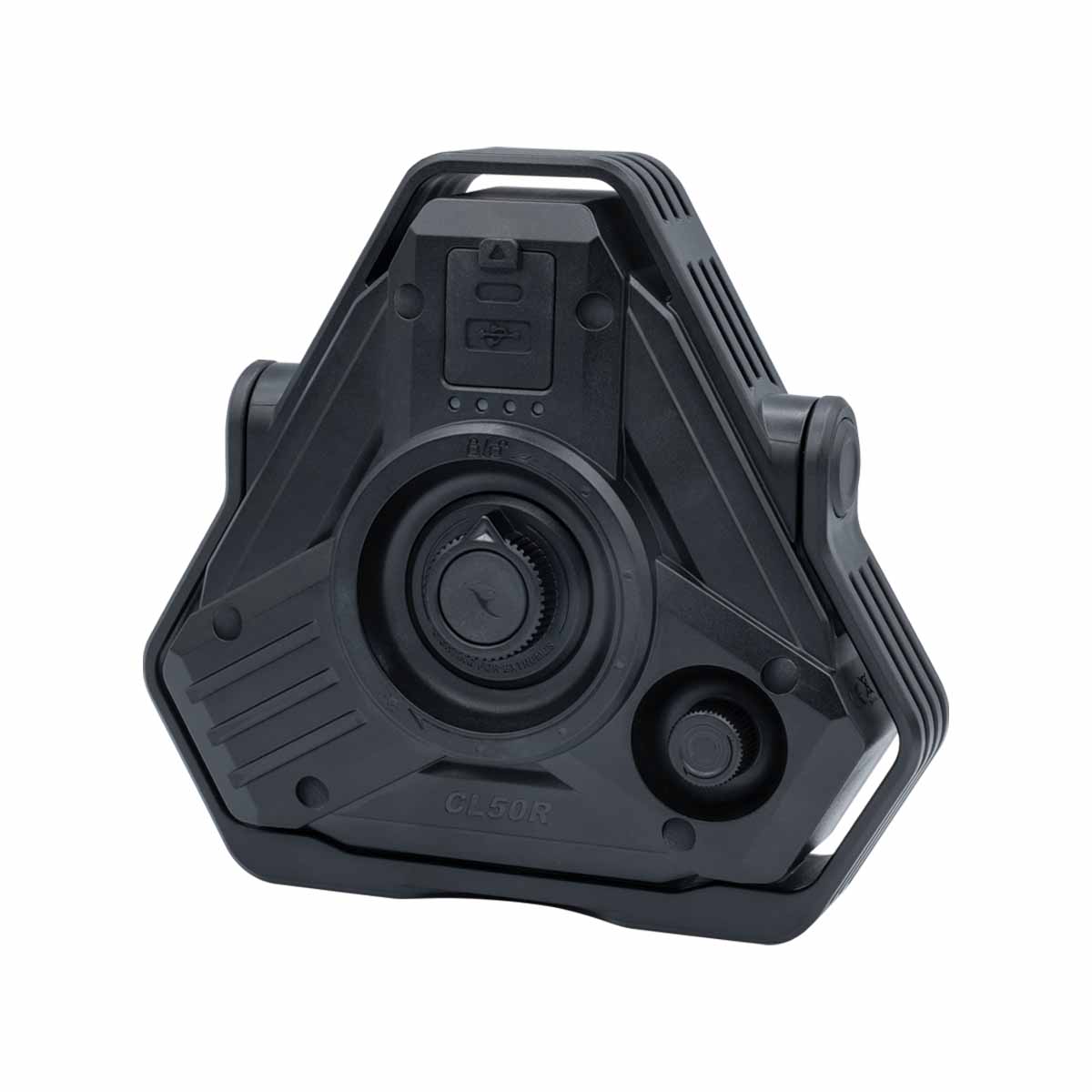

Pull up the pulling ring at the lantern bottom and unscrew it counterclockwise to open the battery cover. Insert the batteries with the cathode side (-) towards the inside, then screw the battery cover back on.

Charging

1. Open the anti-dust cover and connect the USB Type-C end of the charging cable to the lantern.
2. When charging, the battery level indicators will flash from left to right to display the charging status.
3. The four indicators will be constant-on after charging is completed.

Note:

• When charging, the maximum brightness level of the lantern is 500 lumens.
• With the lantern turned off, the normal charging time is at least approximately 3 hours from depleted to fully charged with a maximum charging power of 18 W.
• Once charging is completed, be sure to unplug the charging cable and close the anti-dust cover.

Power Bank Function

• Open the anti-dust cover and connect the USB-C end or the USB-A end of the charging cable to the light.
• When discharging, the battery level indicators will flash from right to left to display the discharging status.
• When the battery level is lower than 3 V, the lantern will automatically stop discharging.

Note:

• The lantern can be operated while discharging.
• Fast charging protocols supported include: USB-C: PD3.0/PD2.0/QC3.0/QC2.0; USB-A: QC3.0/QC2.0.
• Discharge performance: If the discharge output is 5 V, then the maximum discharge current is 3 A; if the discharge output is 9 V, then the maximum discharge current is 2 A; if the discharge output is 12 V, then the maximum discharge current is 1.5 A.
• The USB-A and USB-C ports can discharge simultaneously.
• The USB-A port cannot discharge while the lantern is being recharged via the USB-C port.

Battery Level Indication

With the lantern turned off, single click the electronic switch to check the battery status, the indicator(s) will last for 3 seconds.

Each time the lantern is turned on, the indicator(s) will show the current battery level and will last for 3 seconds.

• Four lights on: 100% - 80%
• Three lights on: 80% - 60%
• Two lights on: 60% - 40%
• One light on: 40% - 20%
• One light flashes: 20% - 1%

Intelligent Overheat Protection

The lantern will accumulate a lot of heat when used for extended periods. When the lantern reaches a temperature of 54°C/129.2°F or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 54°C/129.2°F, the lantern will gradually recall the preset output level.

Low-voltage Warning

When the voltage level drops below the preset level, one battery level indicator blinks to remind users to recharge or replace the batteries in a timely manner. To ensure normal use, the lantern will not turn off automatically and will work till the battery level runs out.

Usage and Maintenance

• Disassembling the sealed parts of the lantern can cause damage to the lantern and will void the warranty.
• Fenix recommends using excellent quality batteries.
• If the lantern will not be used for an extended period, remove the batteries, or the lantern could be damaged by electrolyte leakage.
• Recharge a stored lantern every three months to maintain optimum performance of the batteries.

• The lantern may flicker, shine intermittently or even fail to illuminate for the following reasons:

  A: Poor battery level.

  Solution: Recharge or replace the batteries.

  B: The contact or contact point of the batteries or lantern is dirty.

  Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact the distributor.

Warning

• Do NOT place this lantern in the reach of children!
• Do NOT shine the lantern directly into the eyes of anyone!
• Do NOT place the lantern near flammable objects, high temperatures can cause objects to overheat and become flammable/ignite!
• Do NOT use the lantern in inappropriate ways such as holding the unit in your mouth, doing so could cause serious personal injury or death if the lantern or internal batteries fail!
• This lantern will accumulate a significant amount of heat while operating, resulting in a high temperature of the lantern shell. Pay close attention to avoid burns.
• Remove the batteries to prevent accidental activation when the lantern is placed in a closed and flammable environment such as pockets and backpacks!
• The LEDs of this lantern are not replaceable; so the whole lantern will need to be replaced when any one of the LEDs reaches the end of its lifespan.

What kind of LEDs are used in CP50R? Does Fenix offer to replace LED?

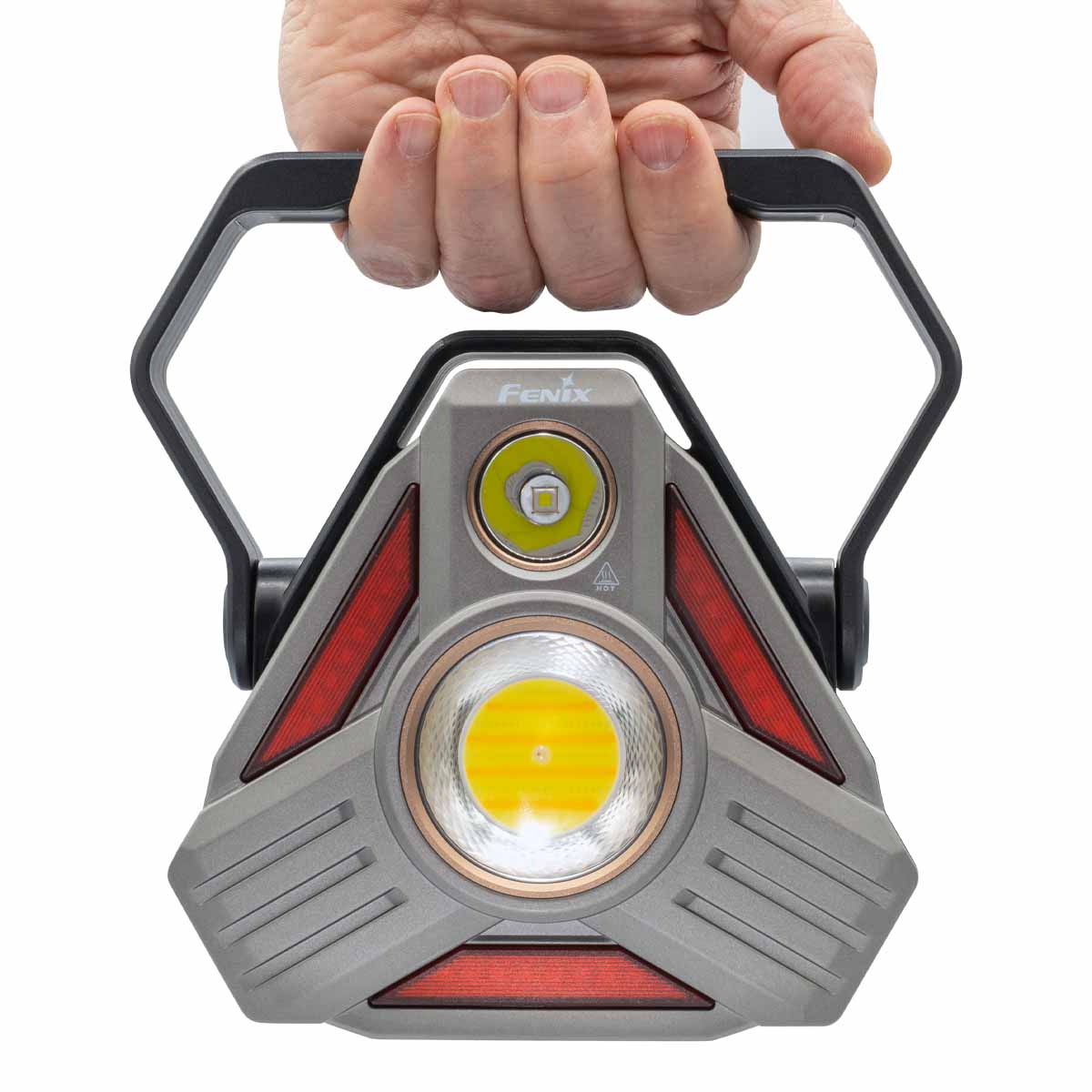

A: It uses one four-color COB light strip, twenty-four 3014 red LEDs, and one Luminus SFT70 LED; with a lifespan of 50,000 hours each.

* Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.

What kind of battery can be used in CP50R?

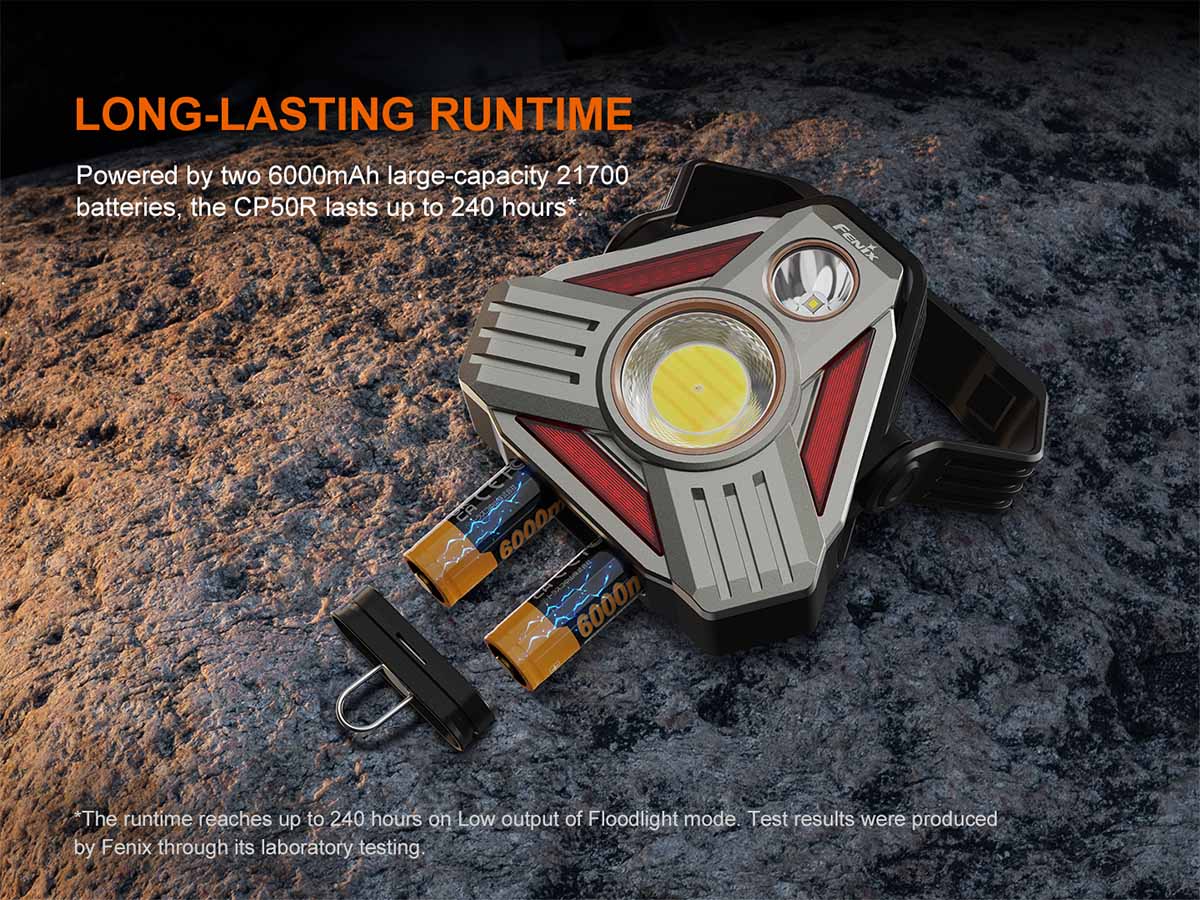

A: It is recommended to use two included Fenix ARB-L21-6000 batteries. Other Fenix ARB-L21 series batteries are also usable.

What is the color temperature of CP50R?

A: The Spotlight has a fixed color temperature of 6500K. Only the Floodlight and Spot-and floodlight offer adjustable color temperature, ranging from 2700K to 6500K.

*Only the Floodlight's color temperature is adjustable in the Spot-and floodlight mode.

What are the working voltage and working current of CP50R?

A: Working current: 30mA-20A. Working voltage: 3.0 - 4.2 V.

Is CP50R rechargeable? How long is the charging time?

A: Yes, CP50R is rechargeable with a USB Type-C port. The maximum charging power is 22.5 W. With the lantern turned off, the normal charging time of the two included ARB-L21-6000 batteries is at least 3 hours from depleted to fully charged.

How to prevent accidentally activate the CP50R?

A: Remove the batteries to prevent accidental activation before placing the lantern in a closed and flammable environment such as pockets and backpacks.

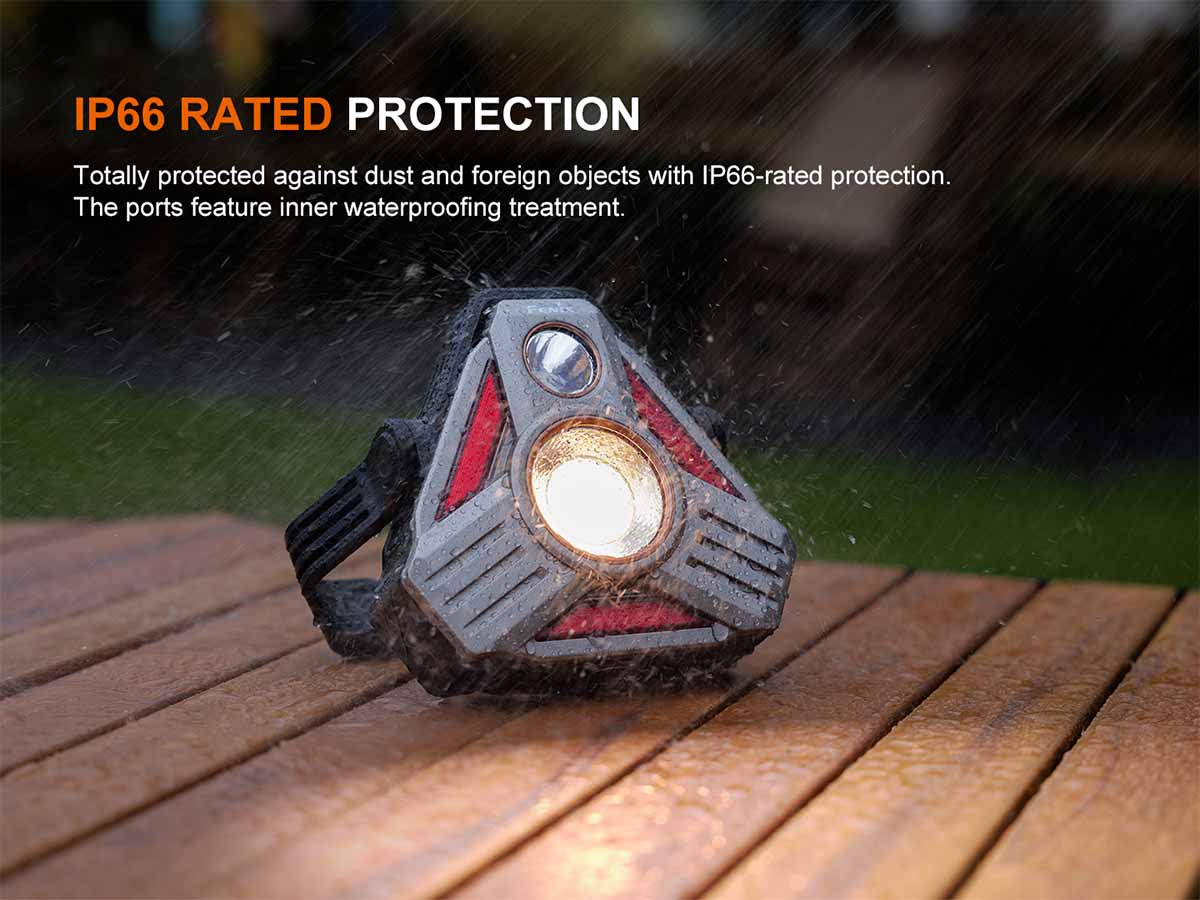

Is the CP50R still waterproof if the anti-dust cover is left open?

A: Yes. The CP50R’s ports feature inner waterproof treatment. However, users are advised to securely close the anti-dust cap when using the lantern.

Why does the CP50R downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons:

1. Intelligent Overheat Protection

   The lantern will accumulate a lot of heat when used at high output levels for extended periods. When the lantern reaches a temperature of 54°C/129.2°F or above, the lantern will automatically step down a few lumens to reduce the temperature. When the temperature drops below 54°C/129.2°F, the lantern will gradually recall the preset output level.



2. Low-voltage Warning

   When the voltage level drops below the preset level, one battery level indicator blinks to remind users to recharge or replace the batteries in a timely manner. To ensure normal use, the lantern will not turn off automatically and will work till the battery runs out.

Why does the CP50R happen to flicker?

A: The reasons that may cause the lantern to flicker, shine intermittently or even fail to illuminate:

1. Poor battery level.

   Solution: Recharge or replace the batteries.

2. The contact or contact point of the battery or lantern is dirty.

   Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

* If the above methods don't work, please contact your authorized distributor.

What should I do when the CP50R needs repair?

• 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.
• 5-year free repair: Fenix will repair a light free of charge within 5 years (rechargeable battery and other accessories: 1 year) of purchase if problems develop with normal use.
• Lifetime limited warranty: If repair is required after 5 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.
• Warranty certificate: Please keep the warranty card in contacting the authorized distributors for after-sale maintenance, Fenix will provide service support to the distributors.
